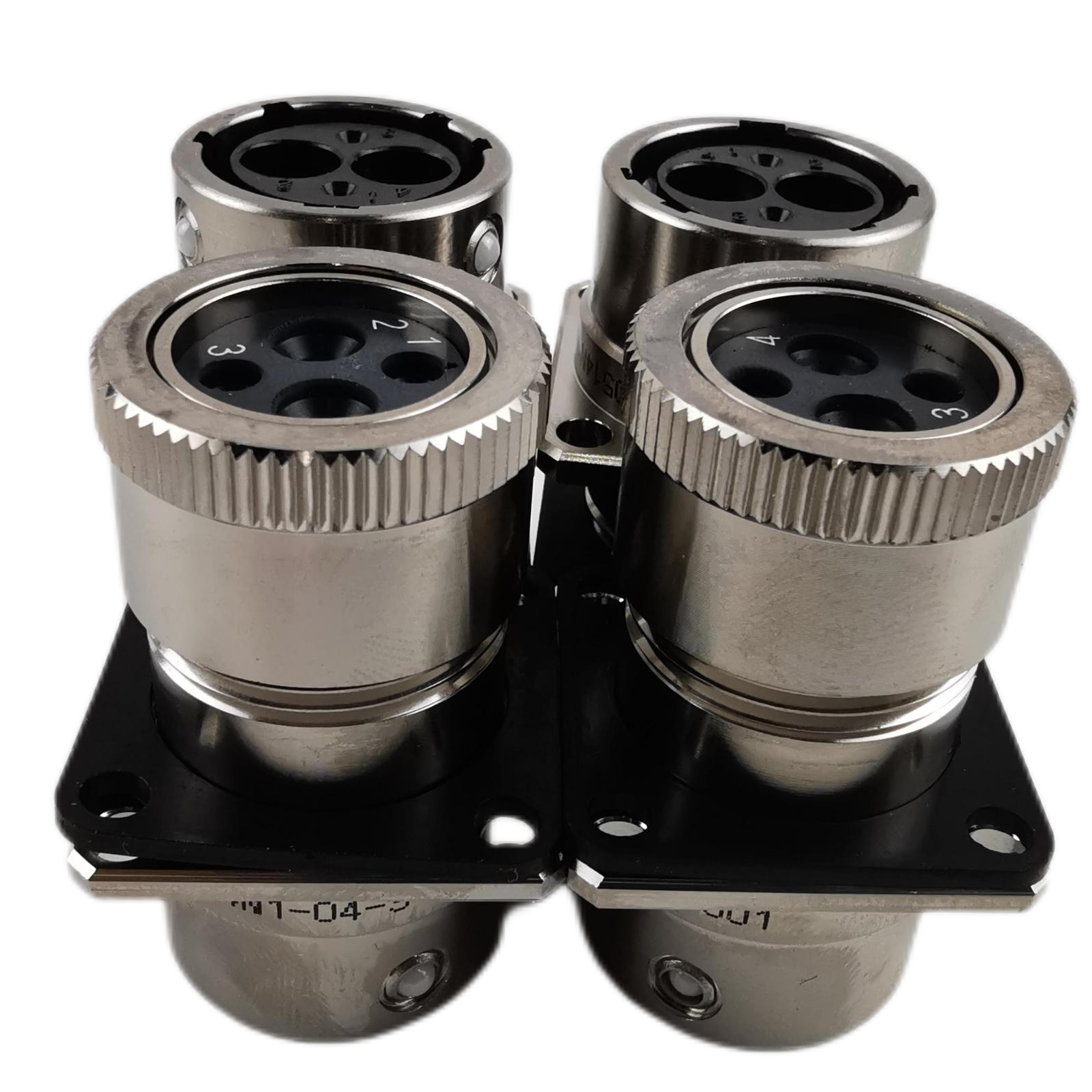

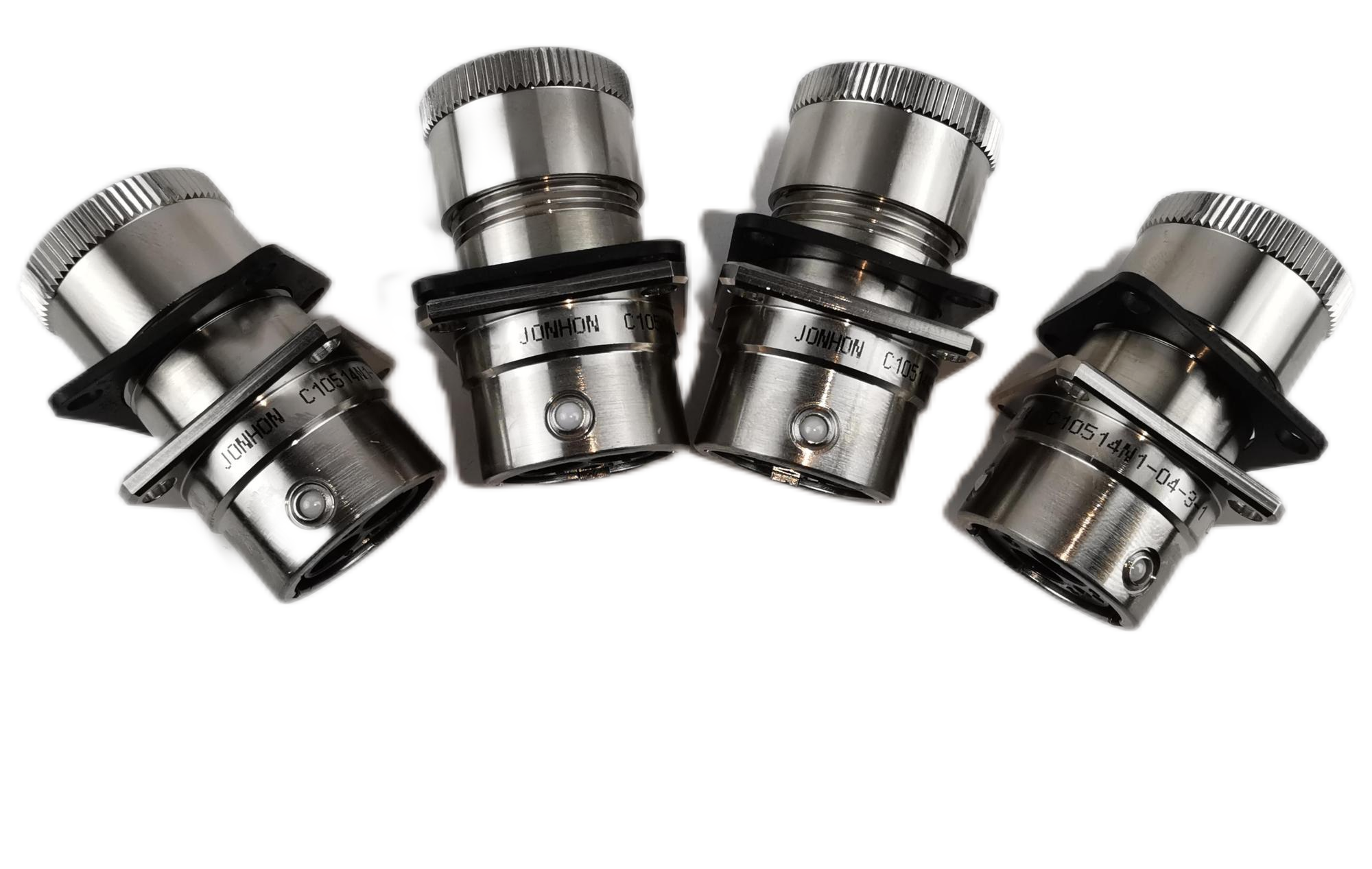

JONHON Metal Connector C10514N1-04-3-1 G001 Metal Connector


                            Modle


Paramenter name

JONHON-C10514N1-04-1-2

JONHON-C10514N1-04-3-1

JONHON-C10514N1-04-4-1

Contact resistance

≤0.75mΩ(Φ3)；≤5mΩ(20#)；

Rated current

Jack unit 40A;
Crimp pin 7A.

Insulation voltage

≥5000 MΩ（Room temperature）
          ≥50   MΩ（Sticky）

Operating voltage

600V AC

Withstand voltage

2500VAC Room temperature, 400VAC

Mechanical life

500次
500 times

Workplace Temperature

（-40℃～+85℃）

Vibration

10～2000Hz,ccelerated speed 196m/s2

Impact

Acceleration 980m/s2 (half sine wave)

Contact

Nesting parts materials

Aldary

Manufacturing technique

Machine work

Parts material

Gold plating

Housing element

Surface treatment

Aluminum alloy

Manufacturing technique

Machine work

Surface treatment

Nickel plating

Insulator

Parts material

Thermoplast

Manufacturing technique

Injection moulding

Elastic part

Parts material

Stainless steel

Manufacturing technique

Winding
