Product Detai Referenc
|

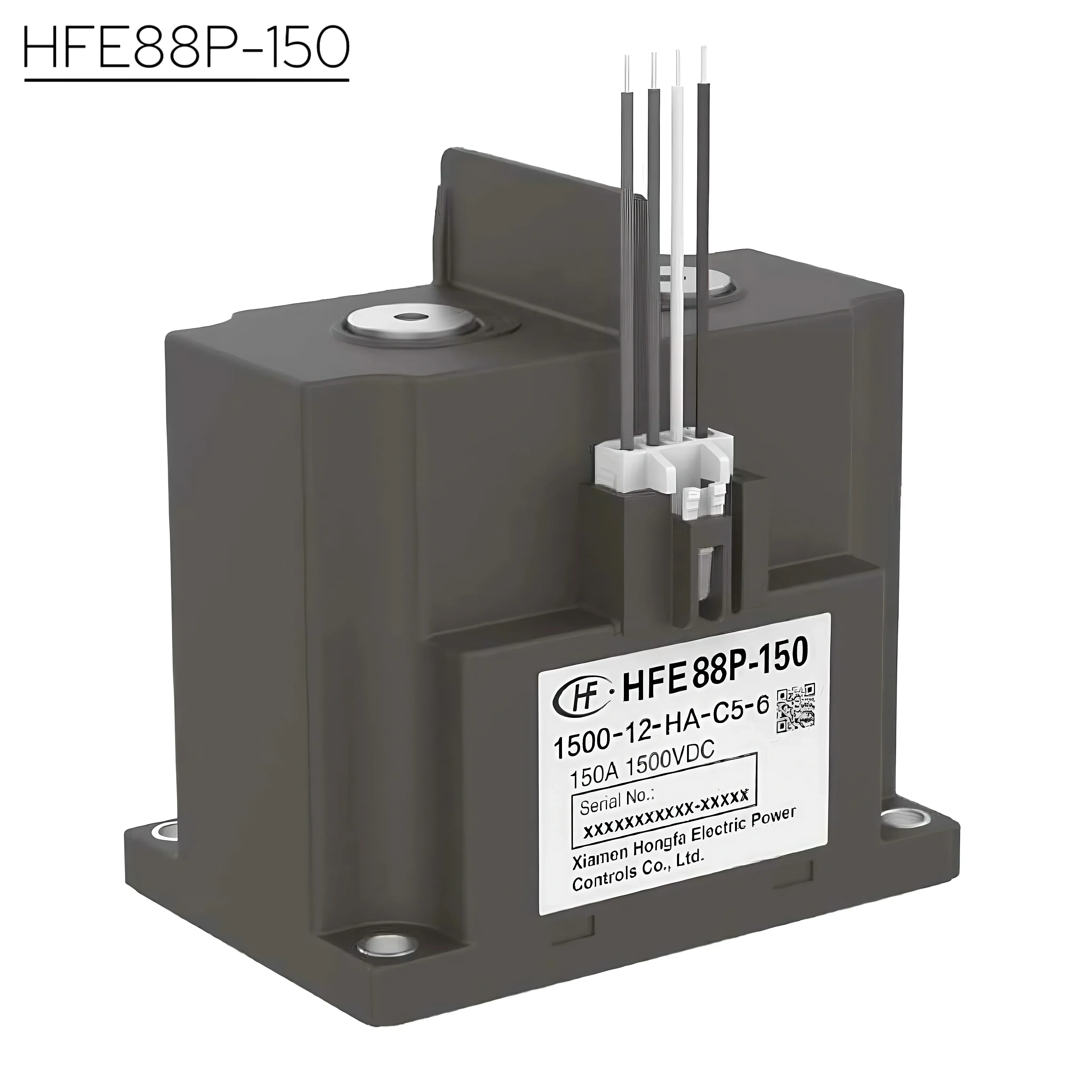

HFE88P-150 |

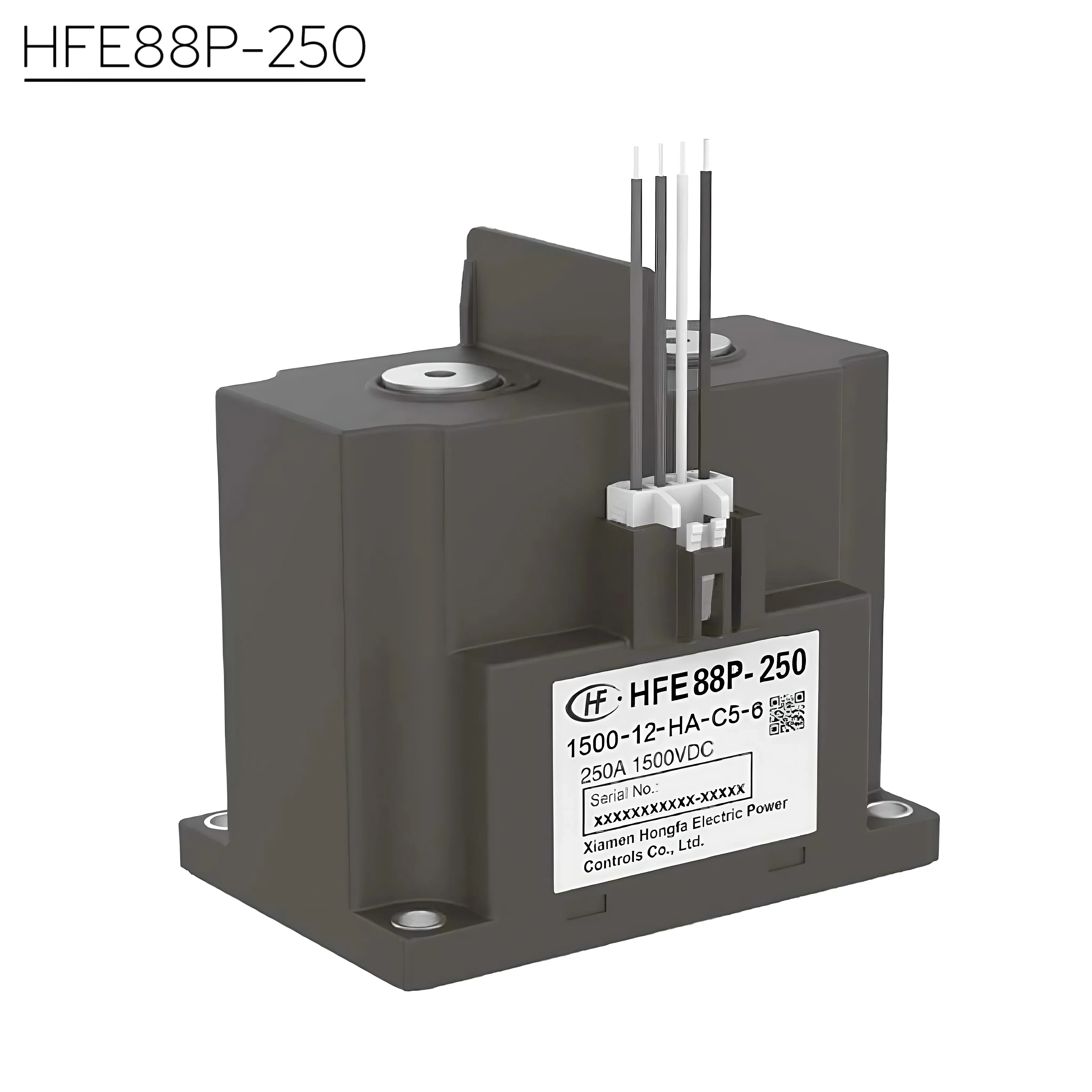

HFE88P-250 |

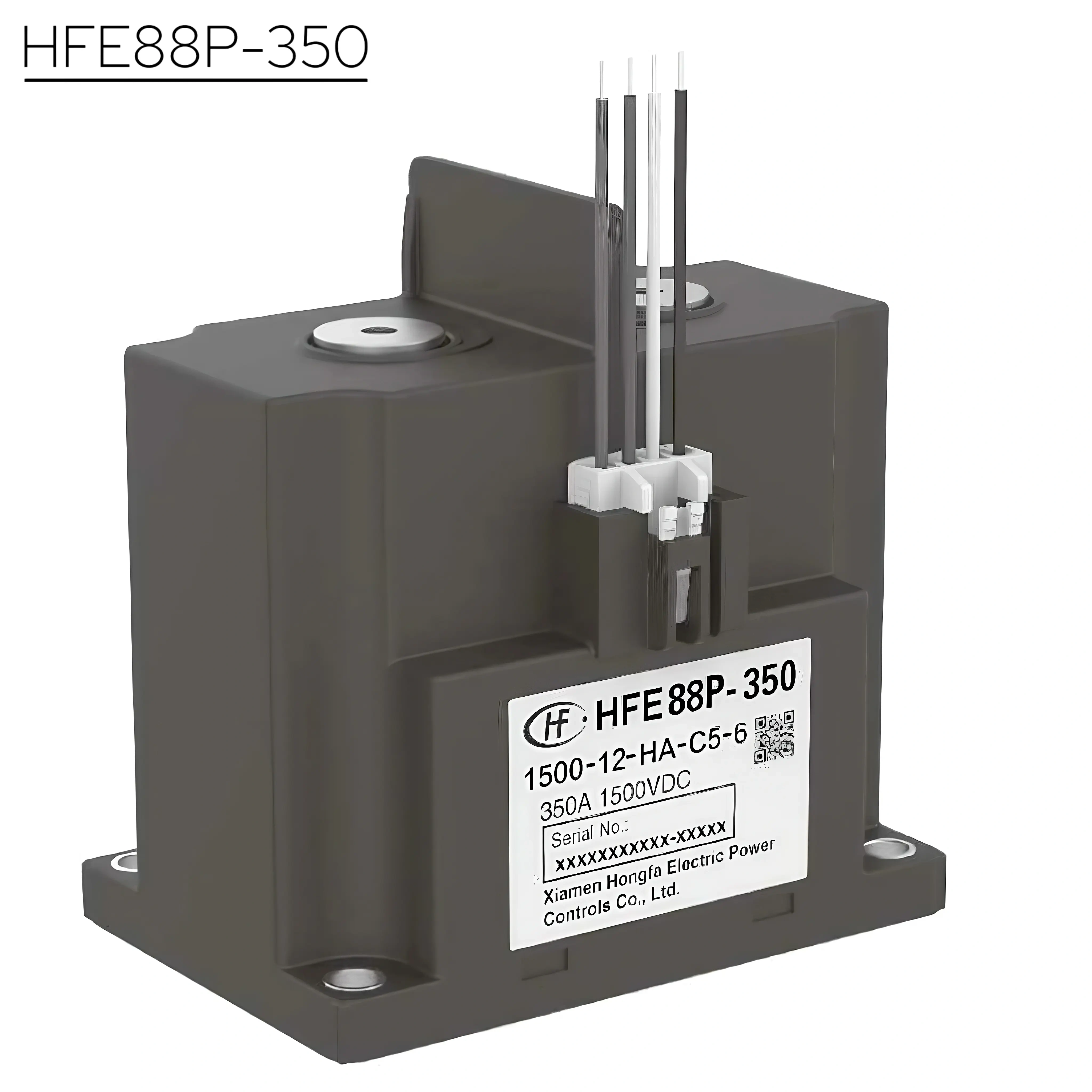

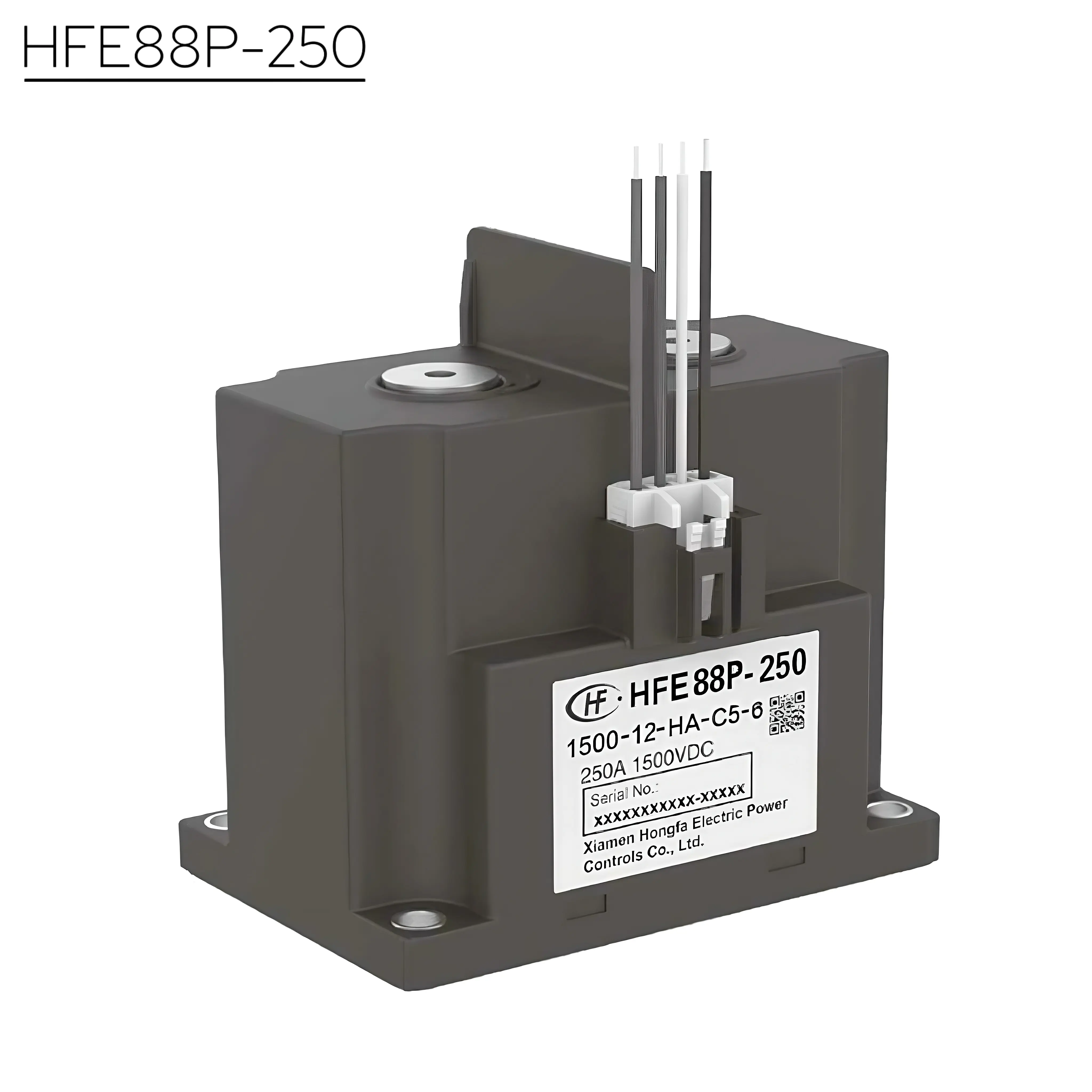

HFE88P-350 |
|
||
Rated current |
150A |
250A |
350A |
|||
Rated voltage |
DC12~1500V |
|||||
Insulation voltage |
≥100MΩ DC1000V |
|||||
Number of poles |
Single pole |
|||||
Type of circuit |
DC |
|||||
Mechanical life |
200,000 times |
|||||
Electrical endurance |
Breaking |
Swithing |
||||
2000ops |
||||||
1000ops |
1000ops |
1000ops |
||||
1ops |
6000ops |
6000ops |
||||
Maximum breaking current |
1000A(1500 VDC) 1op |
1500A(1000 VDC) 1op |
2000A(1000 VDC)1op |
|||
Operate time (at rated volt.) |
≤30ms |
|||||
Release time (at rated volt.) |
≤10ms |
|||||
Withstand voltage |
Between coil & contacts |
4000 VAC 1min |
||||
Between open contacts |
4000 VAC 1min |
|||||
Between contacts & |
4000 VAC 1min |
|||||
Rated control voltage Uc |
Rated control voltage:DC12V/24V |
|||||
Max. switching power |
300kW |
500kW |
700kW |
|||
Max. switching voltage |
1500 VDC |
|||||
Workplace Temperature |
(-40℃~+85℃) |
|||||
Shock |
Functional |
196m/s2 |
||||
Destructive |
490m/s2 |
|||||

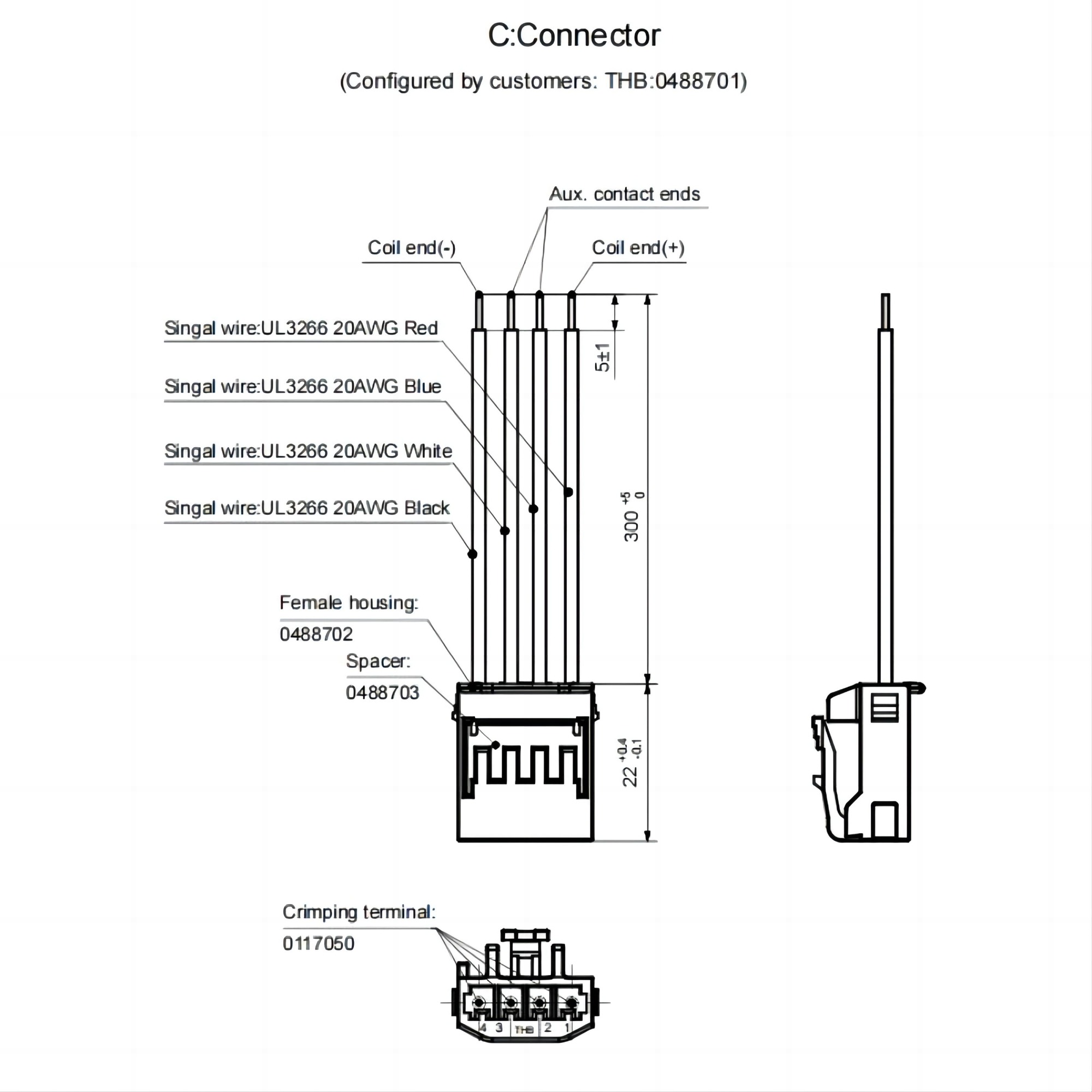

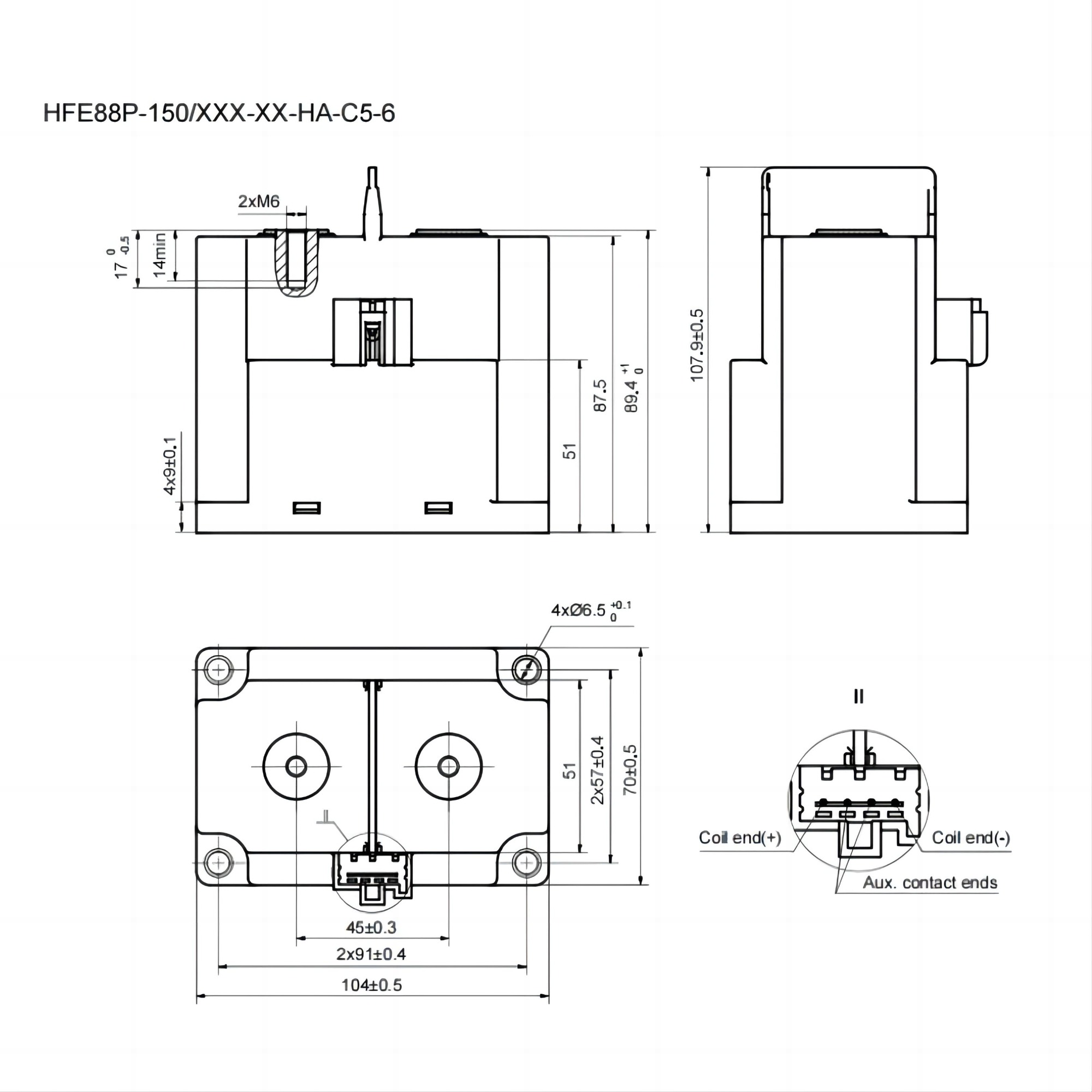

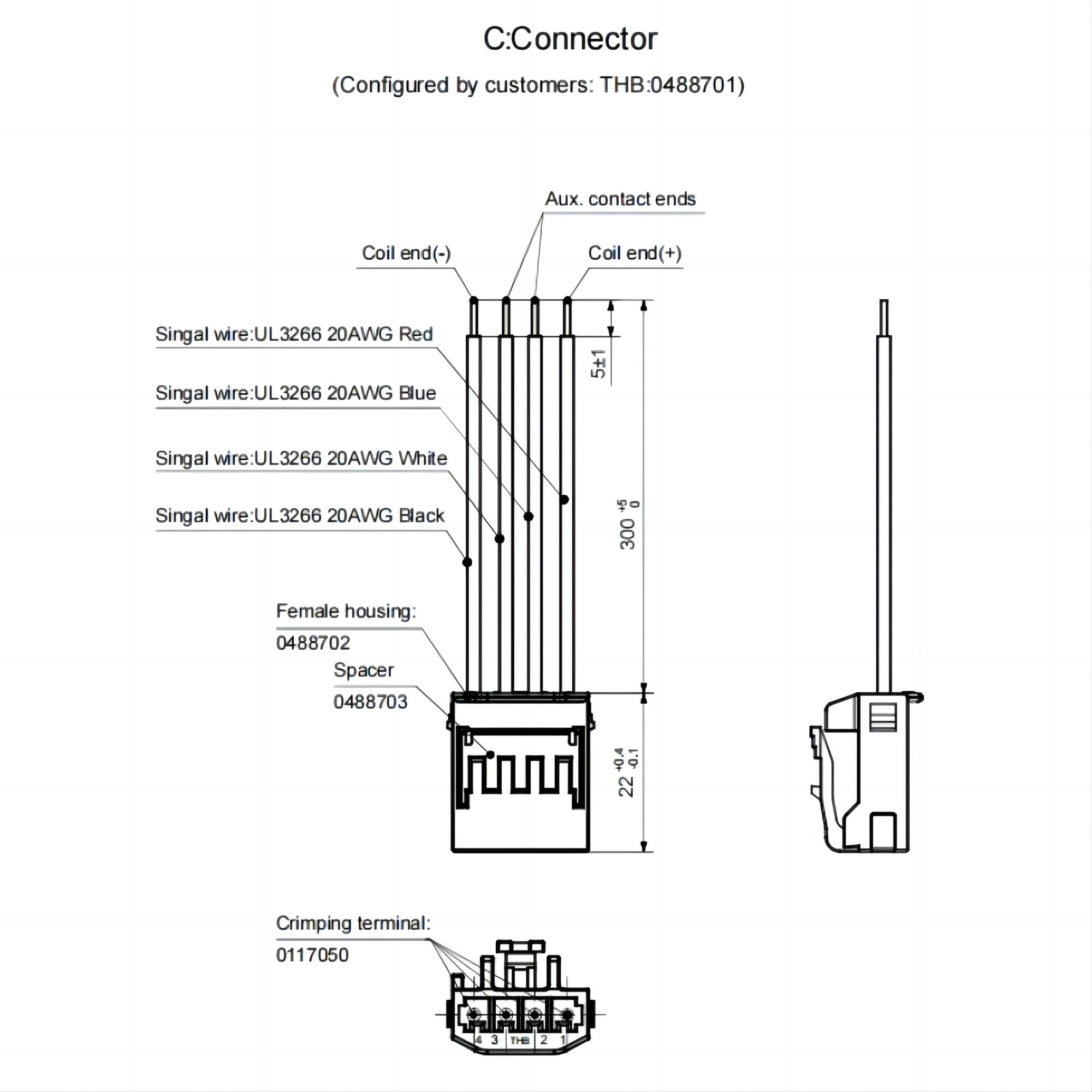

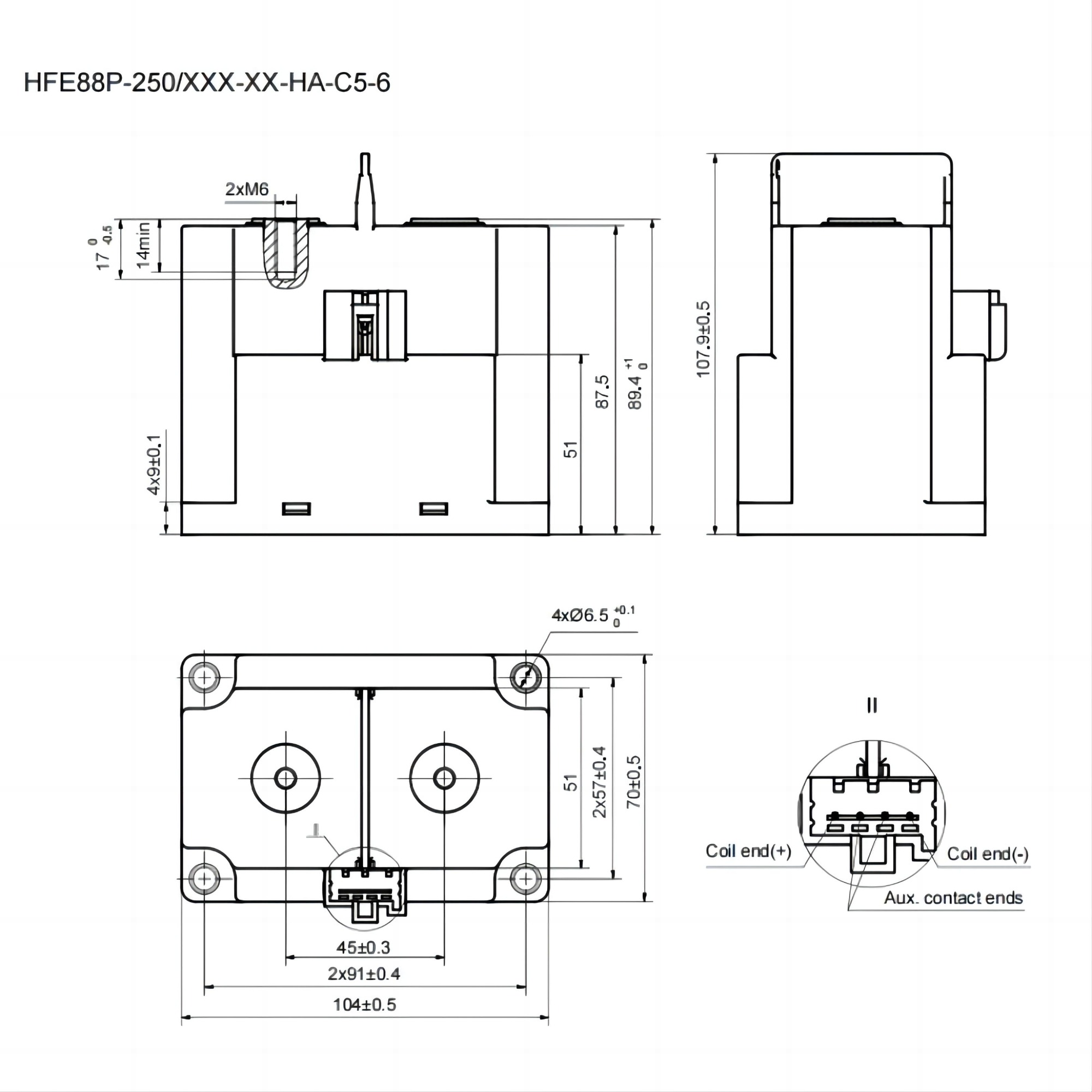

Product Dimension Drawing
Endurance Capacity Curve
Pick-up Voltage/Drop-out Voltage Curve
