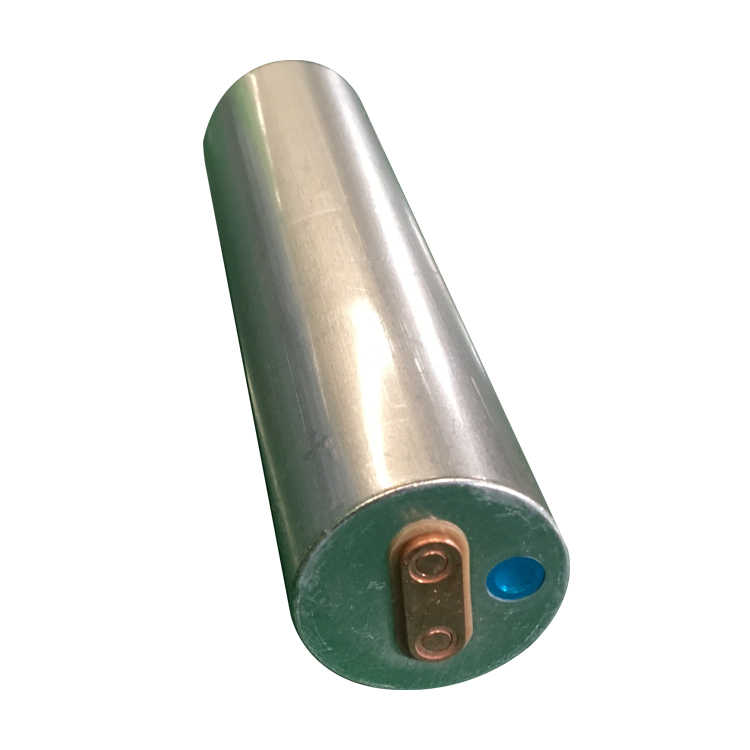

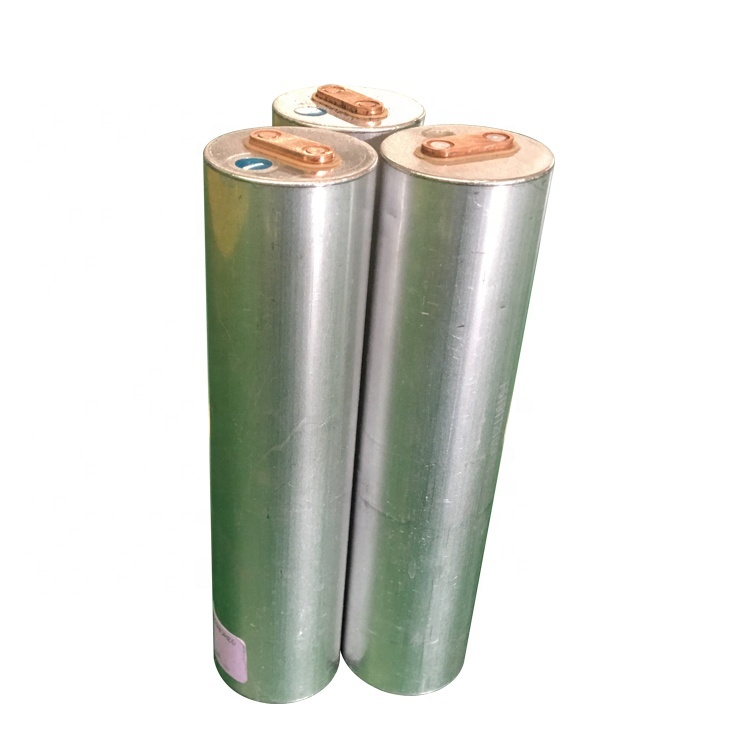

High Power LiFePO4 Cell IFR32135/13Ah

High Power LFP Cell IFR32135/13Ah
Description

Model Rechargeable Li-ion Battery Cell 3.2V/13AH
Model Number LFP32135
Nominal Voltage 3.2V
Rated Capacity 13Ah
Chemical Lithium ion Phosphate
Battery Size 32.2x140mm
Battery Weight 265g
Standard Charge Current 1C
Standard Discharge Current 2C
Max Charge Current 3C
Max Discharge Current 5C
Charge Cut off  Voltage 3.65V
Max Discharge cut off voltage 1.8V
Way of Charge CC/CV
Cycle Life >2500 times (70% of initial capacity at 0.5C rate)
Charge Temperature 0~45 60±25%R.H.
Discharge Temperature -20~55°C 60±25%R.H.
Storage temperature -0~35°C 45-75% R.H.
