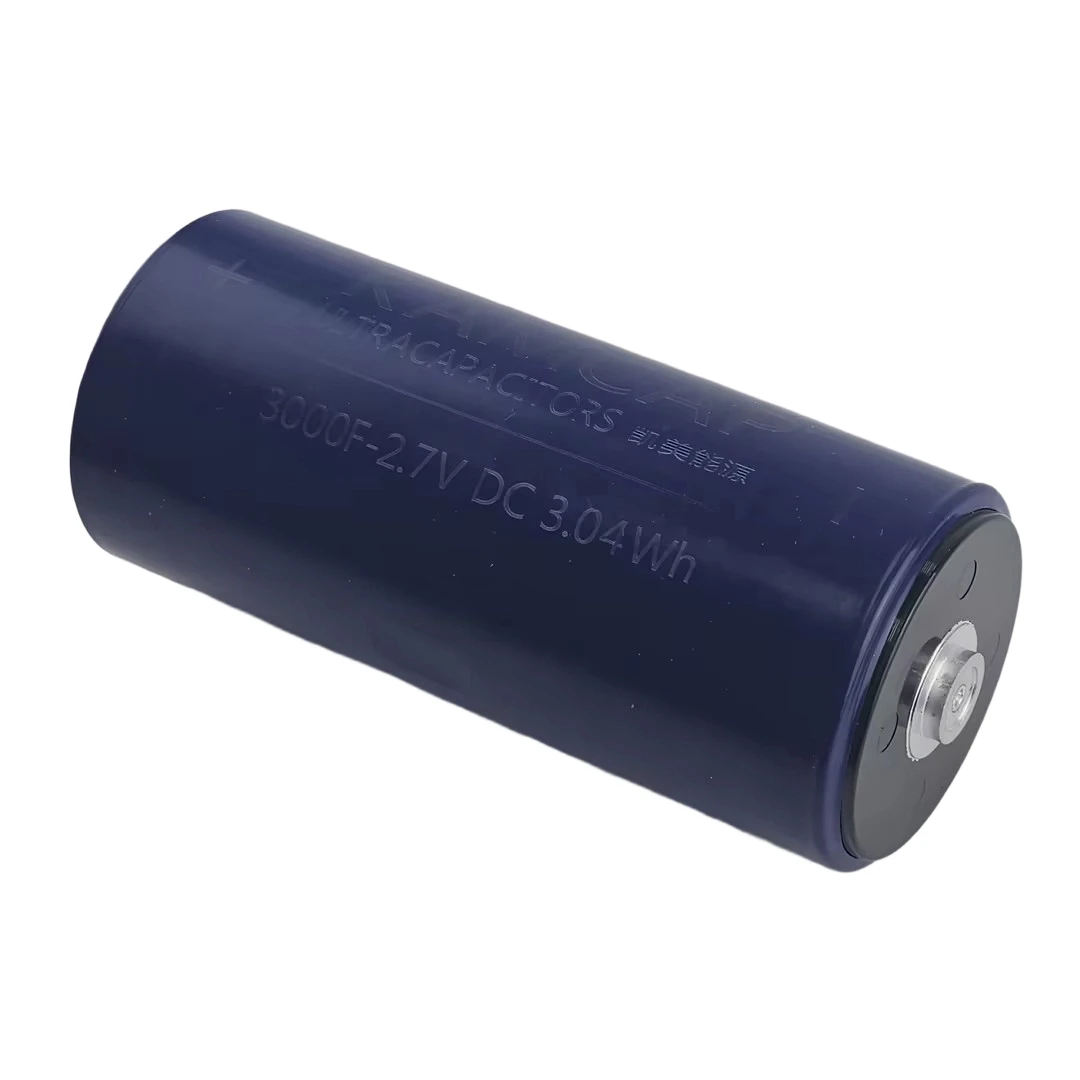

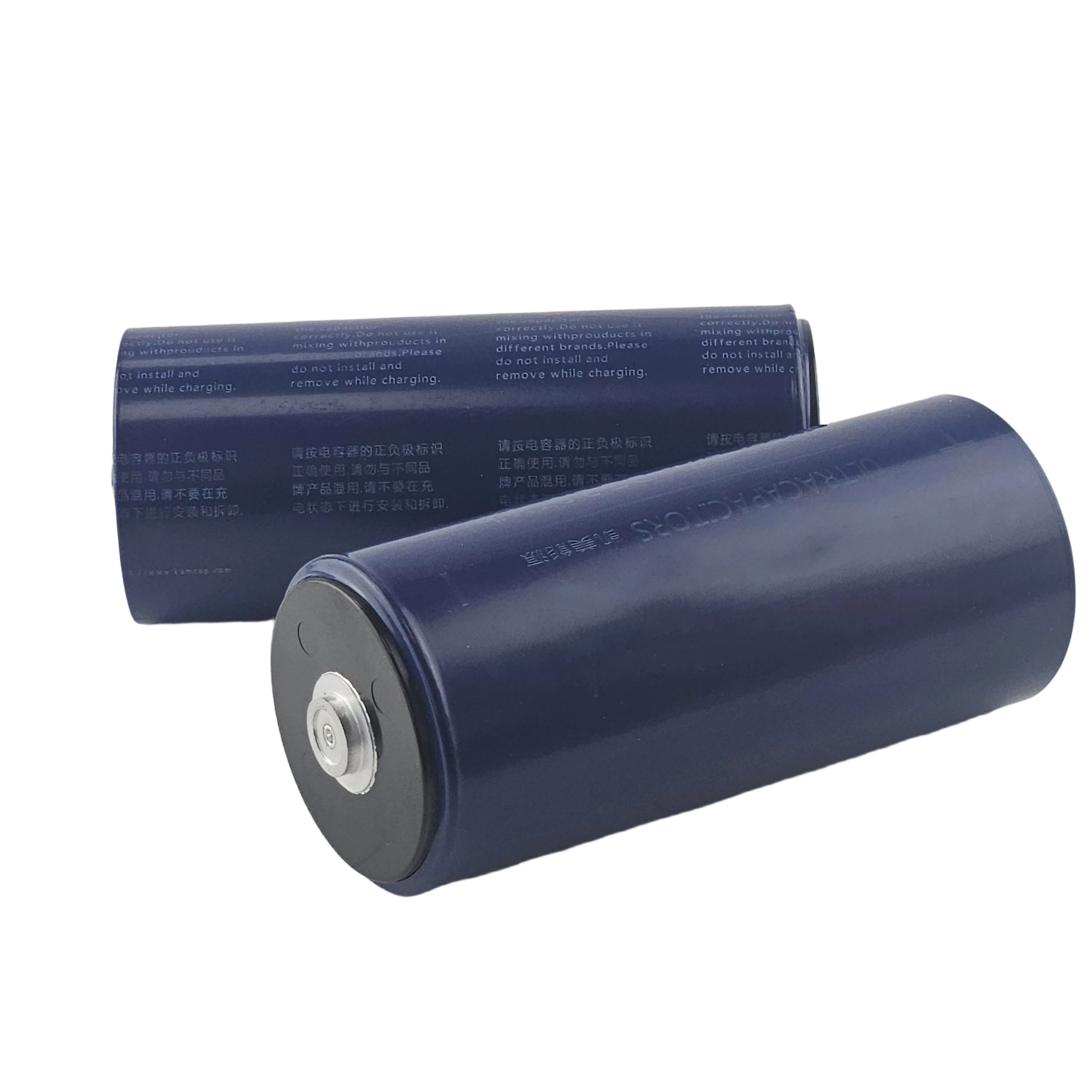

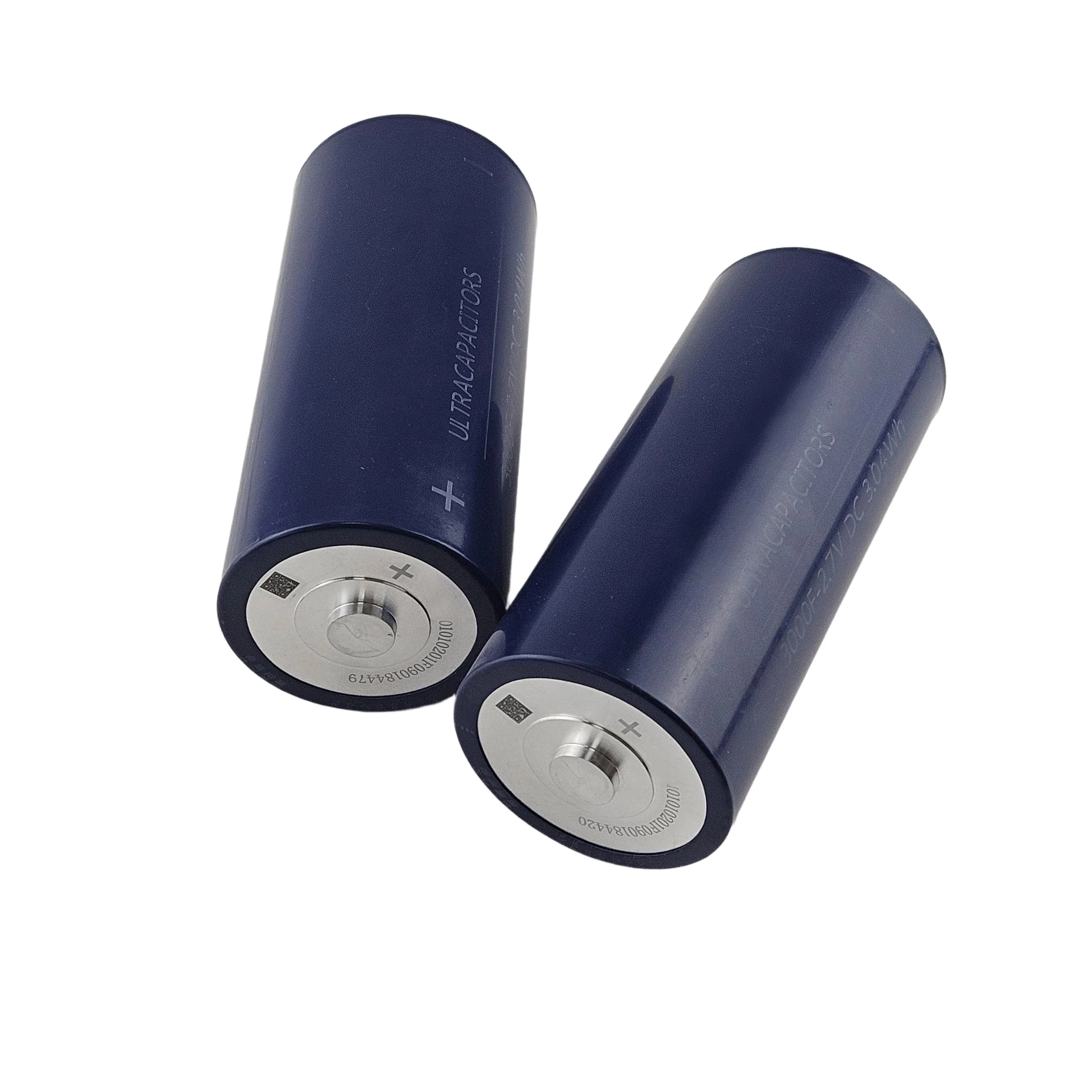

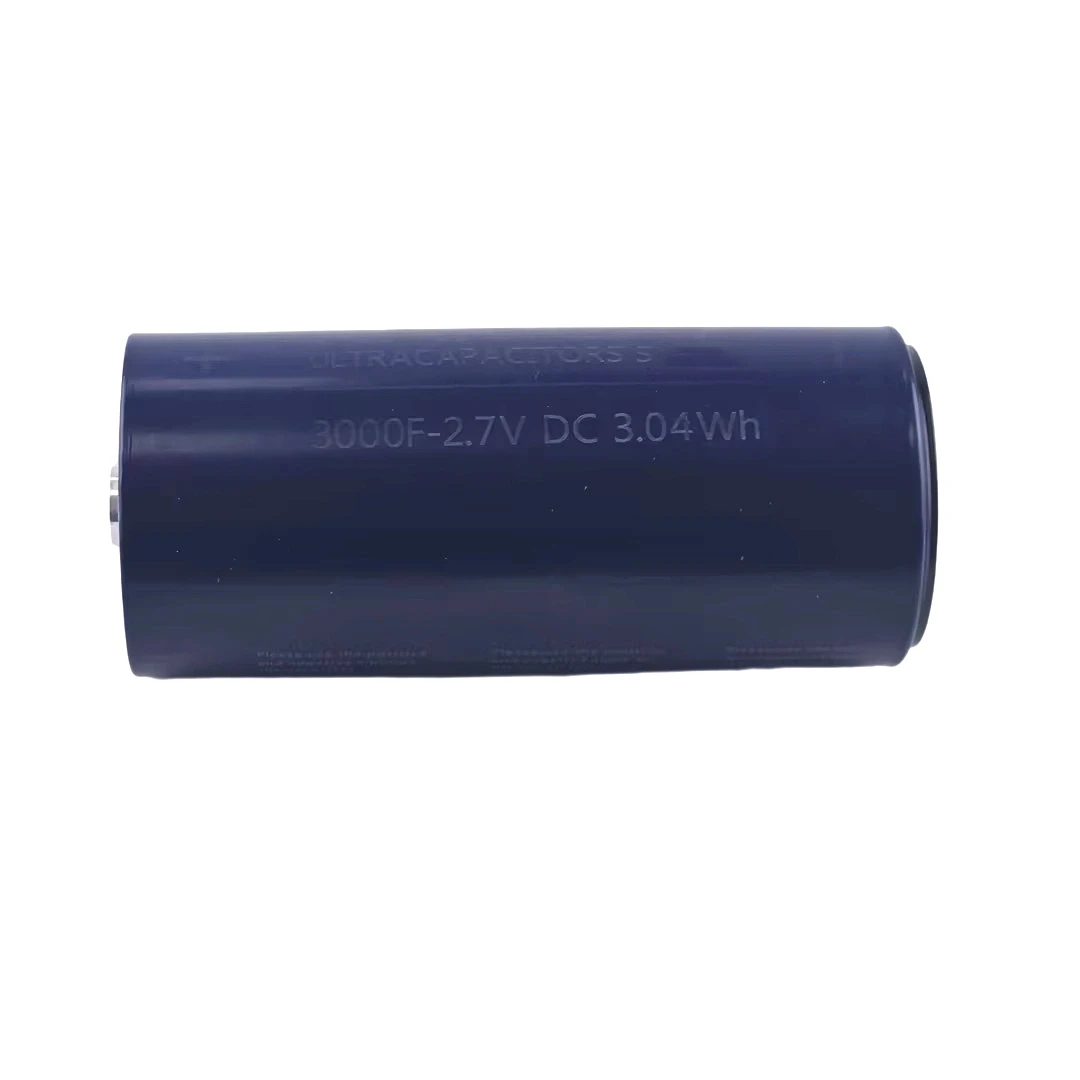

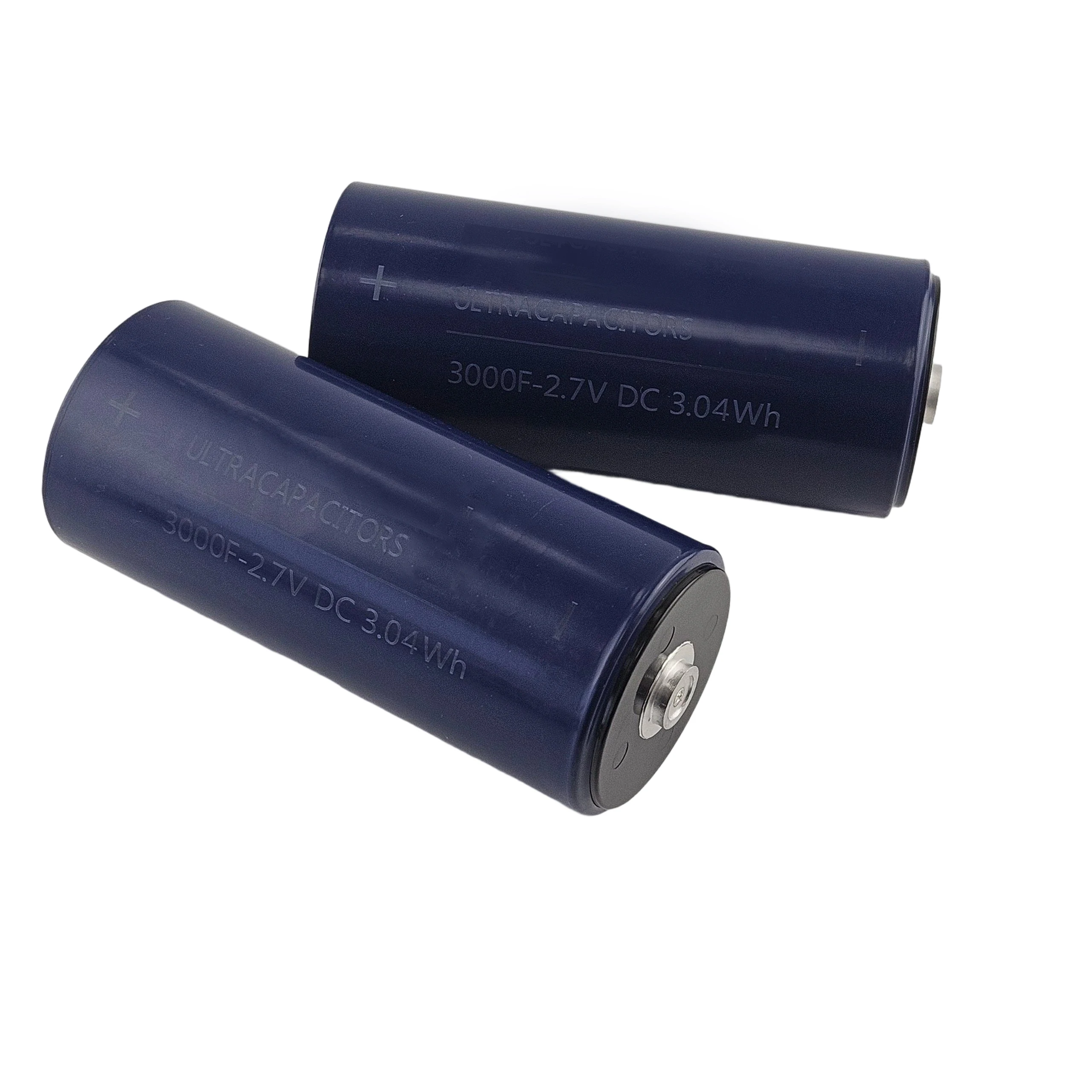

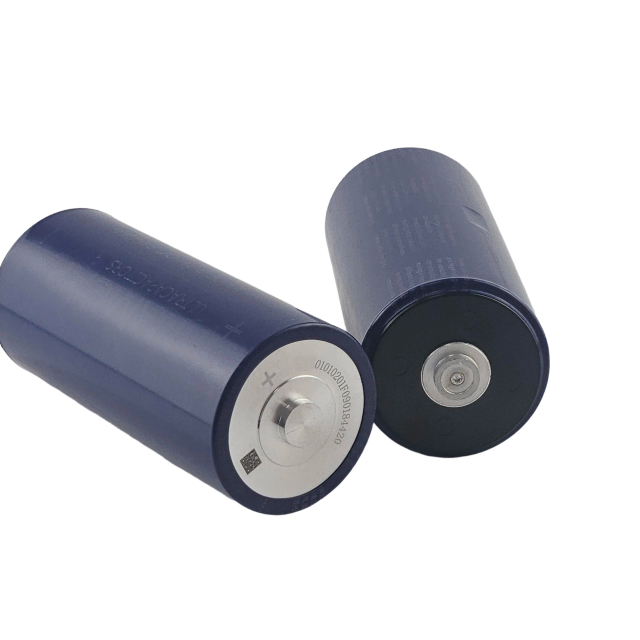

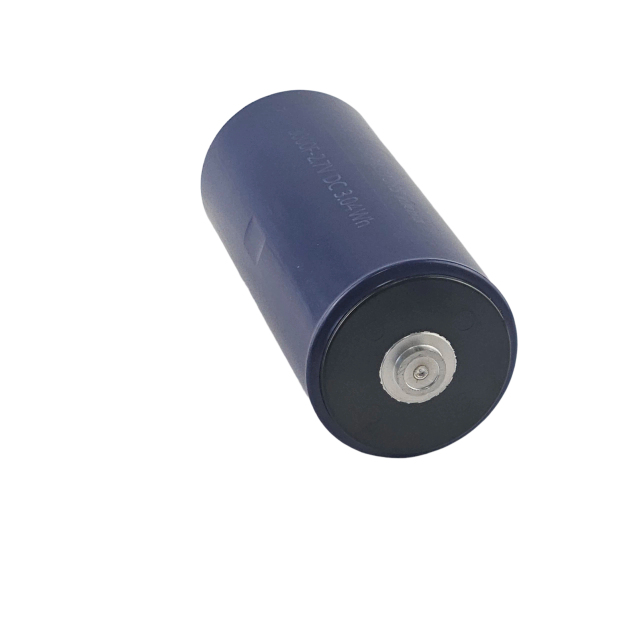

Name: Super Capacitor 2.7V3000F
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601717540215
Price: 34.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Brand Name

Beian

Model Number

BA-2R7-J308UMJ70

Capacitance

3000F

Rated Voltage

2.7V

Place of Origin

Jiangsu, China

Description

LIC / Lithium Capacitor BA-2R7-J308UMJ70

Application

Backup power,Energy storage,High current operation

Size / Dimension

60mm(d)138mm(l)

Operating Temperature

-40~+65℃

Tolerance

0%~+20%

ESR (Equivalent Series Resistance)

0.20

Surge voltage(V)

2.85

Max continuous current( T=15℃)(A)

130

Max Current(1s,A) (25℃)

2400

Leakage Current at 72h (25℃)(mA)

4.5

Operating Temp.(Top)

-40~+65℃

Storage temperature range (at 0V)

-40~+70℃

Weight m(g)

542

Certificate

UN38.3, MSDS, CE

Packaging and delivery

Selling Units

Single item

Single package size

42X25.5X19 cm

Single gross weight

18.000 kg

Product descriptions from the supplier

Product Description

Modle	BA-2R7-J308UMJ70
3000Rate discharge Cap.( ΔV＝2.4V-1.5V)	3000F
Cap. Tolerance(25℃)	0%~+20%
Rated Voltage(V)	2.7
Surge voltage(V)	2.85
Internal Resistance ESRDC (mΩ)	0.20
Max continuous current( △T=15℃）（A）	130
Max Current（1s,A) (25℃)	2400
Leakage Current at 72h (25℃)	4.5
Operating Temp.(Top)	-40~+65℃
Storage temperature range (at 0V)	-40~+70℃
Weight m	542
Energy Density (at U0)	5.6
Power Density (at U0)	16.8

Products Advantages

Wide Operating Temperature Range

Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT) series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments, making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.

Long Cycle Life

Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.

Excellent Charge-Discharge Characteristics

They support instantaneous high-current charge and discharge, featuring fast charging speed and short charge-discharge time. They have simple requirements for charging circuits and no memory effect.

Stable Electrical Performance

Certain series (e.g., HP series) feature low internal

resistance and can achieve instantaneous high-current output; the HE series has low leakage current, suitable for long-term low-current discharge; the 3V series is adapted for long-term stable operation under high-voltage conditions.

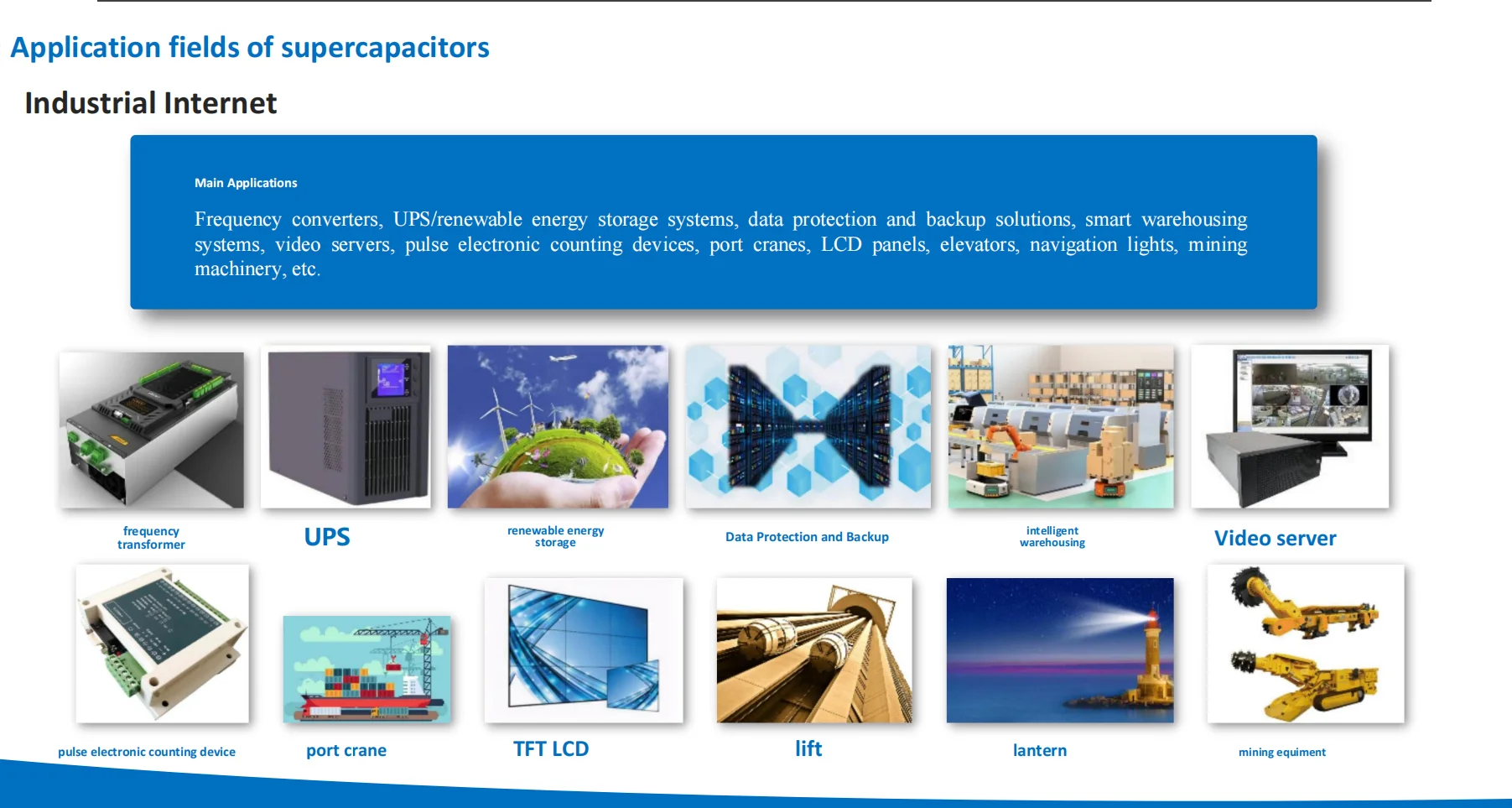

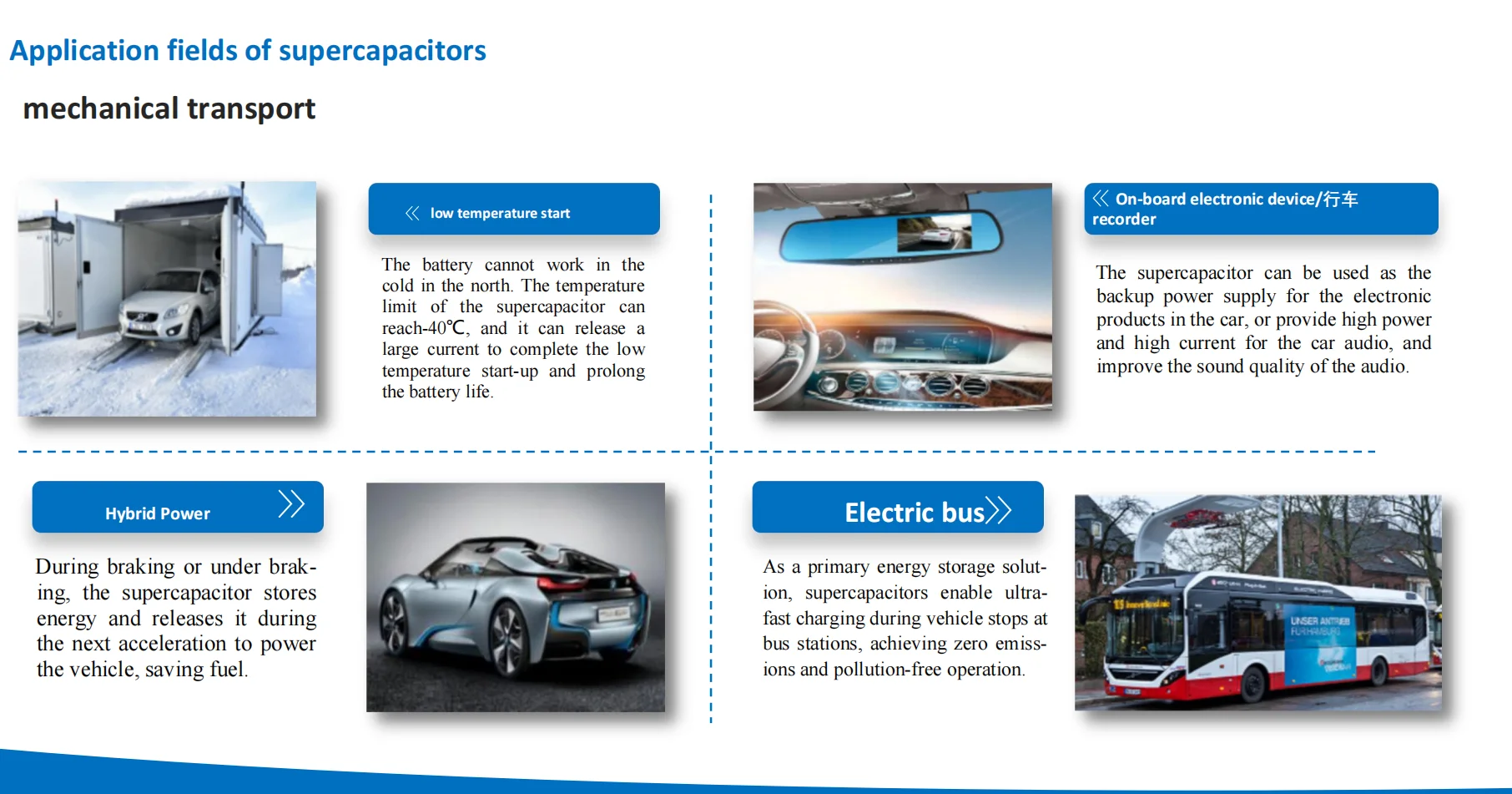

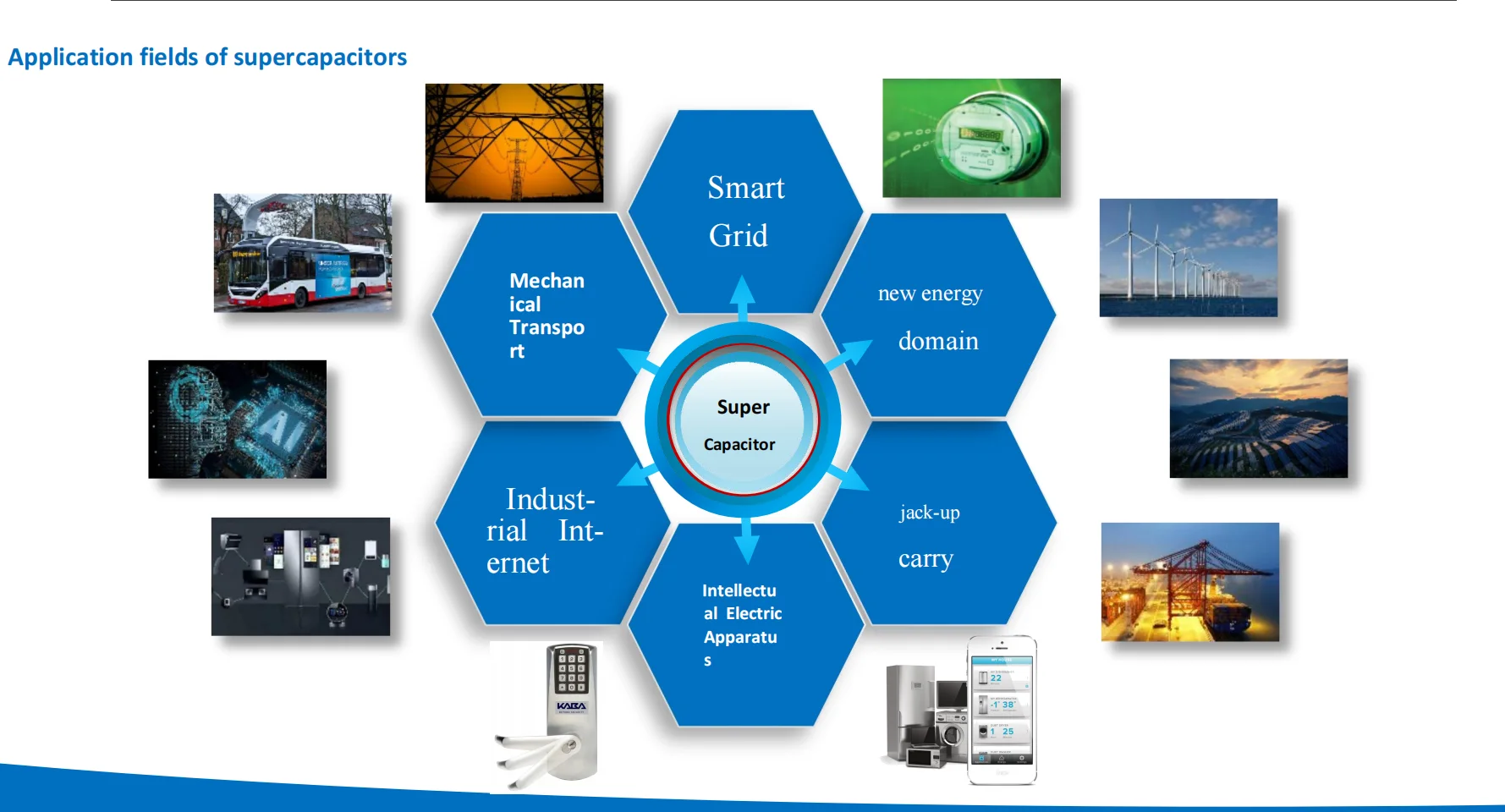

Product Applications

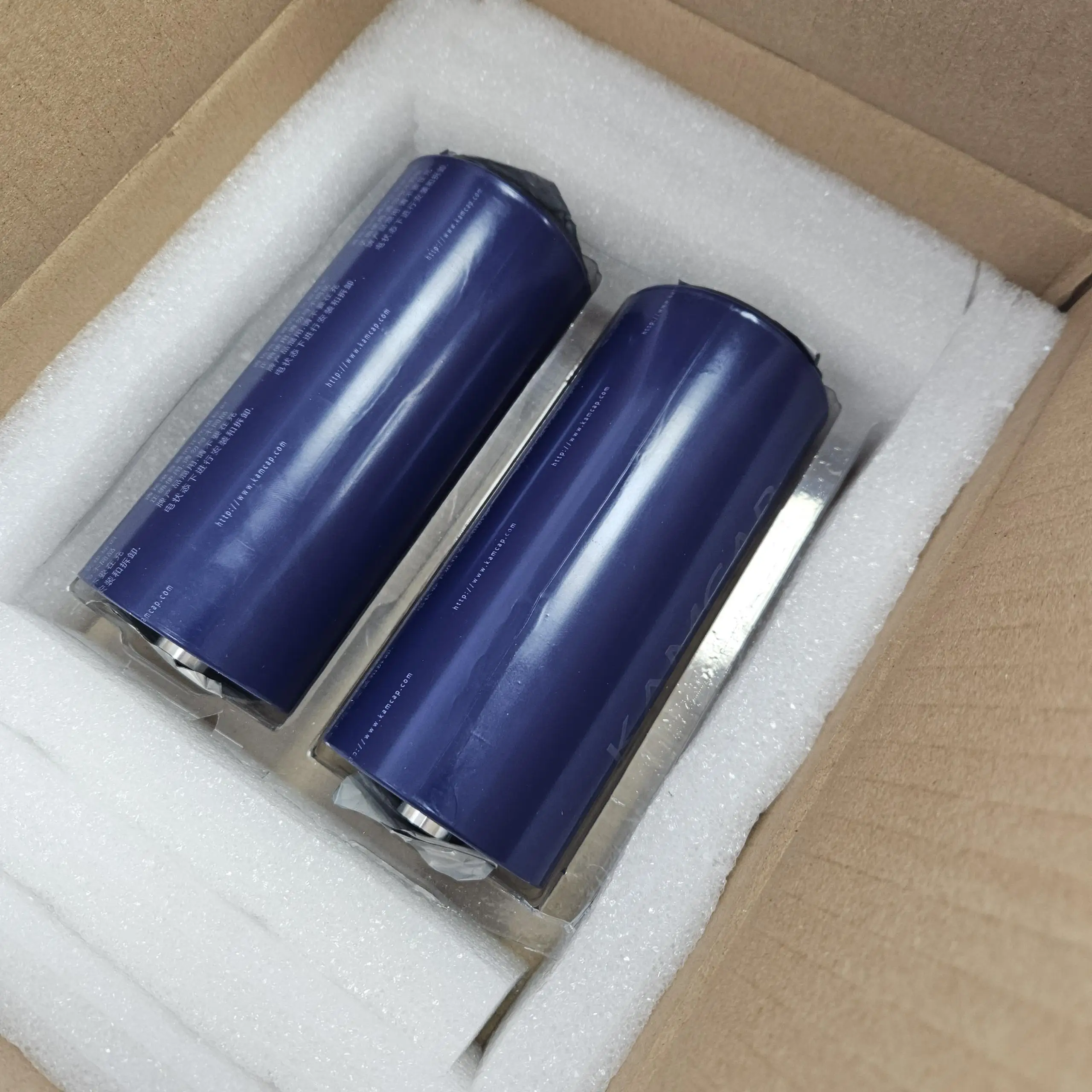

Safe Guarantee for Shipping

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated UN Certified carton
* Positive and negative with insulation
* We will label test data on each package before delivery
* If customer have requirement, we can provide Wooden Packing

Our Company

Our Advantages

High standard dust-free clean room

Professional technical personnel

High standard quality testing

Operate As to SOP specifications

FAQ

Q1. are your batteries brand new?
Yes, our batteries are Grade A, brand new, can be used in EV, Forklift, Golf Cart and ESS.
Q2. Do you have cheaper battery?
We will give you the best price, for more safety, we must guarantee that our batteries are brand new.
Q3. Does the battery have certification?
Battery have different certifications for different countries, please contact us for a certificate.
Q4. Can we connect different lithium battery packs in parallel or in series by ourselves?
Yes. Batteries can be connected in parallel or in series by the customer. Contact us and we will provide you with a design plan
and accessories list.
Q5.How are battery soldered?
We recommend using laser welding. If you do not have laser welding equipment, please contact us, we will provide you with a
solution.
Q6. What is your warranty?
We offer 1~5 years warranty depend on different products.
Q7:What is your terms of payment?
T/T recommended, Paypal and Western Union acceptable.

1> Sample order: Full payment made when PI received. 2> Mass production
order:30% down payment when PI received, 70% before shipment.
Q8. How do you ship the lithium battery?
We can ship by express through Fedex, UPS, TNT,DHL etc, we can also ship by air or by sea, by sea is cheaper.
