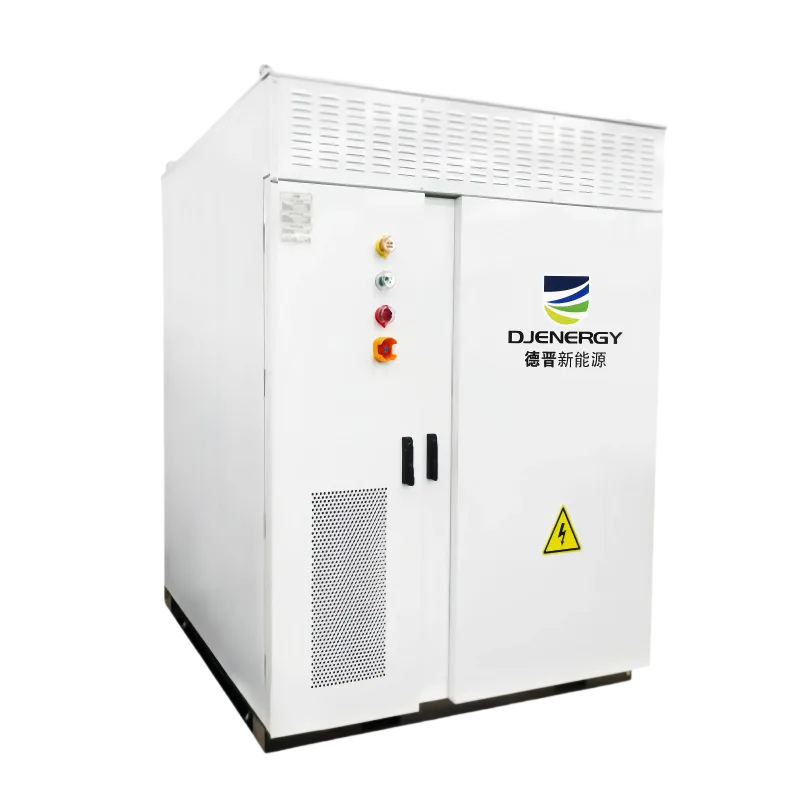

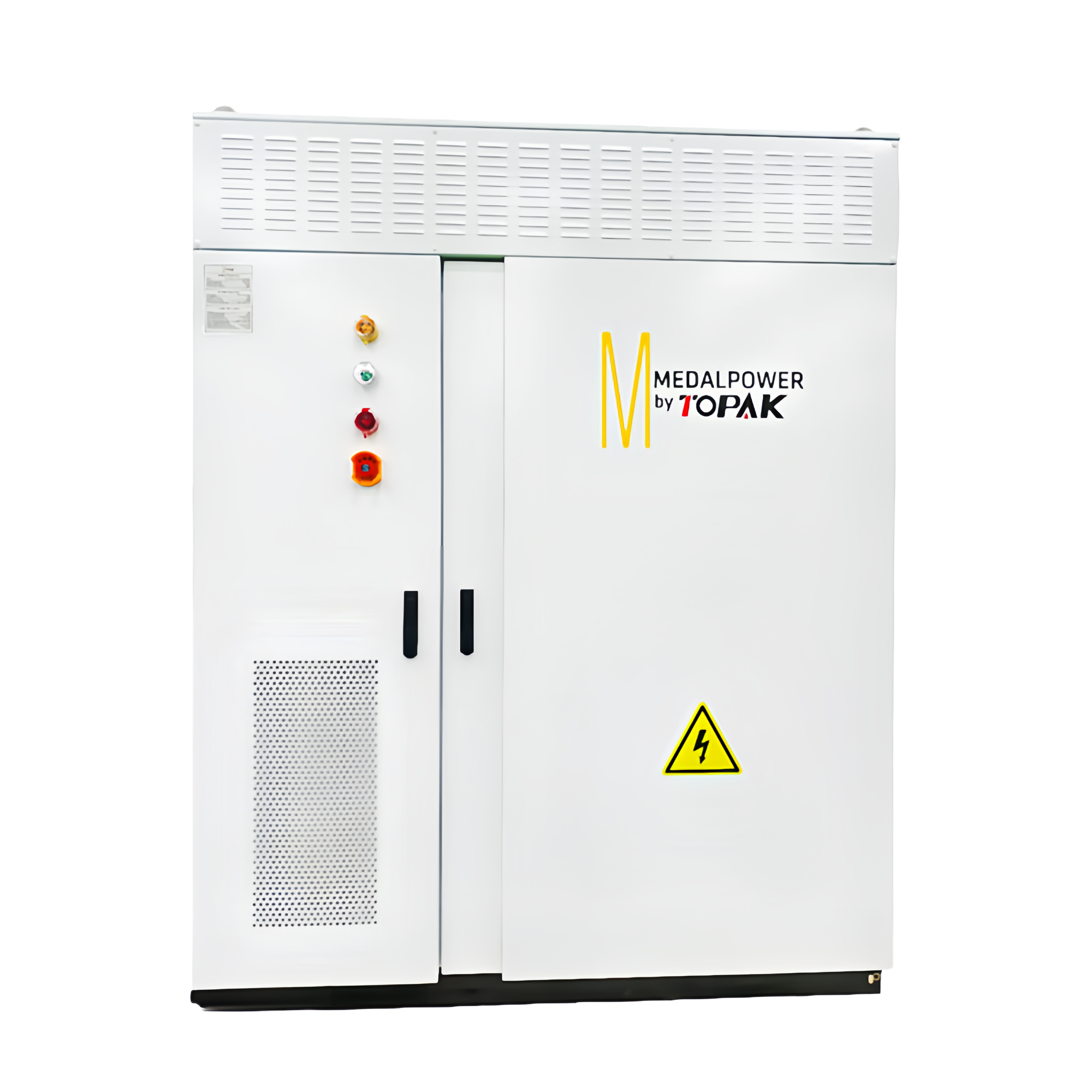

100KW/174KWh Smart All-in-one ESS

                         Modle


Paramenter name

100KW/174KWh Smart All-in-one ESS

Cell Type

3.2V/206Ah

System Battery Configuration

1P264S

Rated Capacity of Battery

206Ah

Rated System Eenergy

174KWh

Battery Voltage Range

686.4-950V

Rated Power on AC Side

100kW

AC Side Current Distortion Rate

<3%(At rated power)

DC Component

<0.5%

Rated Voltage on AC Side

230/400V

Power Factor

>0.99（At rated power）

Rated Grid Frequency

50Hz/60Hz

Battery Cabinet
Size (Width x Height x Depth)

1715*2175.5*1228mm

Weight of Energy Storage Cabinet

2.15t

IP Grade

IP54

Operating Temperature Range

（-30℃~50℃）

Operating Humidity Range

0~95%

Maximum Working Altitude

≤2000m

Battery Temperature Control Method

Forced air cooling

Converter Cooling Method

Forced air cooling

Fire Protection System
(Energy Storage Cabinet)

Aerosol

System Communication Interface

Ethernet、RS485、CAN
