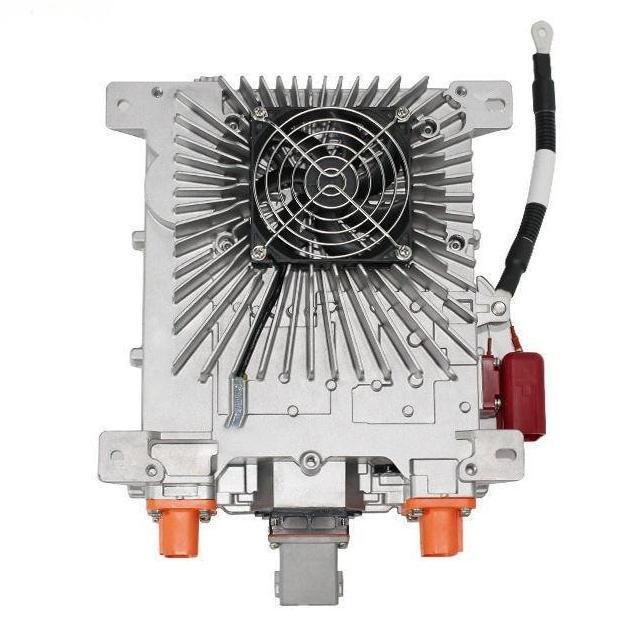

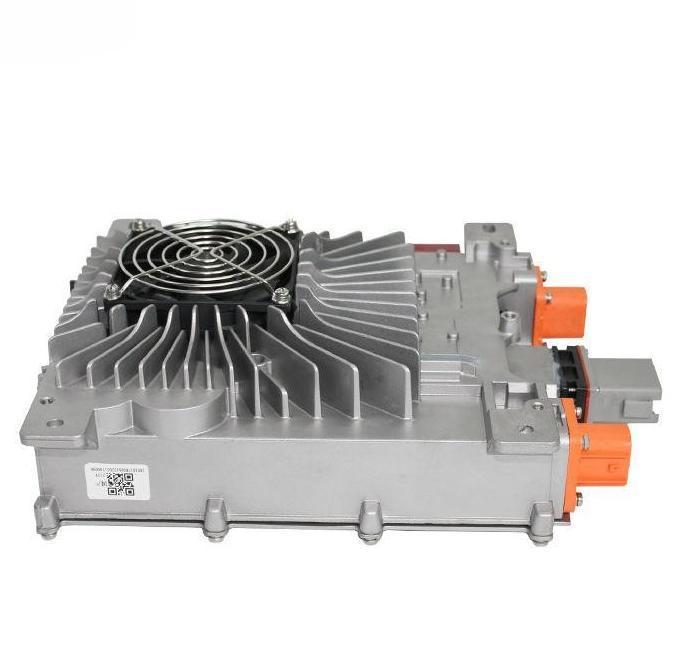

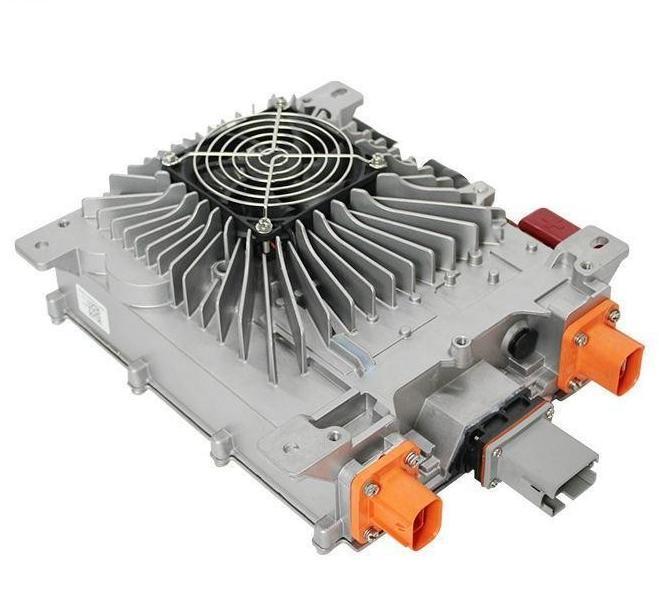

3.3Kw AC/DC 2 IN 1 EV On Board Charger Air Cooling with DC/DC
Model Available
ITEM
MODLES
OUT PUT POWER
COOLING METHOD
OBC
HK-M
3.3KW
WIND/LIQUID
OBC
HK-M
6.6KW
WIND/LIQUID
DC/DC
TDC-IY
1.0KW
NATURAL COOLING
DC/DC
TDC-JY
1.5KW
WIND
DC/DC
EV1800PB48D12D-000
1.5KW
WIND
DC/DC
TCD UN5000202
2.0KW
LIQUID
OBC+DC/DC
CD-M
3.3KW+1KW
WIND/LIQUID
OBC+DC/DC
CD-MWH
3.3KW+1.5KW
WIND/LIQUID
OBC+DC/DC
CD-LF/CD-LW
6.6KW+1.5KW
WIND/LIQUID
OBC+DC/DC
CD-LFK/CD=LWK
6.6KW+1.5KW
WIND/LIQUID
TECHNOLOGY PARAMETERS
●AC Input Voltage Range: 90-264VAC；45-65Hz ●AC Input Max Current:23A @144VAC； 10.0A @312VAC ●Power Factor:≥0.99 ●Efficiency:≥94.0% ●Noise:≤65dB
PRODUCT CHARACTERISTICS
SAFETY Active PFC and LLC technique is used for a rapid response on a fault; Quick active software and passive hardware protection on voltage¤t;Advanced charging strategy is applied as safeguard for the battery. RELIABILITY The shell is shaped by integrated die casting technique and filled with special glue. This series of chargers had been operated in all kinds of industrial environment (Wet, Hot, Cold, high altitude) for more than ten years to pass verification. FUNCTIONS CAN BUS Interface; Triple Colors Indicator; Vehicle Charging Lock System; Auxiliary power supply for 12V ;
●Burnout Protection: If temperature of charger exceeds the limitation, the charger will low down the power load. If environment temperature exceeds 65℃, the charger will stop charging and switch itself to standby mode until the temperature goes down. ●Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down when the batteries are connected reversely. ●NO-load Protection:There is no output when the battery is not connected. ●Short Circuit Protection: The circuit inside the charger will shut down when output is short-circuited. ●Automatic shutdown when fully charged:The charger automatically turns off after the battery is fully charged.
