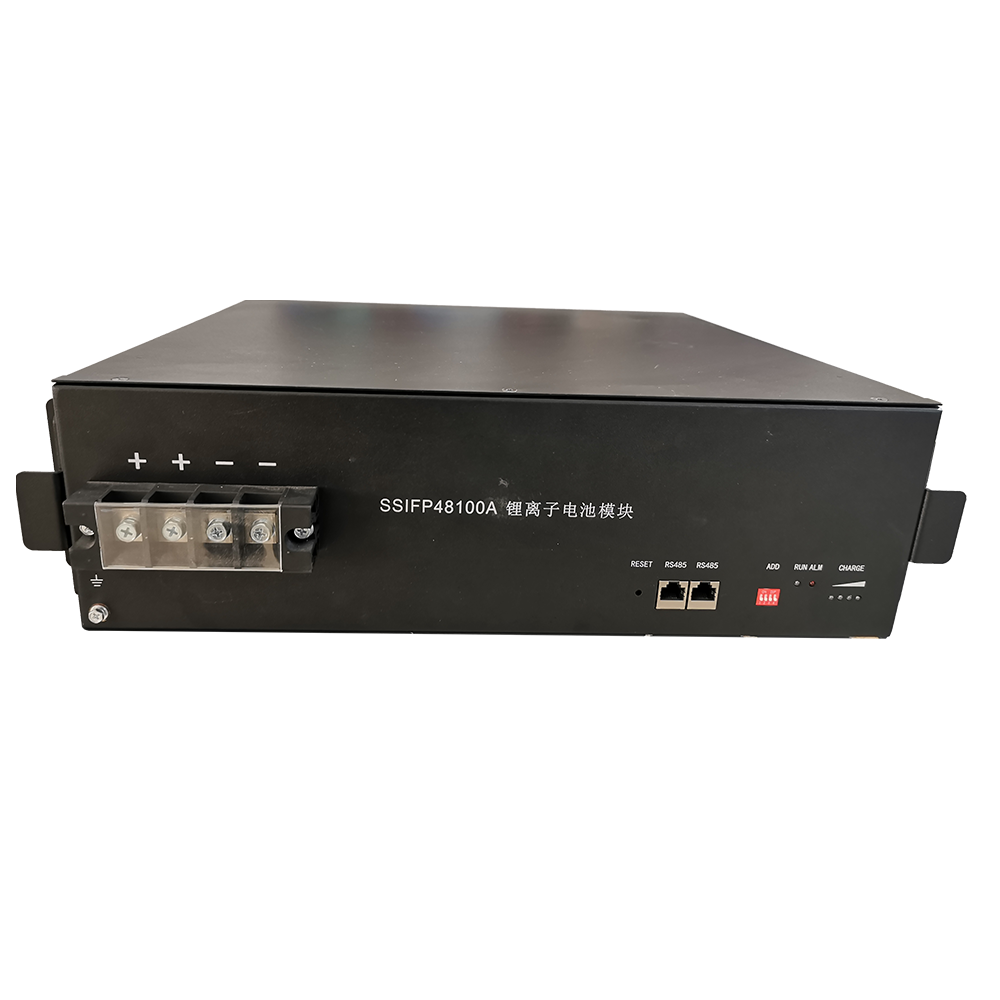

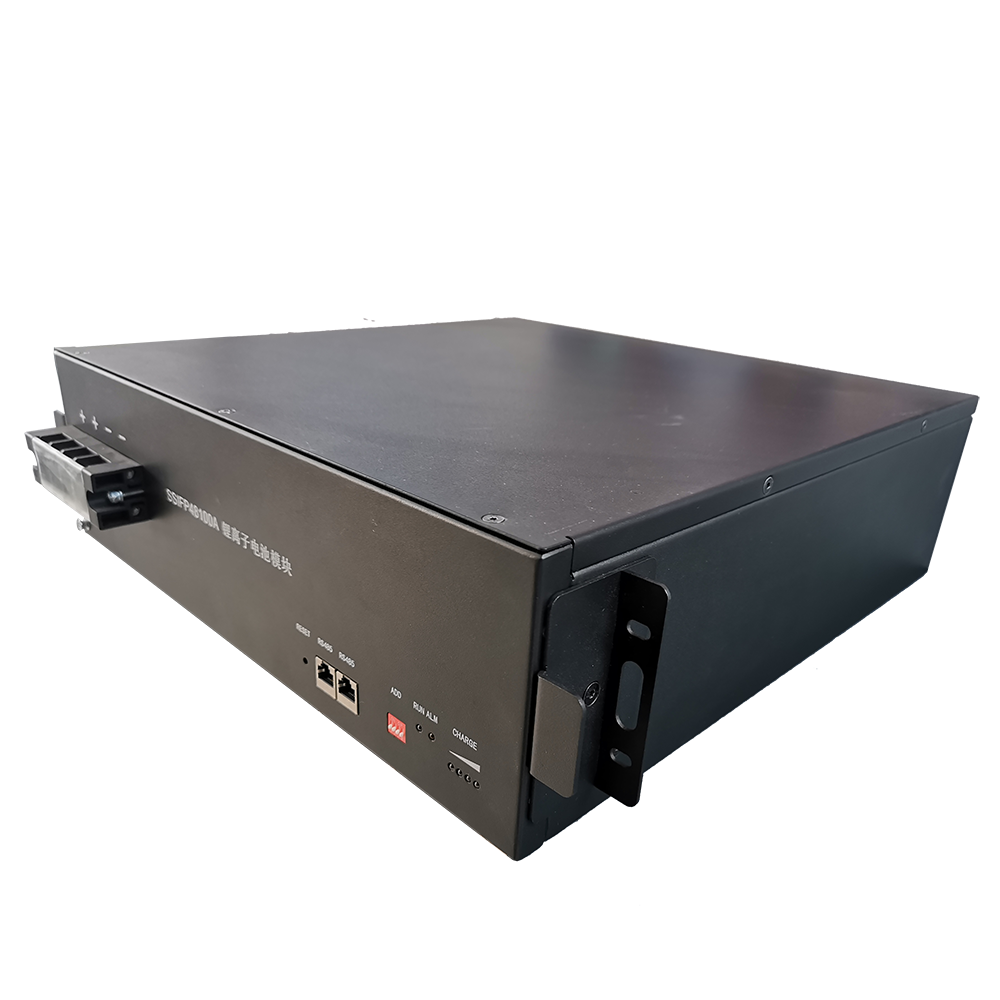

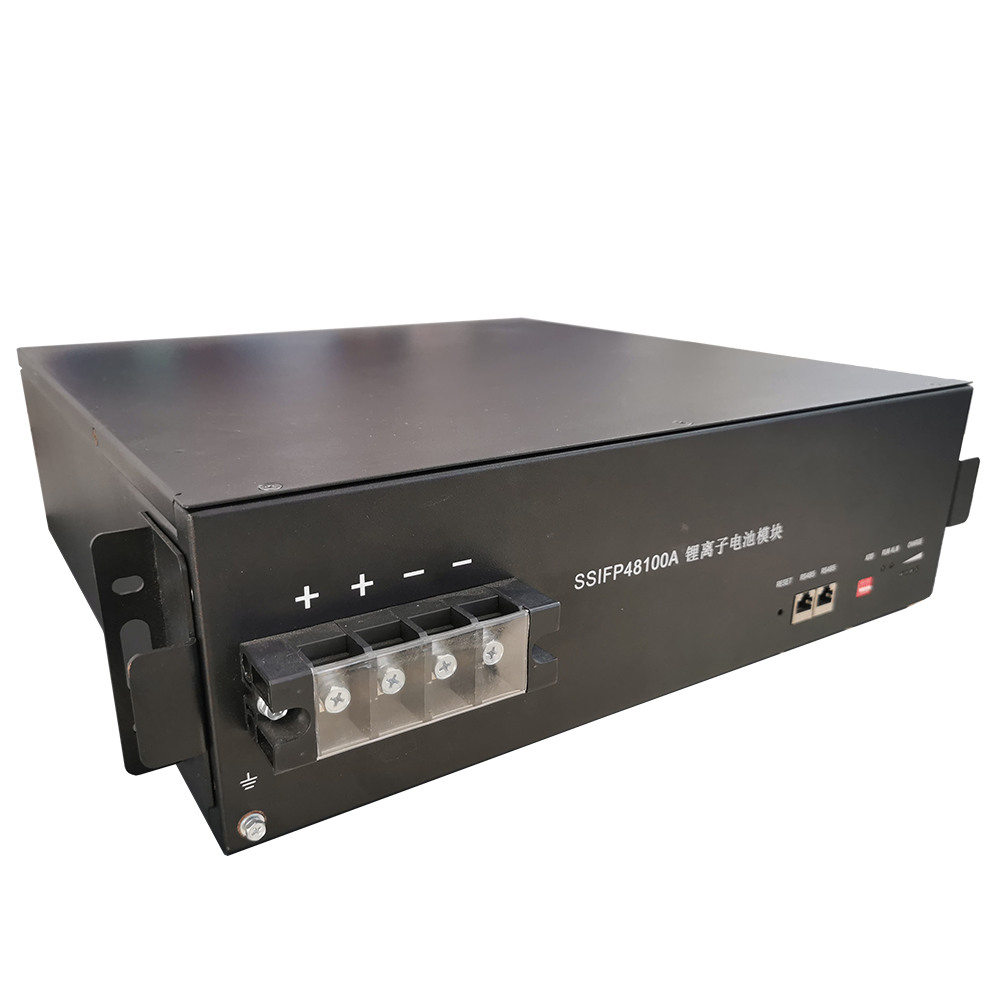

48V/100Ah-3U LiFePO4 UPS Battery
| No. |
Item |
Technical parameters |
Remarks |
| 1 |
Nominal Capacity |
100Ah |
LiFePO4 |
| 2 |
Energy |
4800Wh |
|
| 3 |
Nominal Voltage |
48V |
|
| 4 |
Working voltage range |
42~54V |
|
| 5 |
Charging cutoff voltage |
54V |
|
| 6 |
Discharge cutoff voltage |
42V |
|
| 7 |
Maximum continuous charge current |
50A |
0.5C |
| 8 |
Maximum continuous discharge current |
100A |
1C |
| 9 |
Cell model |
IFR32131-12.8Ah |
See the report |
| 10 |
Cell voltage/capacity |
3.2V 12.8Ah |
|
| 11 |
Assembly style |
15S8P |
|
| 12 |
SOC range |
15%~95% |
|
| 13 |
Charging efficiency |
≥93% |
|
| 14 |
Internal resistance |
≤50mΩ |
|
| 15 |
Cycle life |
>2000(@25℃,1C,100%DOD) |
Work at high temperatures (>50℃) Will reduce product life |
| 16 |
Charging temperature range |
-10℃~55℃ |
Less than 5℃ at 10A charging |
| 17 |
Discharge temperature range |
-20℃~60℃ |
|
| 18 |
Storage temperature |
-10℃~30℃ |
|
| 19 |
Environment humidity |
5%~95% |
|
| 20 |
Self-discharge rate/month |
≤3% |
25℃ |
| 21 |
Dimension(W*D*H) |
442*400*220mm |
|
| 22 |
Weight |
44.5kg |
|
| 23 |
Color |
Black |
|
| 24 |
Cooling mode |
Natural air cooling |
|
| 25 |
IP protection grade |
IP54 |
|
