Product Name
|

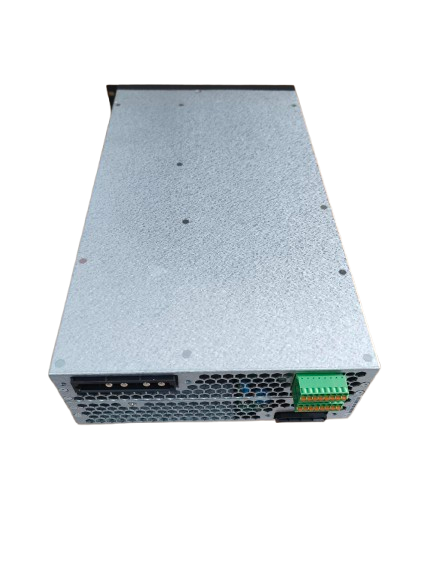

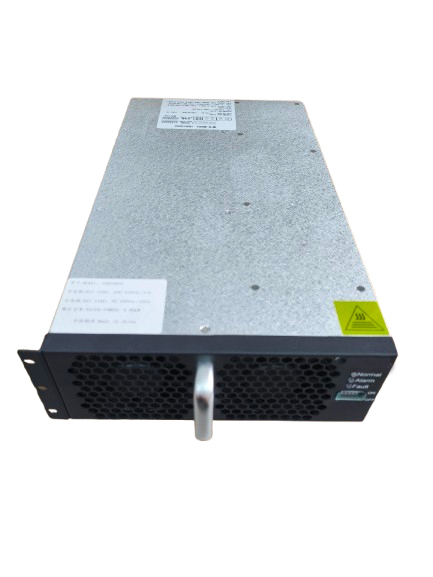

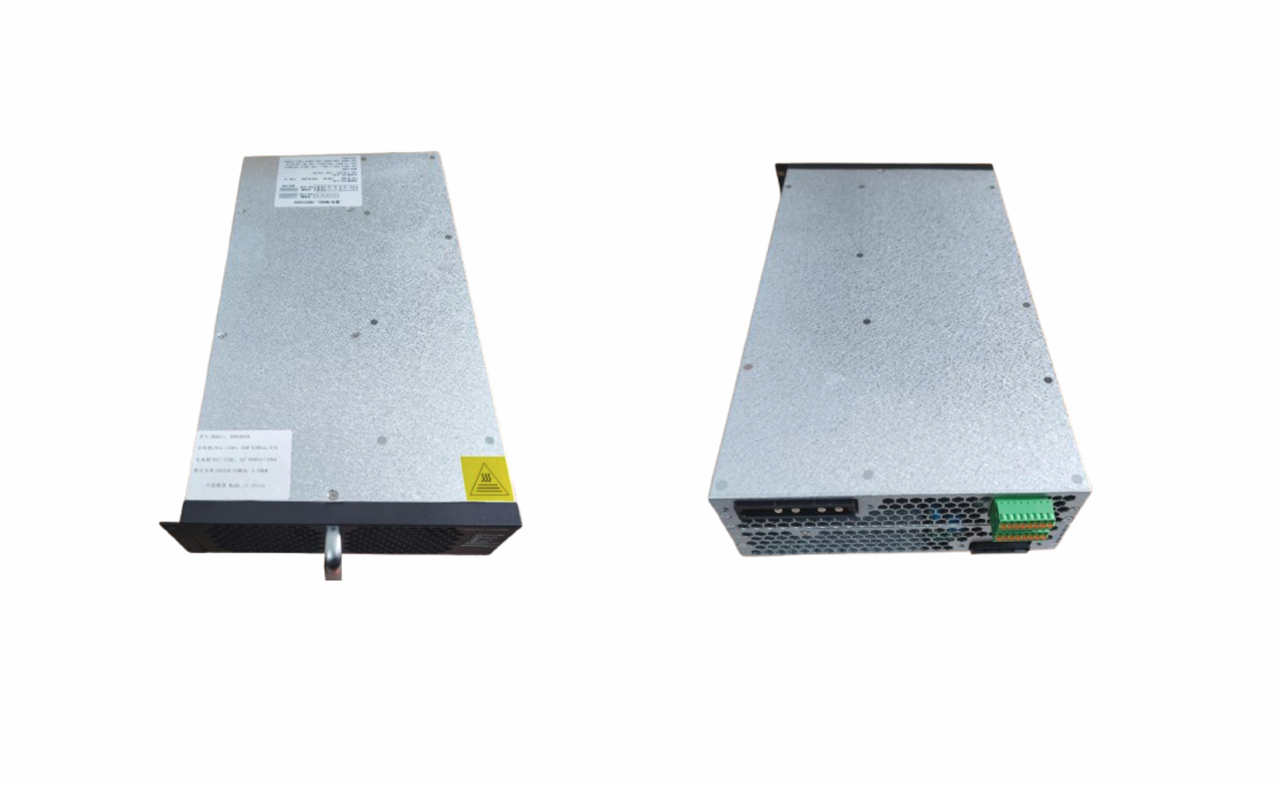

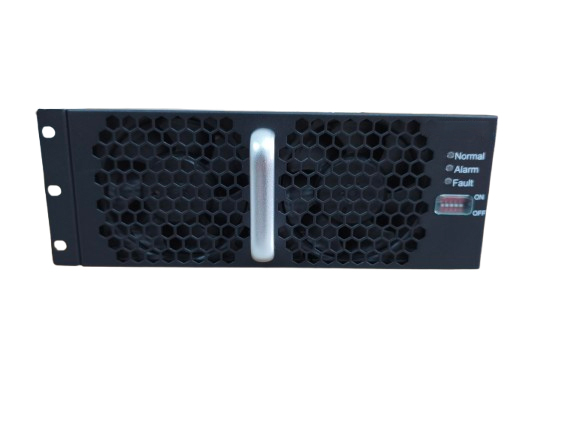

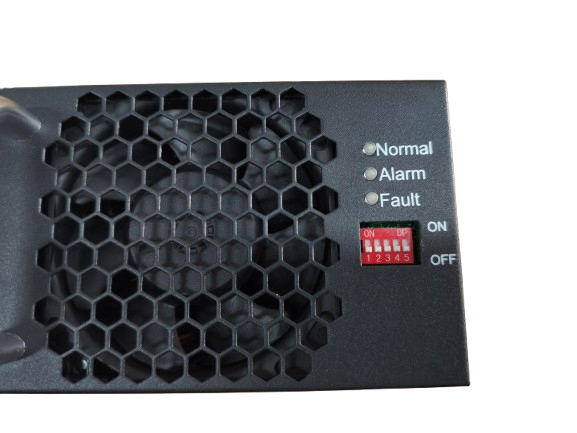

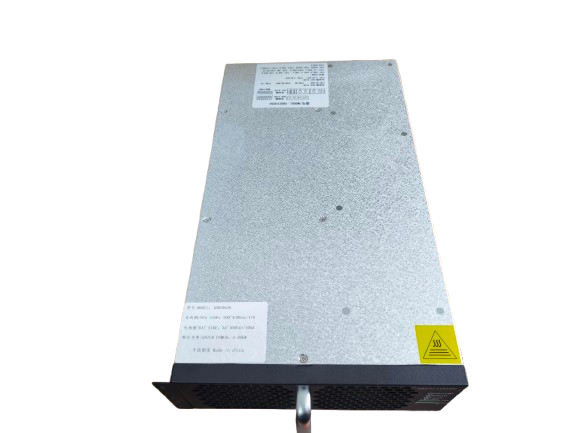

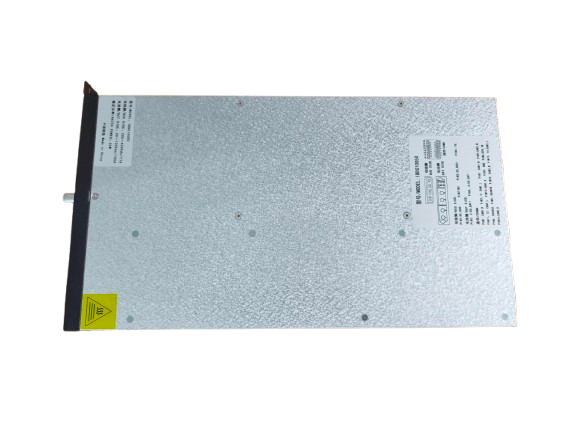

BADC10050 Bidirectional DCDC Module
|
|
|
DC bus side
|
Polarized..
|
|
|
Voltage range
|
200 ~ 420Vdc
|
|
|
Rated voltage
|
370Vdc
|
|
|
Max Current
|
17 Amax (at 200~290 Vdc, ≤12 A)
|
|
|
Battery-side
|
450
|
|
|
Voltage range
|
30~100Vdc
|
|
|
Rated voltage
|
60Vdc
|
|
|
Max Current
|
105Amax
|
|
|
Power rating
|
5kW
|
|
|
Steady-current accuracy
|
≤±5%
|
|
|
Current ripple
|
<5%
|
|
|
Voltage ripple
|
< 2%
|
|
|
Softstart time
|
3s≤ t ≤8s
|
|
|
Standby power consumption
|
<30W (Vbat=100Vdc, module dormant)
|
|
