| Model & Battery | |
|---|---|
| Model | eCandle Pro (AC+AC) / eCandle Pro (AC+DC) |
| Brand | Beian |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Energy | 1004Wh max |
| System Voltage | 3.2V (single-cell architecture) |
| Cycle Life | ≥6,000 cycles |
| Inverter Type | Pure sine wave |
| Solar Controller | Built-in MPPT |
| PV Input | |
| Max. PV Input Power | 500W |
| PV Input Voltage Range | 12–60VDC |
| AC Input | |
| Input Voltage Range | 90–280VAC |
| Input Frequency Range | 45–65Hz |
| Maximum AC Input Power | 500W |
| AC Output (Inverter Mode) | |
| Nominal AC Output Power | 500W |
| Nominal AC Output Voltage | 220–240VAC (110V optional) |
| Nominal AC Frequency | 50Hz / 60Hz |
| UPS Switch Time | ≤10ms |
| Number of AC Output Ports | 1 (AC+DC) / 2 (AC+AC) |
| DC Output (AC+DC model) | |
| Type-C | 20W max (x1) |
| USB-A | 10W max, 15W total (x2) |
| AC+AC Model | AC outlets only (no DC ports) |
| Physical & Environment | |
| Dimension (W × D × H) | 290 × 168 × 248 mm |
| Net Weight | 8 kg |
| Operating Temperature | -10 °C to 45 °C |
| Special Features | Wireless charging, Type-C, flashlight, cigar lighter port, external battery expansion |
| Warranty | 1–5 years (depending on configuration) |
Specifications are for reference and may be updated without notice. Please confirm the exact configuration (AC+AC / AC+DC, output voltage, packaging) with our sales team before ordering.
1004Wh LiFePO4 BatterySingle-cell LiFePO4 architecture delivers 1004Wh of usable energy with a rated cycle life of 6,000+ cycles — a long-life, thermally stable alternative to NMC packs. |
500W Pure Sine Wave OutputClean 220–240VAC (110V optional) sine-wave power runs laptops, mini fridges, power tools, routers, cameras and medical equipment safely. |
Built-in MPPT Solar ChargingConnect solar panels directly to the 12–60VDC input — the integrated MPPT controller maximises harvest with no external charge controller needed. |
UPS-Style Backup in ≤10msWhen grid power fails the unit switches to battery output in 10 milliseconds or less, keeping connected equipment running without a restart. |

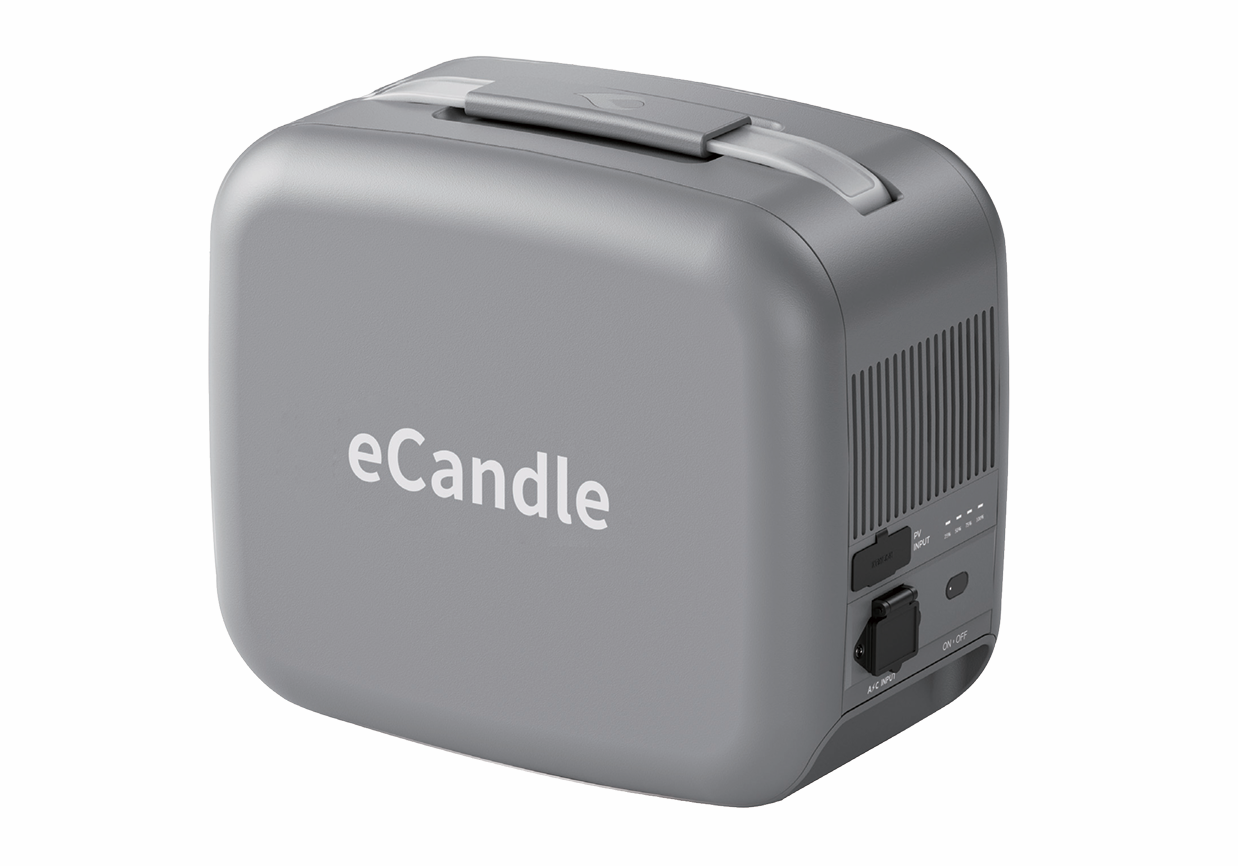

Portable 8kg Toolbox FormatCompact 290 × 168 × 248 mm housing weighing around 8 kg — easy to carry for field service, camping, RV trips and outdoor events. |
Flexible AC+AC / AC+DC ConfigurationsChoose two AC outlets (AC+AC) or one AC outlet plus Type-C and USB-A ports (AC+DC), with OEM/ODM branding, packaging and voltage options. |
Multi-Channel Charging & ProtectionRecharge from the grid (90–280VAC), from solar (12–60VDC) or from a vehicle cigar-lighter port, with over-voltage, over-current, over-temperature and low-voltage protections built in. |
|

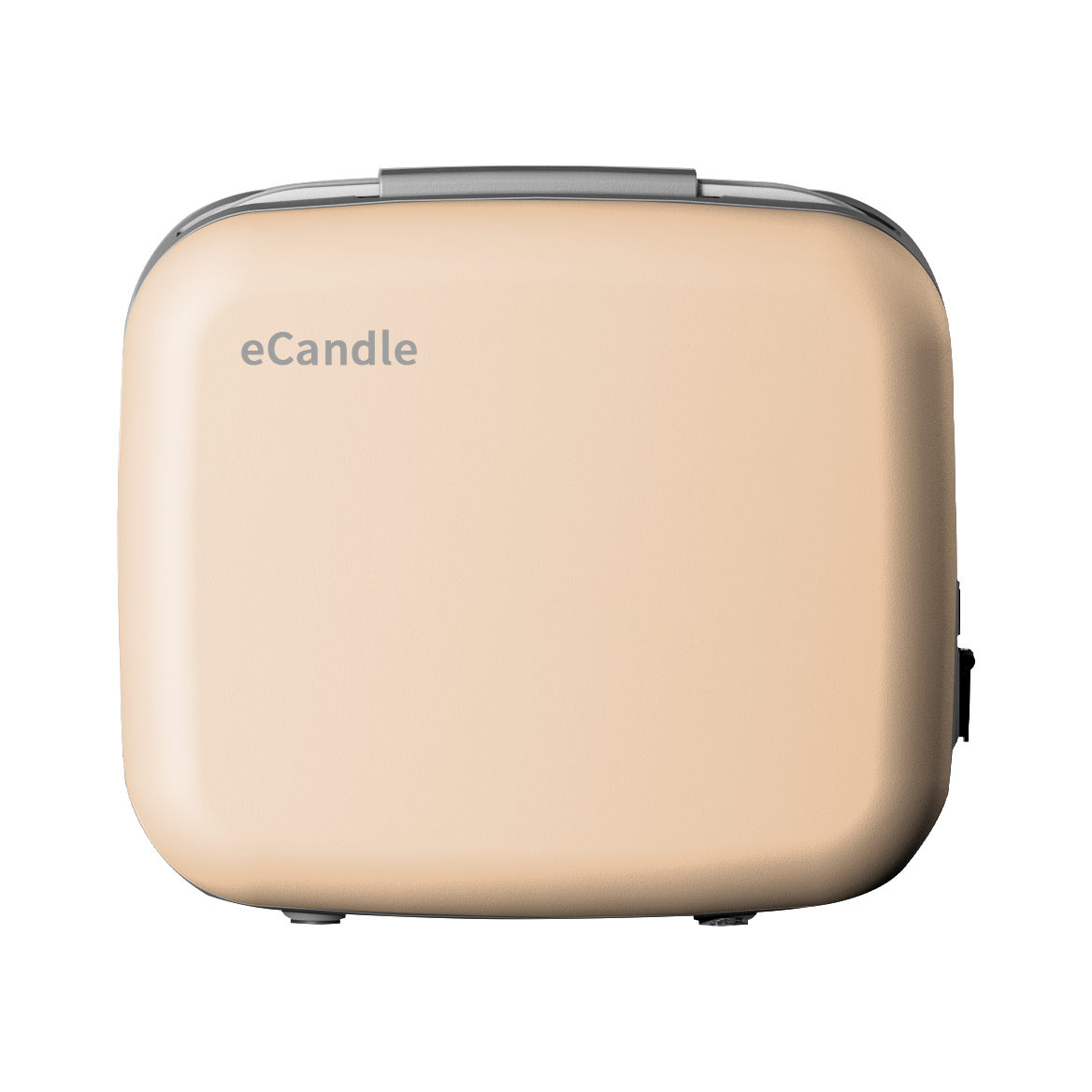

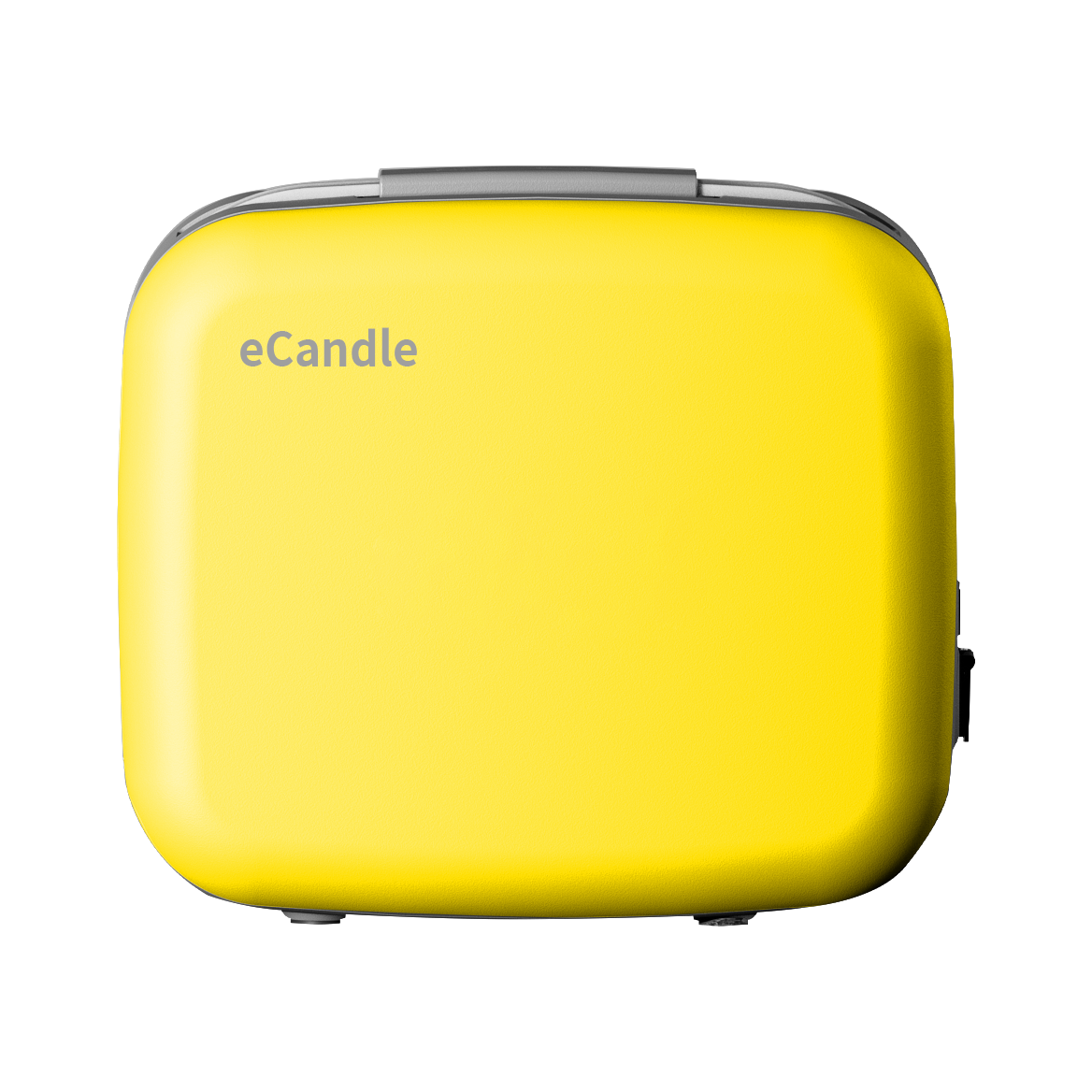

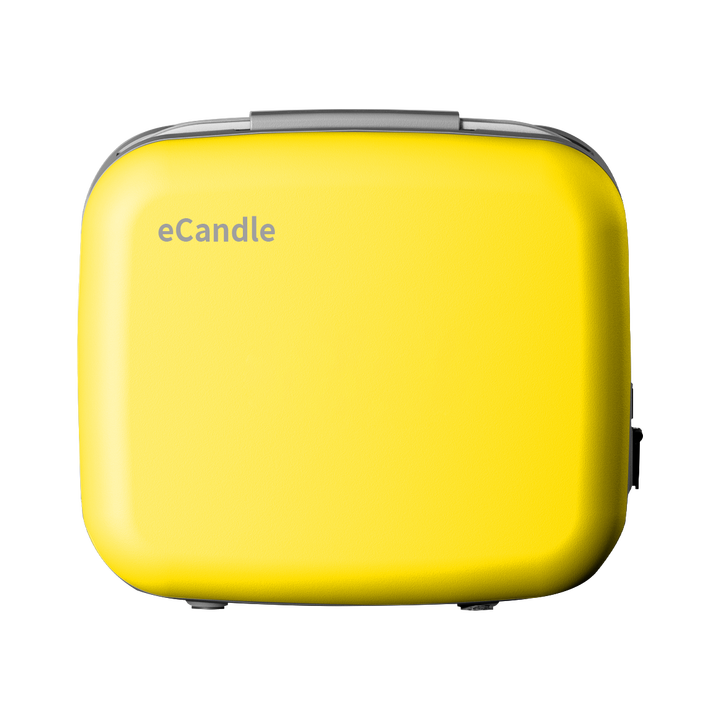

Colour Option 1
|
Colour Option 2
|
Colour Option 3
|
Colour Option 4
|
Housing colour, logo printing, output configuration and packaging can all be customised for volume orders. Send us your requirement and our engineers will confirm the available options.
ISO 9001 ManufacturingProduced in Beian's dust-free workshop in Suzhou under standardised SOP and quality-test procedures. |
CE / FCC / RoHSCompliance documents for the EU, US and other major markets are available on request for your market entry file. |
UN38.3 / MSDS Transport FilesBattery transport test reports and MSDS are prepared for air, sea and express shipment of lithium batteries. |
100% Pre-Shipment TestingEvery unit is function-tested (charging, AC output, UPS switchover) before packing; test records can be supplied on request. |
Please contact our sales team for the current certificate list and test reports for your destination market.
Home & Office BackupUPS-style 10ms switchover keeps routers, computers, lighting and security equipment alive during grid outages. |

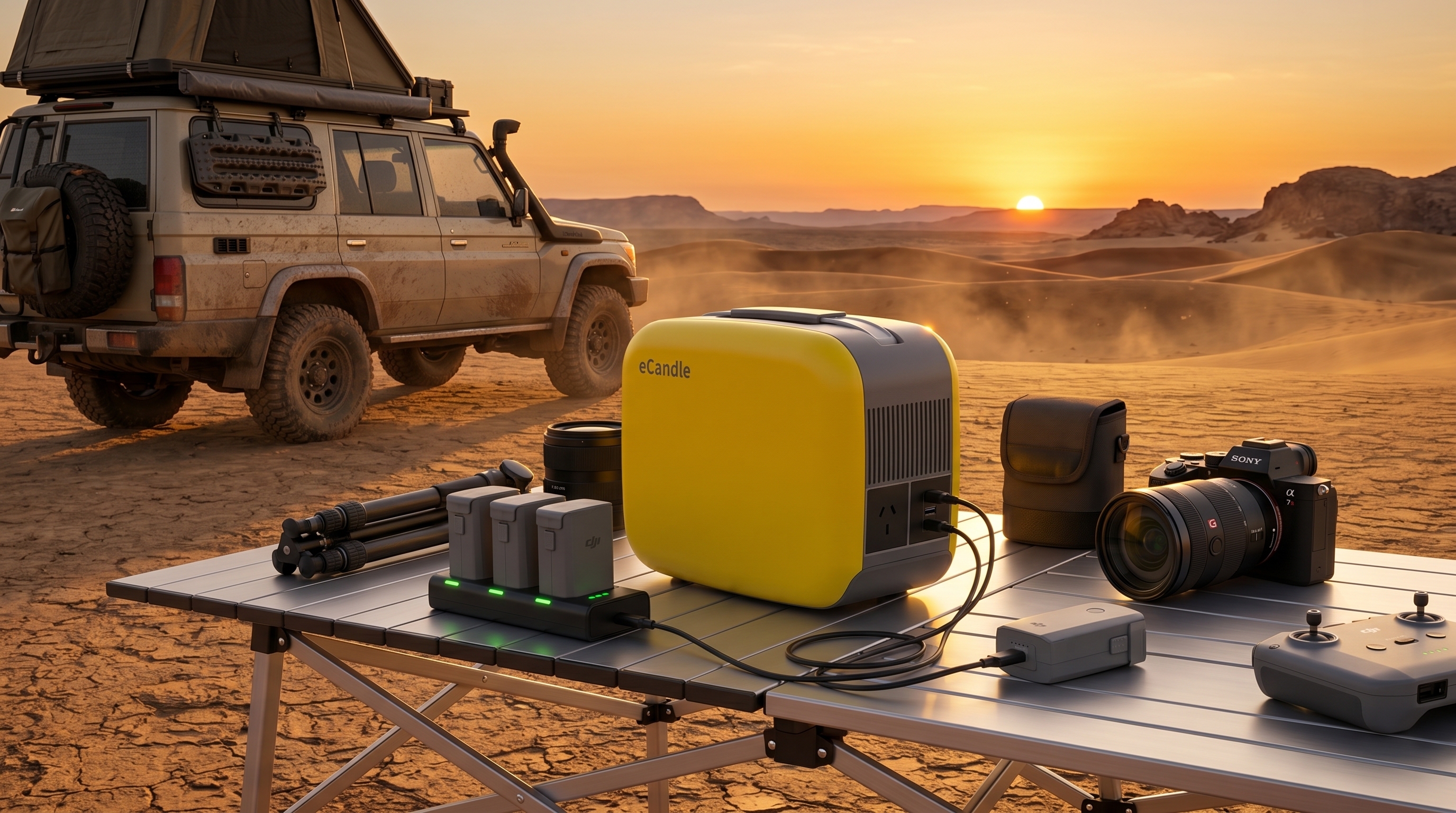

Camping, RV & MarinePortable 8kg format powers coolers, cookers, lights and electronics on campsites, boats and road trips. |

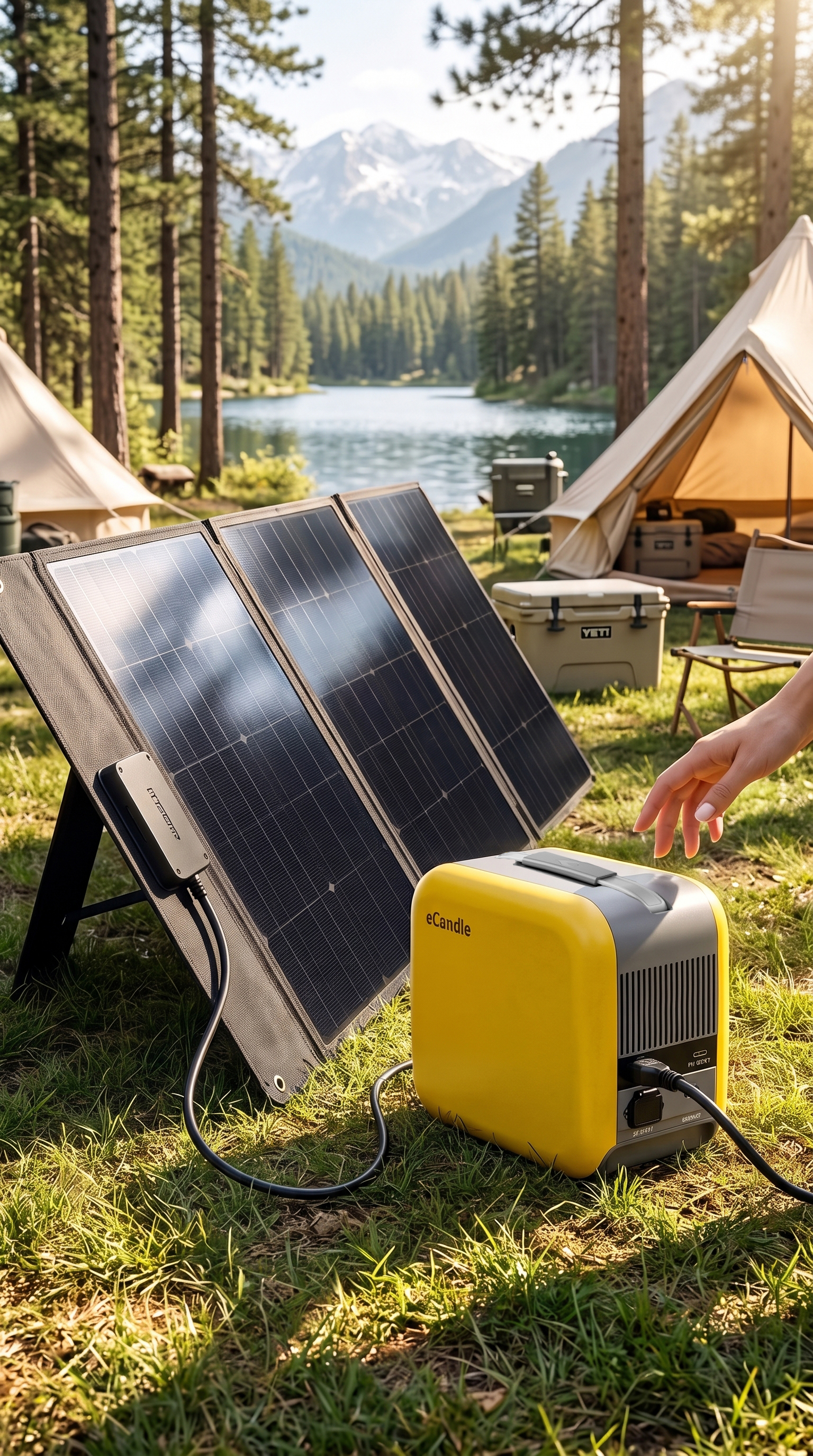

Off-Grid Solar SystemsPair with 12–60VDC solar panels for a complete off-grid solar power system with built-in MPPT charging. |
Telecom & Field EquipmentReliable temporary power for telecom cabinets, CCTV, testing instruments and outdoor work sites. |
A: We usually quote within 24 hours after we receive your inquiry. For urgent cases, please call us or tell us in your email so that we treat your inquiry as a priority.
A: We want to support our customers without a strict MOQ request — sample orders are welcome for testing and evaluation.
A: Sample orders need about 7 days; mass production takes 3–5 weeks depending on order quantity and configuration.
A: Yes. We welcome OEM and ODM orders — logo printing, housing colour, output configuration (AC+AC / AC+DC) and packaging can be customised.
A: Beian offers 1–5 years of warranty depending on the product and configuration. Please confirm the exact warranty term for your order with our sales team.
A: With 1004Wh of LiFePO4 energy and a 500W pure sine wave output, typical runtime is about 2 hours at full 500W load (calculated value — actual runtime depends on load, temperature and battery condition). Typical loads: laptops, routers, cameras, lights, mini fridges, small power tools and medical devices. Please keep the total continuous load within 500W.
A: Three ways: AC mains (90–280VAC, 45–65Hz), solar panels through the built-in MPPT input (12–60VDC), and a vehicle cigar-lighter port.
A: The MPPT input accepts 12–60VDC. Panel voltage and maximum array power depend on the final configuration — please contact our engineers with your panel datasheet and we will confirm the recommended array size before you order.
A: Beian operates an ISO 9001 quality system. CE / FCC / RoHS documents and UN38.3 / MSDS transport files are available on request — please tell us your destination market and we will send the applicable certificate pack.
A: T/T is recommended; PayPal and Western Union are also acceptable. Sample orders are paid in full against the PI; mass orders are 30% deposit with the balance settled before shipment. Please contact us for a formal quotation and proforma invoice.
