| Parameter | Value |
|---|---|
| Model | EVD250E |
| Brand | ALQ |
| Rated Current | 250 A |
| Max. Switching Voltage | 200 V DC |
| Rated Load Voltage (Ue) | 12 - 200 V DC |
| Power Contact Arrangement | SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) |
| Auxiliary Contact Arrangement | SPST-NO / SPST-NC / None (optional) |
| Coil Voltage Rating (Optional) | 12 V DC / 24 V DC / 48 V DC |
| Coil Characteristics | Single coil |
| Dimensions (L x W x H) | 72.5 x 38.5 x 68.0 mm |
| Mounting Type | Modular |
| Contact Resistance (Initial) | Typical value 1 mΩ |
| Operating Temperature | -40°C to +85°C |
| Origin | Jiangsu, China |
| Warranty | 1 year |
| Typical Applications | Electric vehicles, industrial vehicles, EV charging, energy storage, solar inverters, frequency conversion equipment |
Rated 250 A continuous current at 200 V DC, with up to 2,000 A max cut-off capacity (at 80 V), delivering reliable high-current DC switching for EV and industrial power systems.
Engineered for high-cycle operation: 200,000 mechanical cycles and up to 50,000 make cycles on capacitive load (24 V DC), reducing maintenance and replacement costs.
Operates from -40°C to +85°C with 5%-95% RH humidity tolerance, suitable for harsh outdoor, vehicle-mounted and industrial environments.
Withstands 20 G sinusoidal vibration (80-2,000 Hz) and 20 G shock (1/2 sine, 11 ms), remaining stable in moving and high-vibration applications.
Silver alloy contacts with typical 1 mΩ initial contact resistance. Polarity-free design enables flexible, error-proof wiring in the field.
Quick and consistent actuation: close time max 30 ms (incl. bounce 5 ms), release time max 10 ms, for responsive system control and safety shutdown.

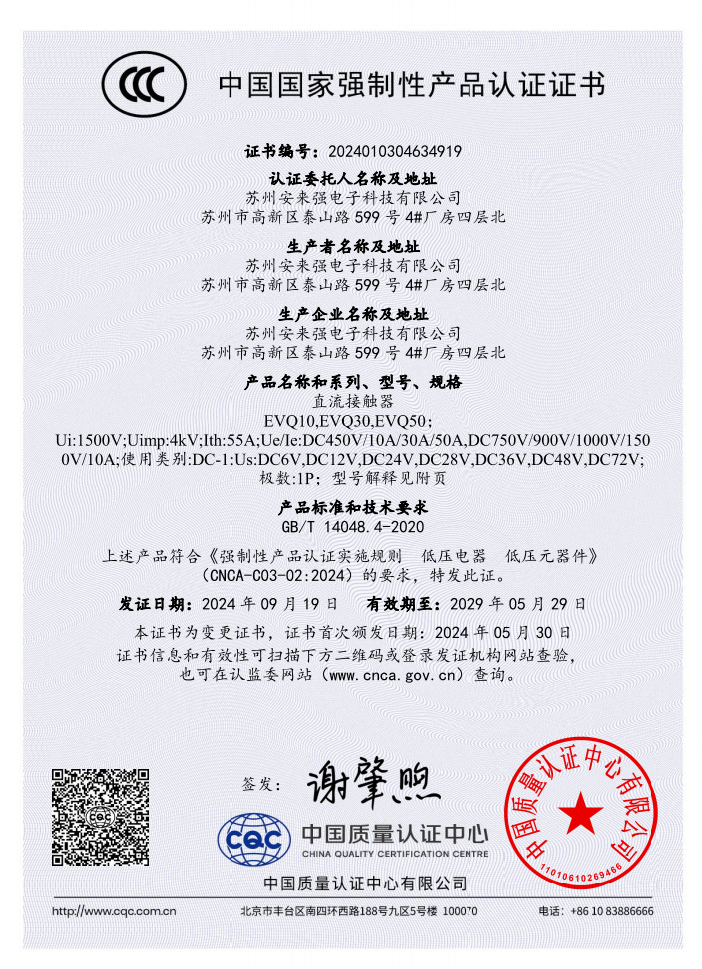

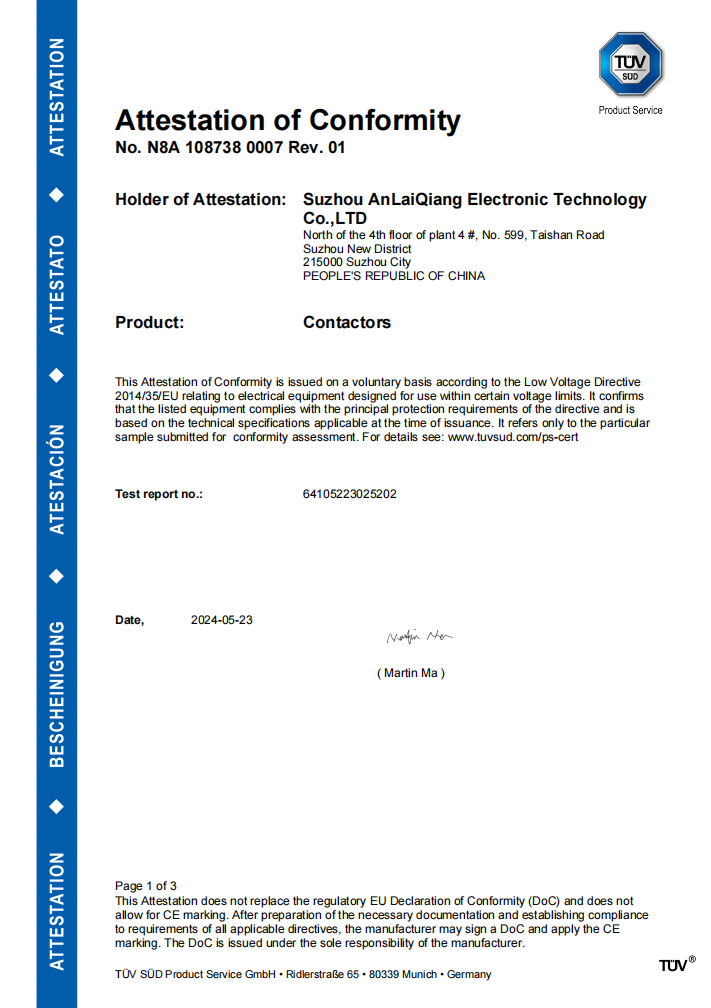

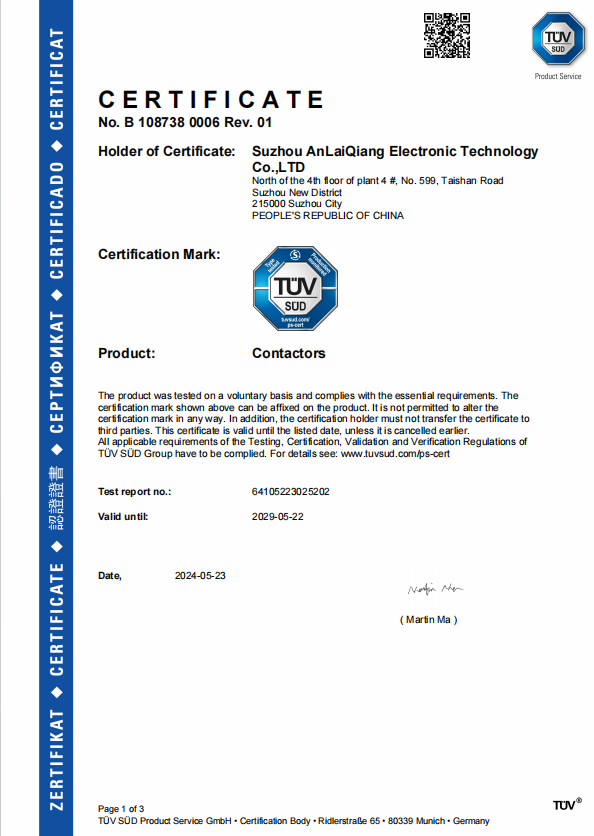

CCC, TUV SUD, and CE (LVD) certified. Quality management system conforms to GB/T19001-2016 / ISO9001:2015.
Industrial Vehicles Electric forklifts, electric pallet trucks, electric aerial work platforms, intelligent logistics systems, automated guided vehicles (AGV), cold chain logistics equipment, industrial robots, electric tools, and electric golf carts. |
DC Charging Equipment Chargers, small DC charging piles, monoblock DC charging piles, split-type DC charging piles (group charging), ultra-fast DC charging piles, and integrated DC charging piles for heavy-duty trucks. |
Energy Storage System Large-scale energy storage (generation-side, grid-side), medium-scale energy storage (industrial & commercial), small-scale energy storage (residential), and photovoltaic solar energy systems. |
Frequency Conversion Equipment High-voltage frequency converters, power conversion systems (PCS), industrial rectifier power supplies, motor drives, and UPS systems. |
A: The EVD250E is rated for 200 V DC maximum switching voltage and 250 A continuous current. It supports load voltages from 12 V to 200 V DC, making it suitable for low-to-medium voltage EV, charging and industrial DC systems.
A: The contactor is available with 12 V DC, 24 V DC or 48 V DC coil voltage. Choose the coil voltage that matches your battery-management system or control circuit.
A: The power contact uses an SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) arrangement. An optional auxiliary contact is available in SPST-NO, SPST-NC or none for status feedback.
A: Yes. The EVD250E is designed for electric vehicles, energy storage systems (ESS), solar inverters, DC chargers and power conversion systems. Its compact footprint and single-coil drive make it ideal for space-constrained battery cabinets.
A: The EVD250E features a sealed epoxy construction with vibration resistance up to 20 G and shock resistance up to 20 G, ensuring reliable operation in moving vehicles and industrial equipment.
A: Submit your required specifications (current rating, coil voltage, auxiliary contact type, and quantity) through the inquiry form or contact us via WhatsApp. Our engineers will respond within 24 hours. Sample lead time is [to verify with factory].
