| Parameter | Value |
|---|---|
| Model | BA-ESS-B280S16-F (product name: BA-ESS-14.336KWH) |
| Brand / Origin | BEIAN — Beian New Energy Co., Ltd., Jiangsu, China |
| Battery Type | LiFePO4 cell 3.2V / 280Ah |
| Array Mode | 16S1P |
| Rated Voltage | 51.2V — operating voltage 40–58.4V |
| Capacity | Rated capacity 280Ah (minimum ≥266Ah) · system energy ≈14.34kWh (51.2V × 280Ah = 14,336Wh) |
| Charge Voltage / Cut-off | Charge voltage 58.4V · discharge cut-off voltage 40V |
| Charge / Discharge Current | Standard charging 100A · standard discharging 100A · max continuous discharge 150A |
| Internal Resistance | IR ≤ 0.21 mΩ |
| Cycle Life | 6,000 cycles (0.5C charge / 0.5C discharge, to rated capacity) |
| Communication | RS485 / CAN / RS232 — parallel networking via dual RS485 (address 2–15) |
| Indicators & Ports | ALM / RUN / SOC LEDs, LCD panel (MENU / Enter / Down / ESC), 2 × 5V USB, DIP, DI/DO |
| Grid Connection / Cooling | On-grid · air cooling |
| Protection Class | IP64 |
| Operating Temperature | Charging: 0℃ ~ +55℃ · Discharging: -20℃ ~ +55℃ |
| Storage Temperature | 1 month: -20℃ ~ +45℃ · 1 year: 0℃ ~ +35℃ · humidity 65±20% RH |

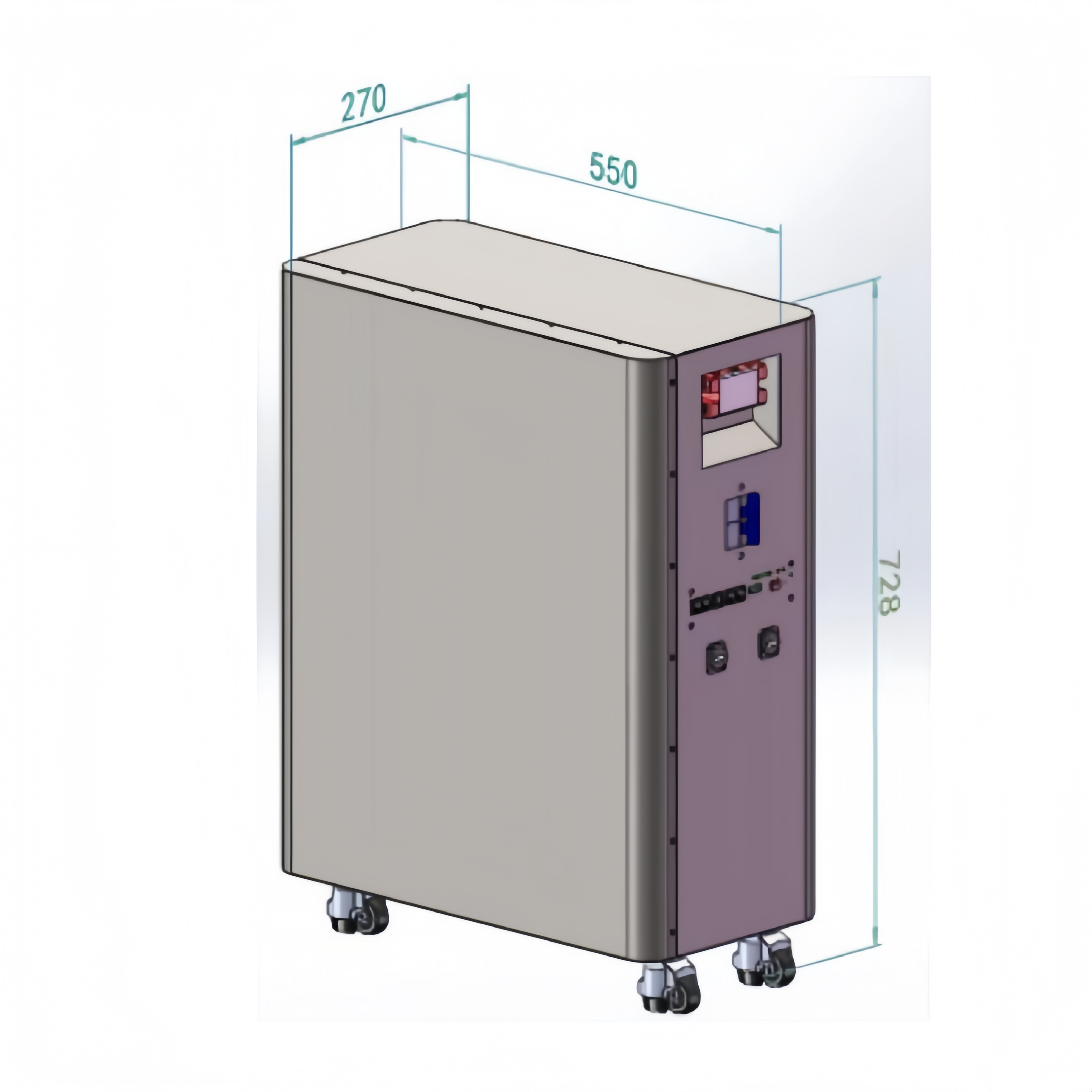

| Dimension (L×W×H) | 550 × 270 × 728 mm — wheeled base for easy movement |
| Weight | 120 ± 1 kg (264.55 lb) |

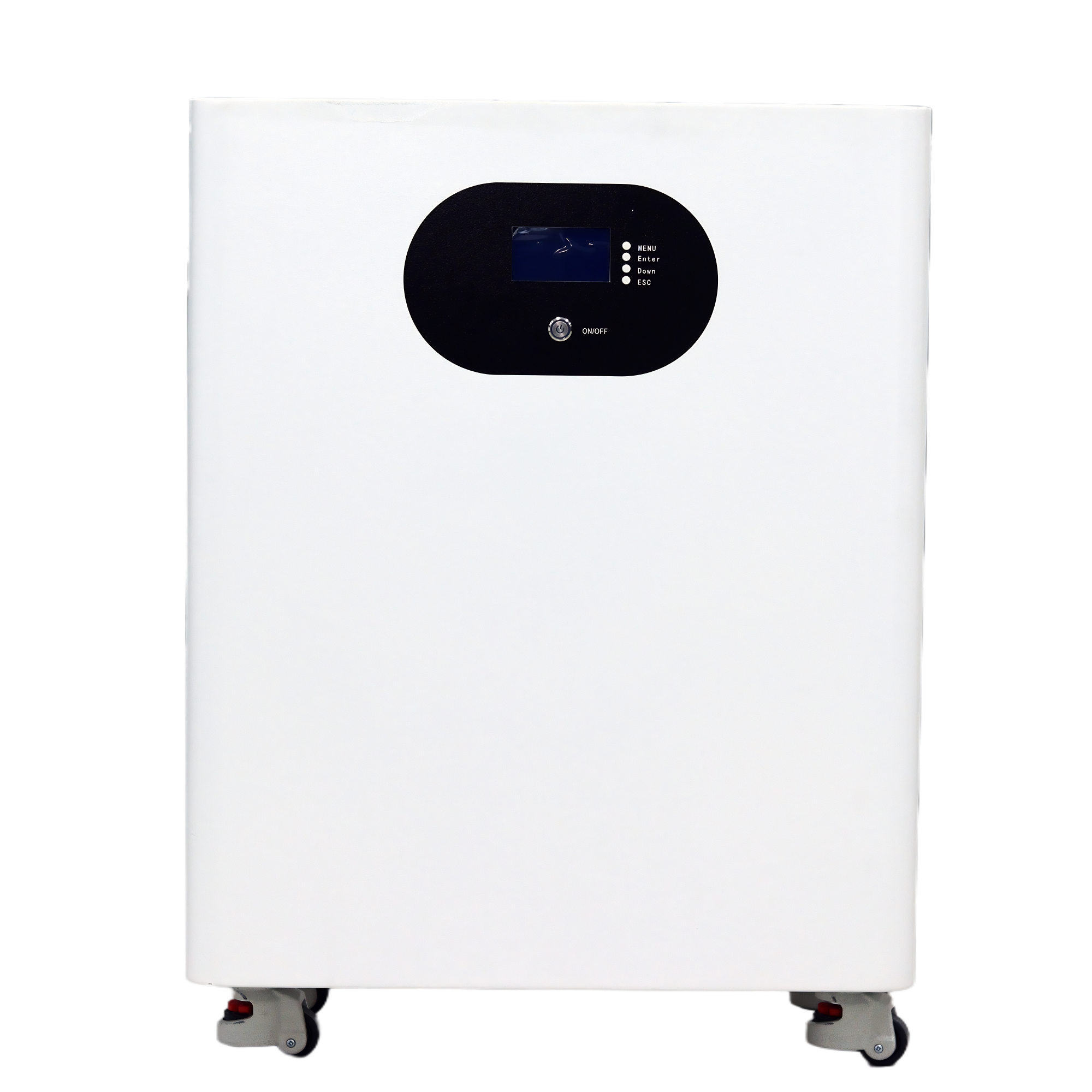

Front view — clean white cabinet with LCD panel (MENU / Enter / Down / ESC) and ON/OFF button on a wheeled base
|

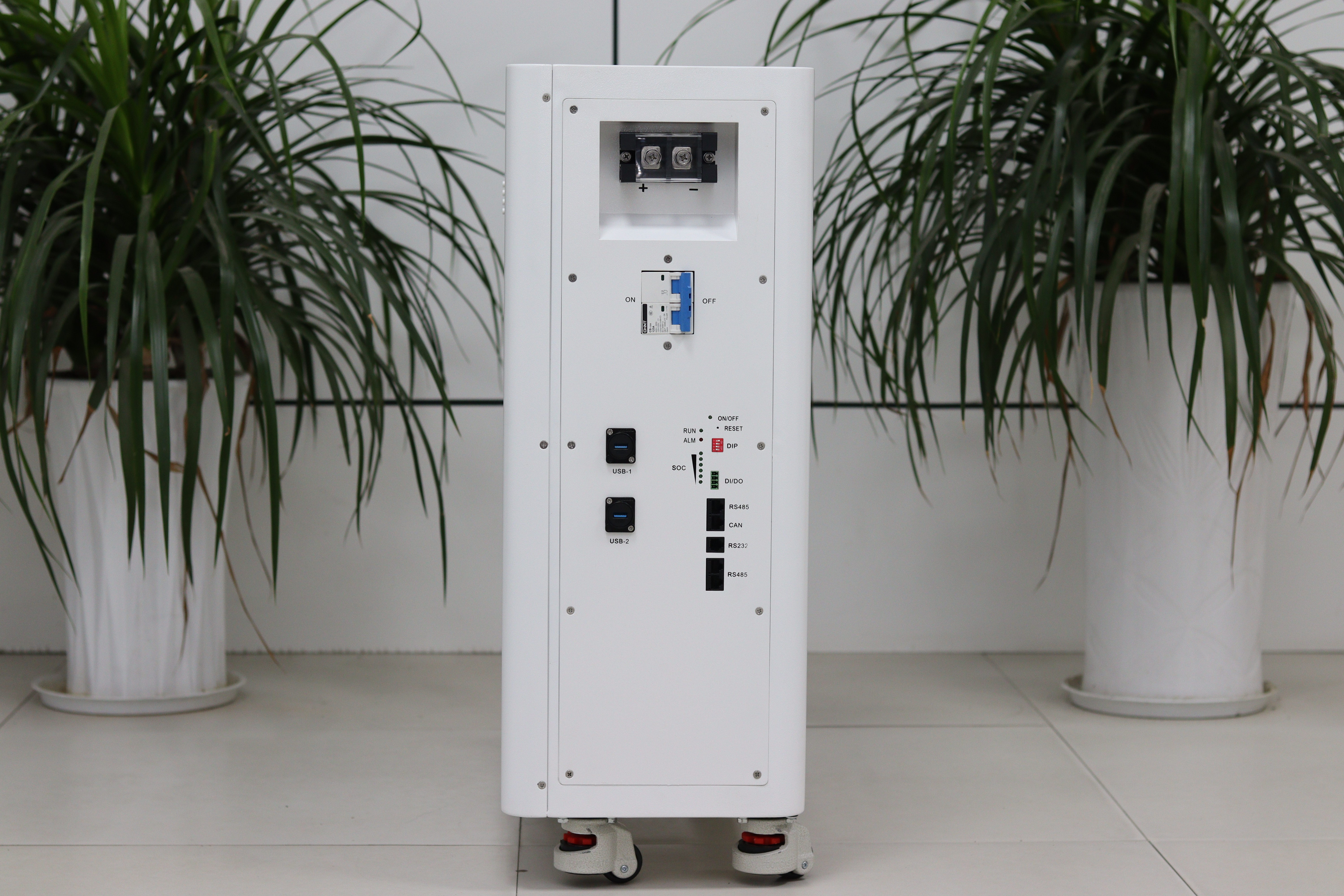

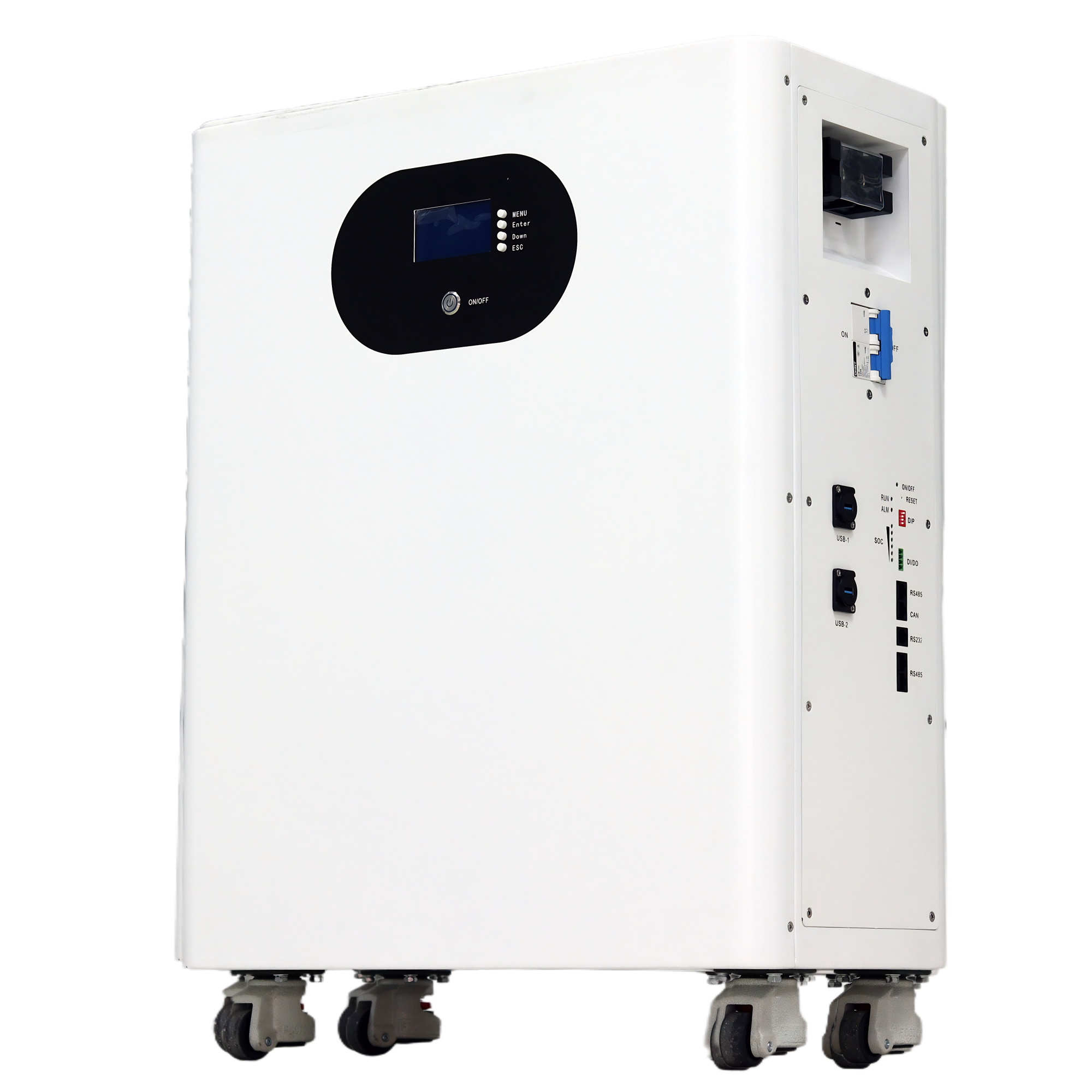

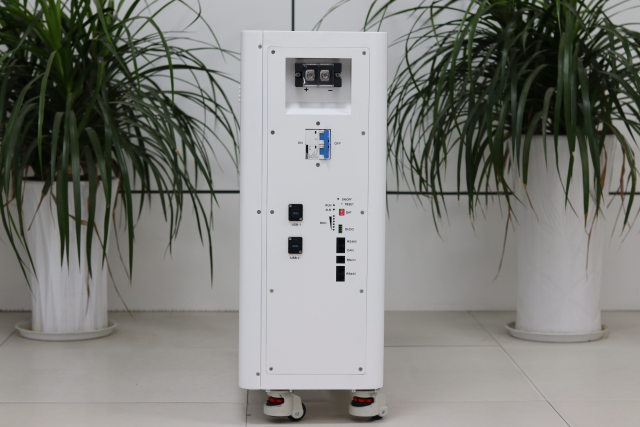

Side view — built-in breaker (ON/OFF), USB ports, DIP / DI-DO, RS485 / CAN / RS232 terminals and battery disconnect window
|

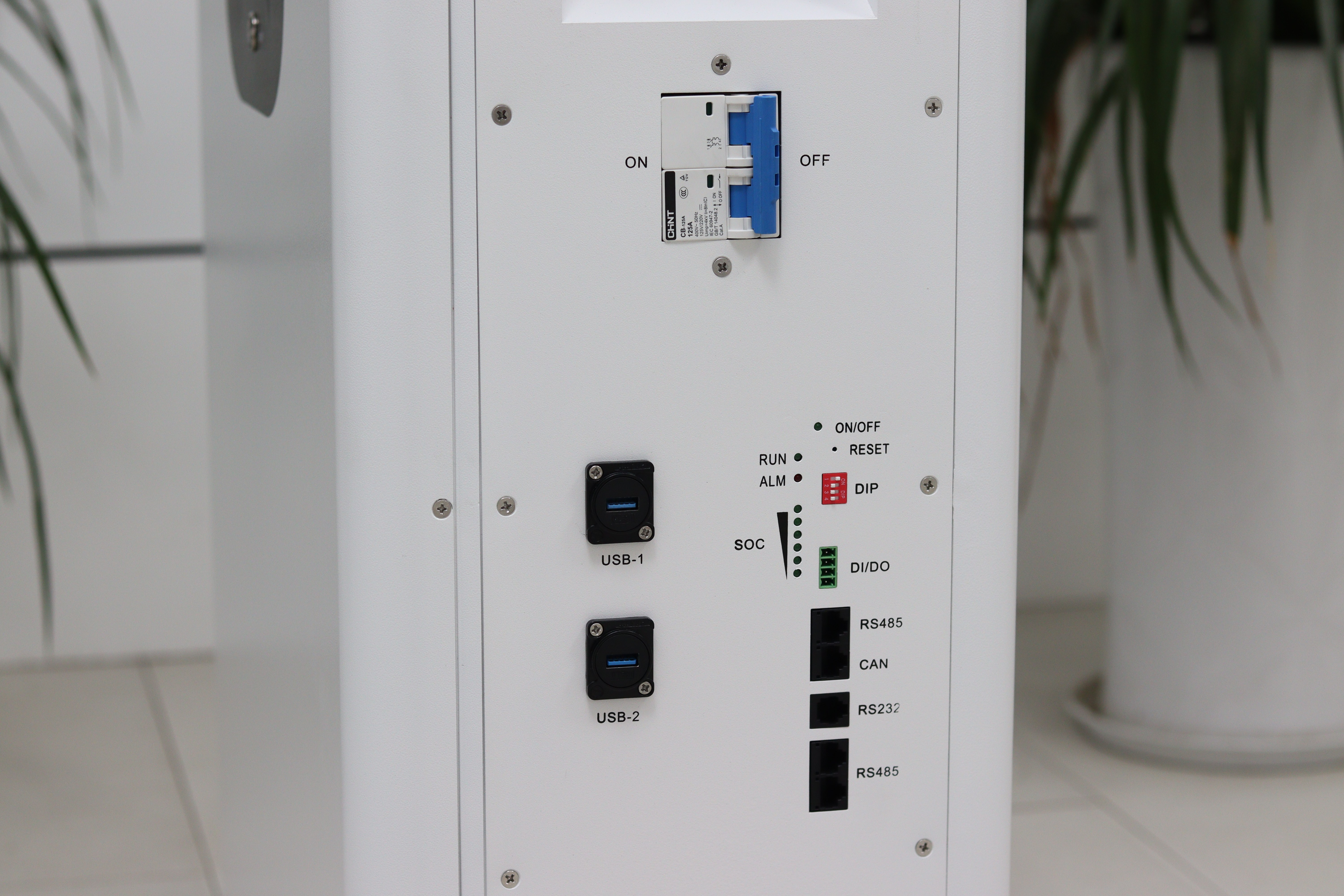

Communication panel — breaker, 2 × USB, RUN / ALM / SOC indicators, DIP address switch, DI/DO and RS485 / CAN / RS232 ports
|

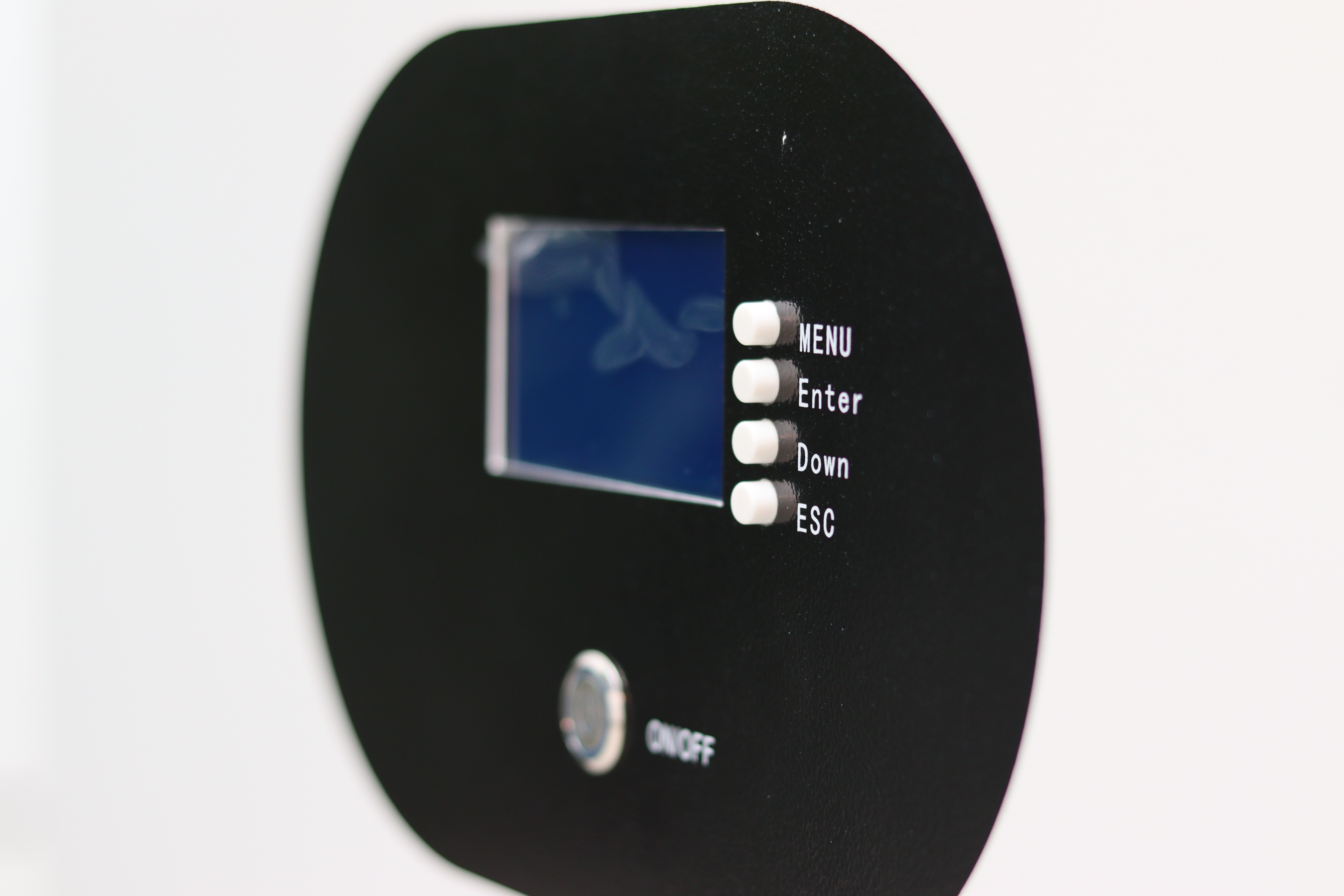

LCD control panel — MENU / Enter / Down / ESC keys and ON/OFF button for local setting and status readout
|
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 6,000-Cycle LiFePO4 Chemistry | 3.2V/280Ah LiFePO4 cells in a 16S1P array deliver 6,000 cycles at 0.5C charge/discharge — more than 16 years of daily cycling, sharply lowering the cost per kWh over its lifetime. |
| ✅ True Mobile Design | Integrated casters under a 120kg compact cabinet (550 × 270 × 728mm) — one person can reposition the whole 14.3kWh system, ideal for rental, demo and flexible home layouts. |
| ✅ High Current Capability | 100A standard charge/discharge with 150A max continuous discharge and IR ≤ 0.21mΩ — pairs with 5–8kW hybrid inverters with headroom for surge loads. |
| ✅ Full Communication Suite | RS485 / CAN / RS232 plus DIP address switch and DI/DO — drops straight into mainstream inverter protocols, and up to 14 units can be daisy-chained in parallel (addresses 2–15). |
| ✅ Multiple Built-In Protections | Charge over-voltage, discharge over/under-voltage, over-current, high-temperature, short-circuit, reverse-connection and ESD protection, IP64 enclosure with air cooling — safe for on-grid home installation. |
| ✅ Accurate SOC / SOH & Local Control | LCD panel with MENU / Enter / Down / ESC keys, ON/OFF button and ALM / RUN / SOC indicators — accurate state-of-charge and state-of-health calculation with easy local operation. |
Typical scenarios for the BA-ESS-B280S16-F 51.2V on-grid mobile battery box.
|
On-Grid Home Storage
Pair with a 5–8kW hybrid inverter for self-consumption of solar and time-of-use bill saving |
Backup Power
14.3kWh keeps refrigerators, lighting, routers and key loads running through outages |
Mobile / Rental Energy
Wheeled cabinet moves between rooms, job sites, events and demo installations |
|
Small Commercial Peak Shaving
Shops and offices trim demand charges with parallel units up to ~200kWh (14 units) |
PV Self-Consumption
Store midday solar surplus and discharge in the evening with 0.5C daily cycling |
System Integration
RS485 / CAN / RS232 and DI/DO make it easy to embed into ESS cabinets and monitoring platforms |
| Item | Detail |
|---|---|
| Brand / Origin | BEIAN — Beian New Energy Co., Ltd., a high-tech new energy enterprise based in Suzhou, Jiangsu, China |
| Ordering Model | BA-ESS-B280S16-F (product name BA-ESS-14.336KWH) — 51.2V / 280Ah / ≈14.3kWh, 16S1P LiFePO4 |
| Selling Units | Single item · single package size 550 × 270 × 728cm · single gross weight 120.000 kg |
| System Options | System energy range 50–100kW class applications · system voltage range 40–58.4V · parallel expandable (addresses 2–15) |
| MOQ | 1 unit |
| Lead Time | Typically 7–15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Warranty | 1 year (see site warranty policy) |
Q1. The title says "3.2V/280Ah" — is this really a 3.2V battery?
A: No. 3.2V/280Ah is the LiFePO4 cell specification. Inside the cabinet, 16 cells are connected in series (16S1P) to form a 51.2V rated battery system with 280Ah capacity, operating between 40V and 58.4V (charge voltage 58.4V, discharge cut-off 40V).
Q2. How much energy does it actually store?
A: 51.2V × 280Ah = 14,336Wh ≈ 14.3kWh (the product name BA-ESS-14.336KWH reflects this). Note the spec table lists "14.366KWh" — the mathematically consistent figure for 51.2V/280Ah is 14.336kWh; request the datasheet to confirm the exact naming before ordering.
Q3. Can several units work together?

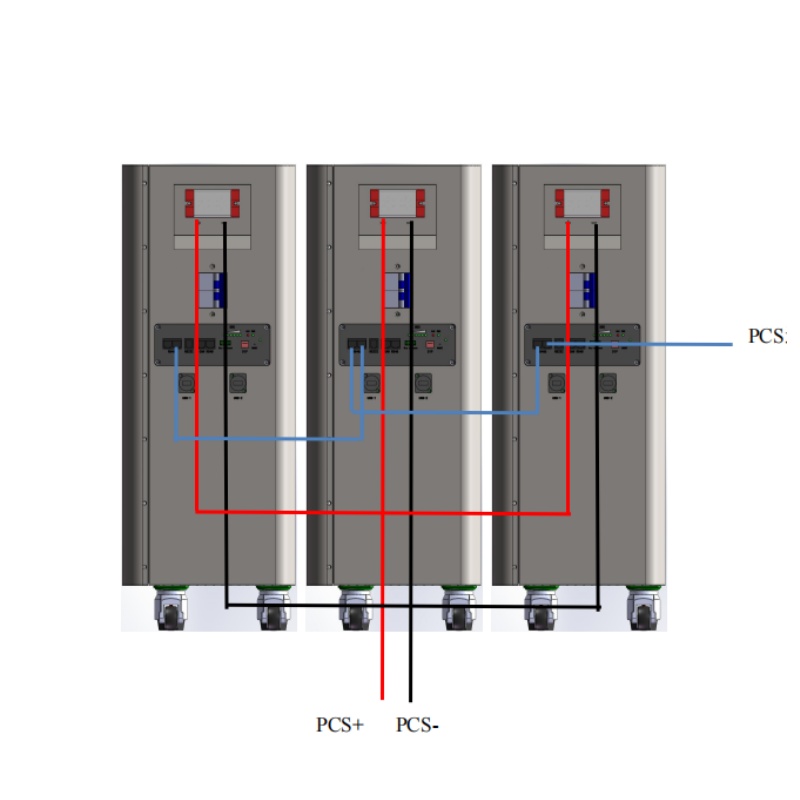

A: Yes. The system is parallel-ready: the monitoring device acts as the host and polls data by address, with the address setting range 2–15. In parallel operation, the two RS485 interfaces are daisy-linked with standard network cables — see the parallel connection diagram above.
Q4. What charge/discharge currents does it support?
A: Standard charging and discharging current is 100A, with up to 150A max continuous discharge and internal resistance ≤0.21mΩ. Cycle life is 6,000 cycles at 0.5C charge / 0.5C discharge to rated capacity.
Q5. How do I monitor and control it?
A: Through RS485, CAN or RS232, plus a DIP address switch and DI/DO terminals. Locally, the LCD panel (MENU / Enter / Down / ESC keys) and ON/OFF button provide status readout and settings, with ALM / RUN / SOC indicator lights and two 5V USB ports on board.
Q6. How is it shipped and how easy is it to move?
A: Each unit ships as a single item in a plywood crate (package size 550 × 270 × 728cm, gross weight 120kg). The cabinet itself rides on four casters, so despite its 120±1kg weight it can be repositioned by one person without a forklift.
