Model
|

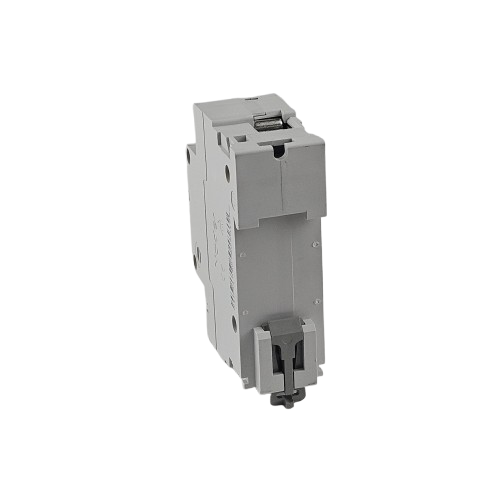

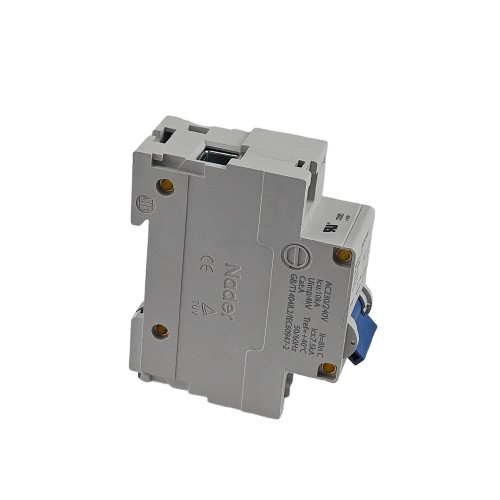

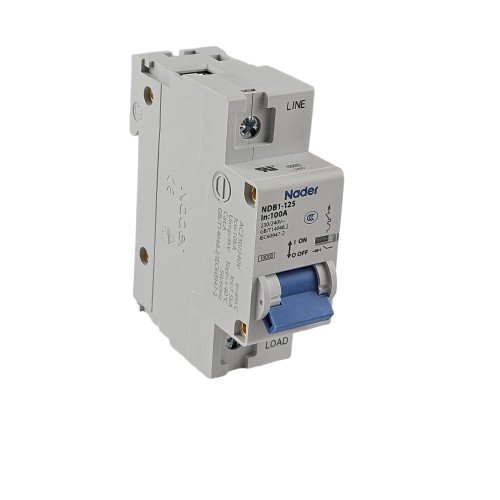

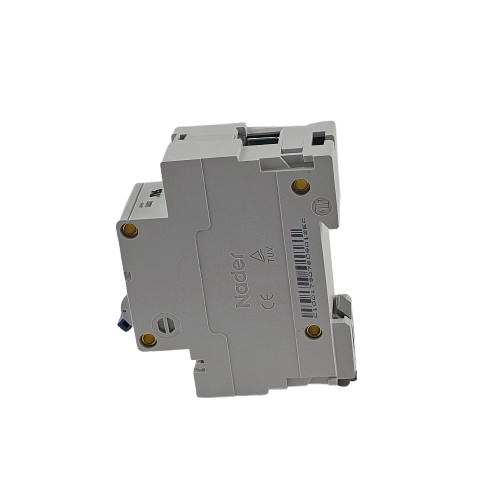

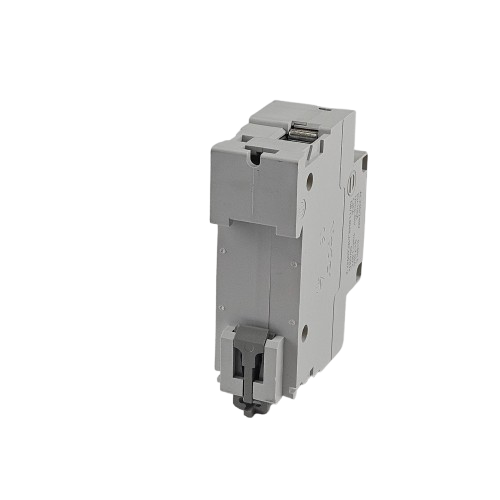

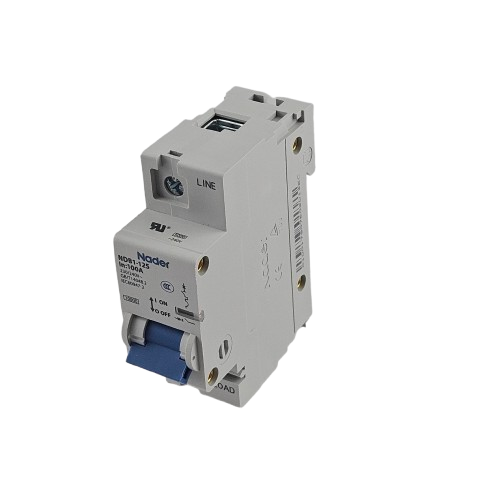

NDB1-125C
|
|
Rated voltage (V)
|
AC230/240V
|
|
Rated current (A)
|
6,10,16,20,25,32
|
|
Type of residual current release
|
AC type, electronic type
|
|
Rated residual operating current Ain (mA)
|
1P 2P 3P 4P
|
|
Rated insulation voltage Ui (V)
|
AC440
|
|
Rated impulse withstand voltage Uimp (kV)
|
4
|
|
Rated short - circuit breaking capacity (GB/T16917.1) lcn (kA)
|
4.5/6
|
|
Rated ultimate short -circuit breaking capacity (GB/T14048.2) lcu (kA)
|
4.5/6
|
|
Rated residual making and breaking capacity Δlm (A)
|
500
|
|
Rated operating frequency (Hz)
|
50/60
|
|
Mechanical and electrical life (times)
|
Mechanical life 10000times/ Electrical life6000times
|
|
Wiring method
|
Tunnel - type
|
|
Wiring capacity (mm)
|
1-10
|
|
Terminal screw / torque N·m
|
1.2
|
