Product number
|
Rated Current Amps
|
Breaking Capacity
|
It(A's) Total clearPre-arcing
|
Total clear
|
Watts loss 100%In
|
|
EVU1.5-10
|
10
|
20kA@150VDC
L/R=10ms
|
10
|
29
|
0.8
|
|
EVU1.5-20
|
20
|
41
|
114
|
1.4
|
|
|
EVU1.5-30
|
30
|
92
|
257
|
2.7
|
|
|
EVU1.5-40
|
40
|
163
|
457
|
3.2
|
|
|
EVU1.5-50
|
50
|
255
|
714
|
3.7
|
|
|
EVU1.5-60
|
60
|
367
|
1029
|
4.2
|
|
|
EVU1.5-50-A
|
50
|
25kA
@150VDC
L/R=10ms
|
204
|
571
|
2.8
|
|
EVU1.5-60-A
|
60
|
394
|
823
|
3.4
|
|
|
EVU1.5-80-A
|
80
|
653
|
1829
|
4.4
|
|
|
EVU1.5-100-A
|
100
|
1020
|
2857
|
5.6
|
|
|
EVU1.5-150-A
|
150
|
2296
|
6429
|
9.0
|
|
|

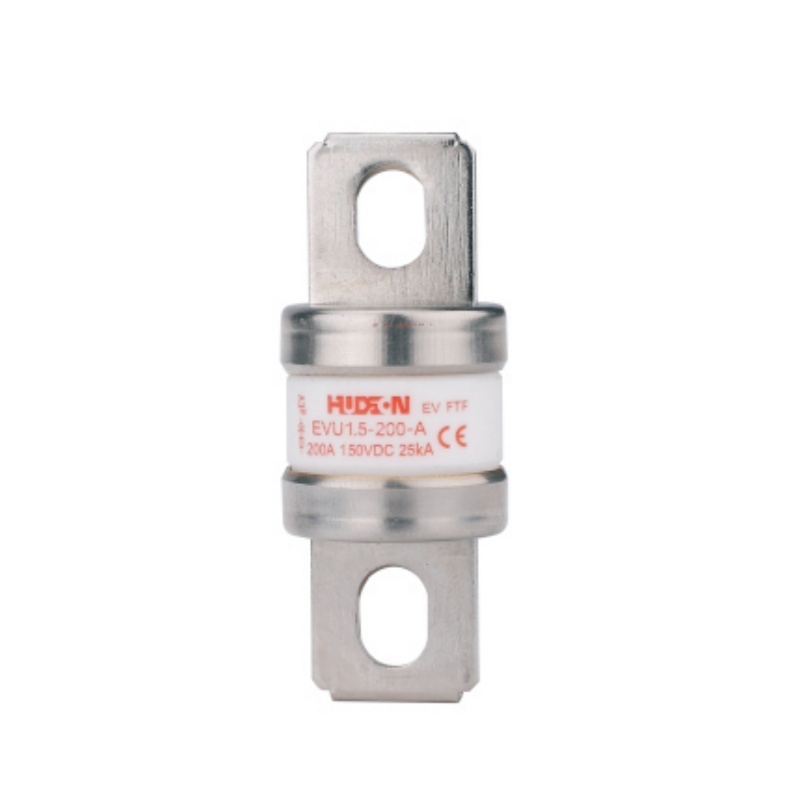

EVU1.5-200-A
|
200
|
4082
|
11429
|
12.5
|
|
|
EVU1.5-250-A
|
250
|
6378
|
17857
|
16.0
|
|
|
EVU1.5-300-A
|
300
|
9184
|
25714
|
20.8
|
|
|
EVU1.5-400-A
|
400
|
16327
|
45714
|
28.2
|
|
|
EVU1.5-300-B
|
300
|
7347
|
20571
|
18.0
|
|
|
EVU1.5-400-B
|
400
|
13061
|
36571
|
23.8
|
|
|
EVU1.5-450-B
|
450
|
16531
|
46286
|
29.0
|
|
|

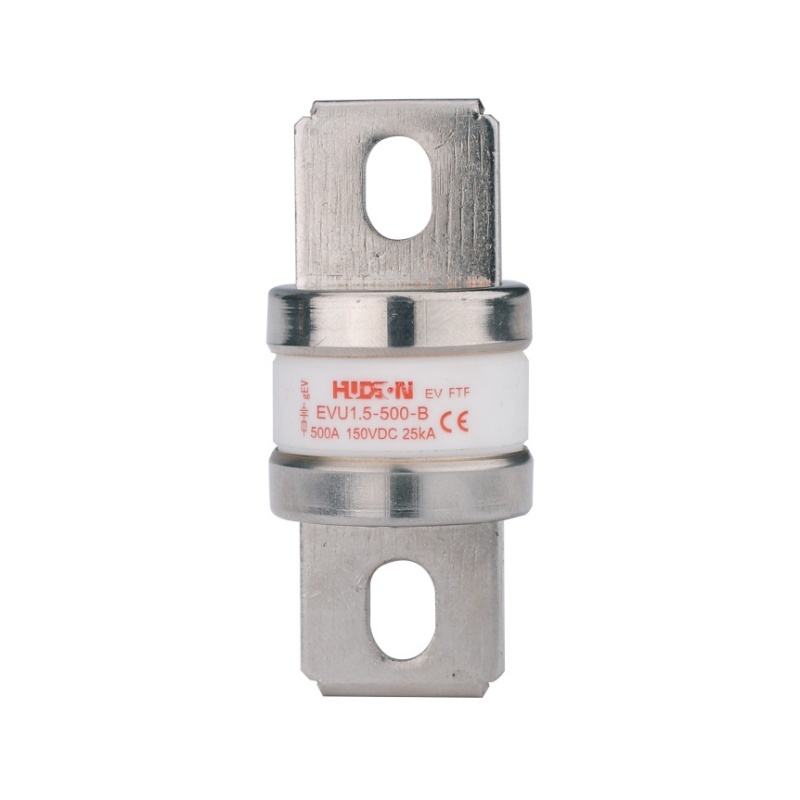

EVU1.5-500-B
|
500
|
25510
|
71429
|
37.0
|
|
|
EVU1.5-600-B
|
600
|
36735
|
102857
|
48.0
|
|
|
EVU1.5-500-C
|
500
|
20408
|
57143
|
34.0
|
|
|

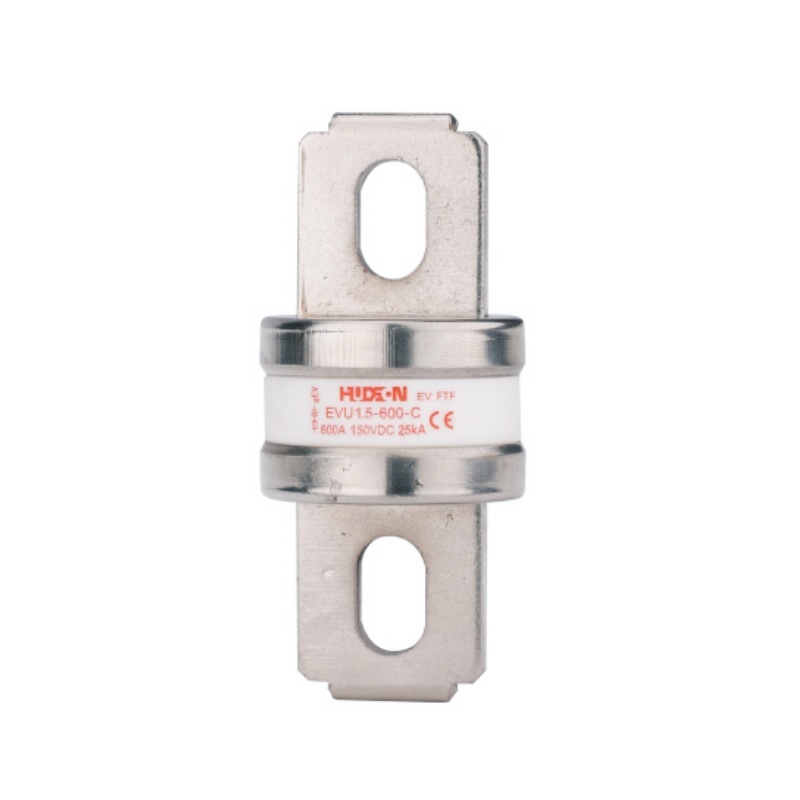

EVU1.5-600-C
|
600
|
29388
|
82286
|
44.0
|
|
|
EVU1.5-700-C
|
700
|
50000
|
140000
|
56.0
|
|
|
EVU1.5-800-C
|
800
|
65306
|
182857
|
70.0
|
|
|
EVU1.5-1000-C
|
1000
|
102041
|
285714
|
91.0
|
