| Inverter Model | |
| Model | Growatt SPF 6000 ES Lite |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Inverter Output | |
| Rated Power | 6000VA / 6000W |
| Parallel Capability | Not support (standalone operation) |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical, 20ms Max |
| Solar Charger | |
| Maximum PV Array Power | 8000W |
| MPPT Range @ Operating Voltage | 75VDC ~ 450VDC |
| Number of Independent MPP Trackers / Strings per MPP Tracker | 1 / 1 |
| Max. Input Current per MPP Tracker | 30A |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 100A |
| Start-up PV Voltage | 120VDC ± 10VDC |
| AC Charger | |
| Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170-180 VAC (For personal computers) ; 90-100 VAC (For home appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| Physical | |
| Protection Degree | IP20 (indoor) |
| Dimension (W / H / D) | 365 / 275 / 120 mm |
| Net Weight | 8.5 kg |
| Operating Environment | |
| Humidity | 5% to 95% Relative humidity (Non-condensing) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 60°C |
| Altitude | < 2000 m |
| Warranty | 2 years |
Plug-and-Play Terminal for PV PortMC4-style PV connectors are pre-wired for fast, error-free installation — no extra tools or junction boxes needed on the roof. |
Smart MPPT Solar ChargerOne independent MPPT tracker with 30 A max input current extracts more energy from the PV string across the full 75-450 VDC range. |
Maximum PV Input Voltage up to 500VDCWide 75-450 VDC MPPT operating range with 500 VDC open-circuit tolerance gives more flexibility in series-string design. |
Configurable Grid or Solar Input PriorityChoose SBU / SOL / UTI priority modes on the LCD to match your self-consumption, backup or peak-shaving strategy. |
Compact Standalone DesignWall-mountable, all-in-one 6 kW inverter-charger for single-unit off-grid or hybrid backup systems without parallel complexity. |
Dust-Proof Filter for Harsh EnvironmentBuilt-in dust filter protects internal components in dusty, sandy or semi-outdoor installation environments. |

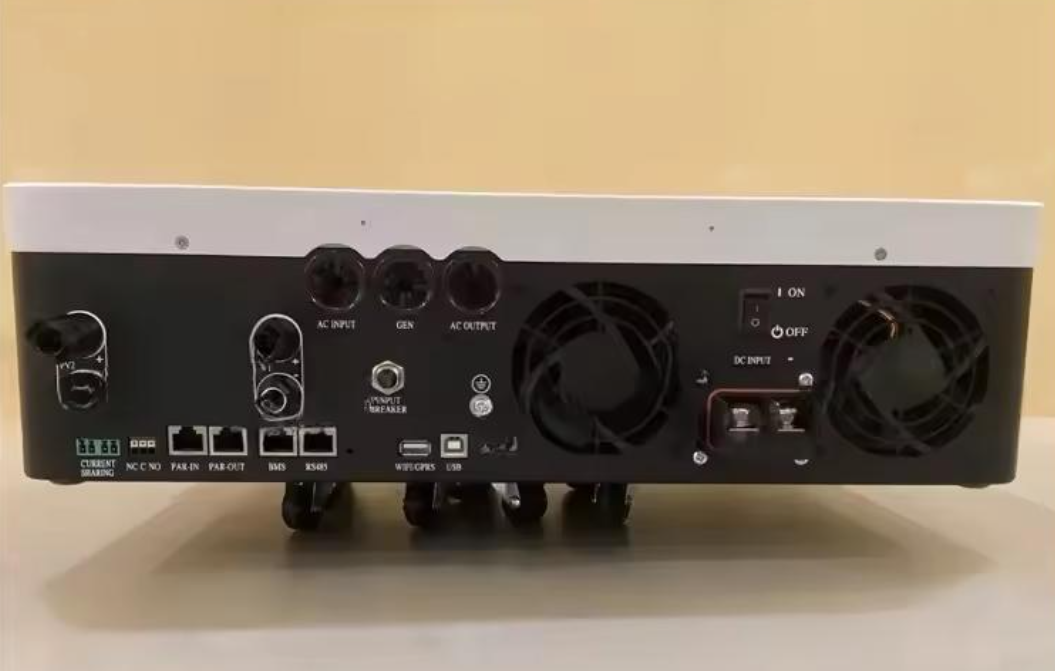

Two AC Input Terminals with Integrated Transfer SwitchTwo separate AC inputs (utility + generator) feed an integrated transfer switch for seamless 10 ms UPS-style switchover during blackouts. |
|
Off-Grid Solar Home SystemsSingle-inverter off-grid solution for remote homes, cabins and rural electrification where the grid is unavailable or unreliable. |
Hybrid Solar + Battery BackupPair with LiFePO4 batteries for self-consumption, peak shaving and blackout backup with 10 ms seamless transfer. |
Small Commercial & Light IndustrialSingle 6 kW unit covers small offices, telecom sites, farm outbuildings and workshops needing reliable off-grid or backup power. |
Generator-Hybrid Backup PowerTwo AC inputs (utility + generator) with integrated transfer switch for long-runtime backup in areas with frequent outages. |
A: We usually quote within 24 hours after we receive your inquiry. For urgent cases, please call us or tell us in your email so that we treat your inquiry as a priority.
A: We want to support our customers without a strict MOQ request — sample orders are welcome.
A: Yes, we welcome sample orders to test and check quality before bulk purchase.
A: Sample needs about 7 days; mass production time needs 3-5 weeks, depending on order quantity.
A: Yes. We welcome OEM and ODM orders.
A: The Growatt SPF-6000-ES-Lite carries a standard 2-year factory warranty. Extended warranty options are available on request.
A: We accept T/T and L/C.
A: We hold CE / FCC / ROHS / UN38.3 / MSDS for our battery products. The Growatt SPF-6000-ES-Lite carries Growatt's own CE / TUV / UL certifications for the inverter itself.
A: We ship samples by DHL, UPS, FedEx or TNT. For mass orders, you can choose sea or air shipment.
A: You are warmly welcome. Our office is located in Suzhou, China, with the integration facility near Guangzhou / Shenzhen.
