Model
|

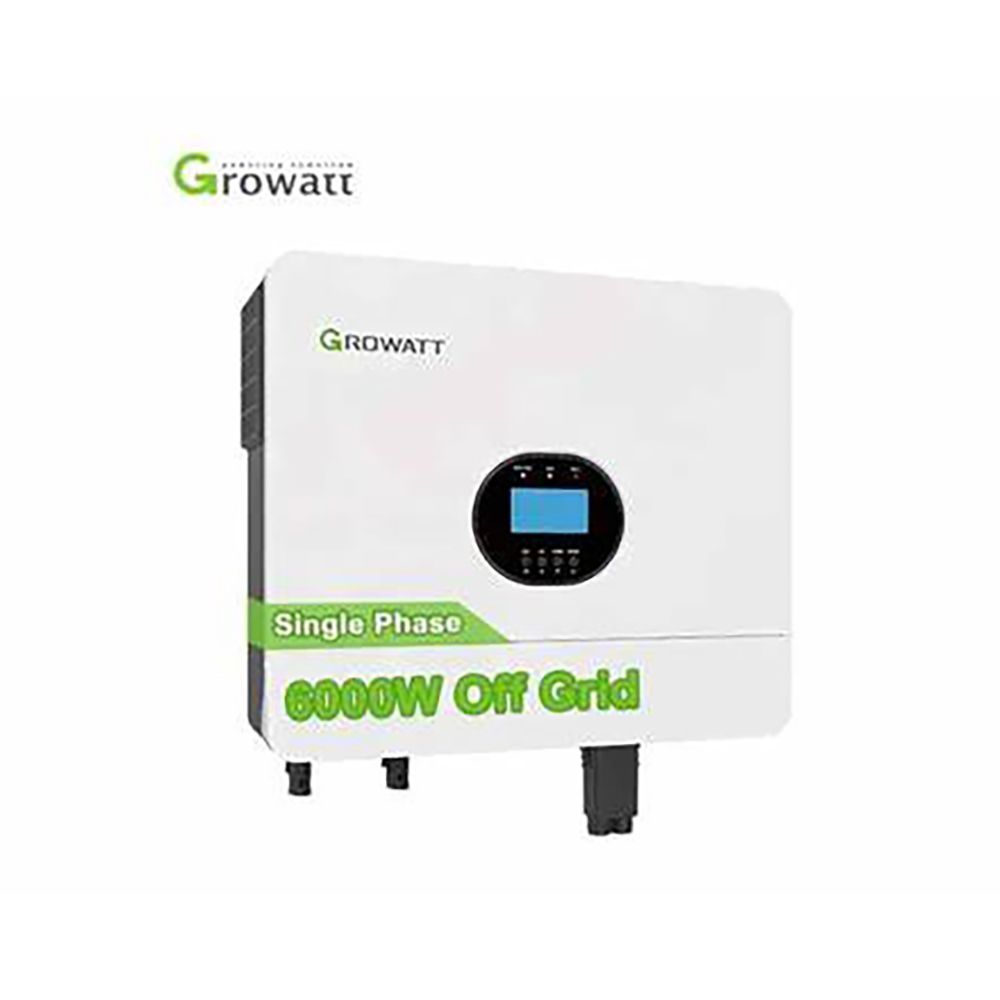

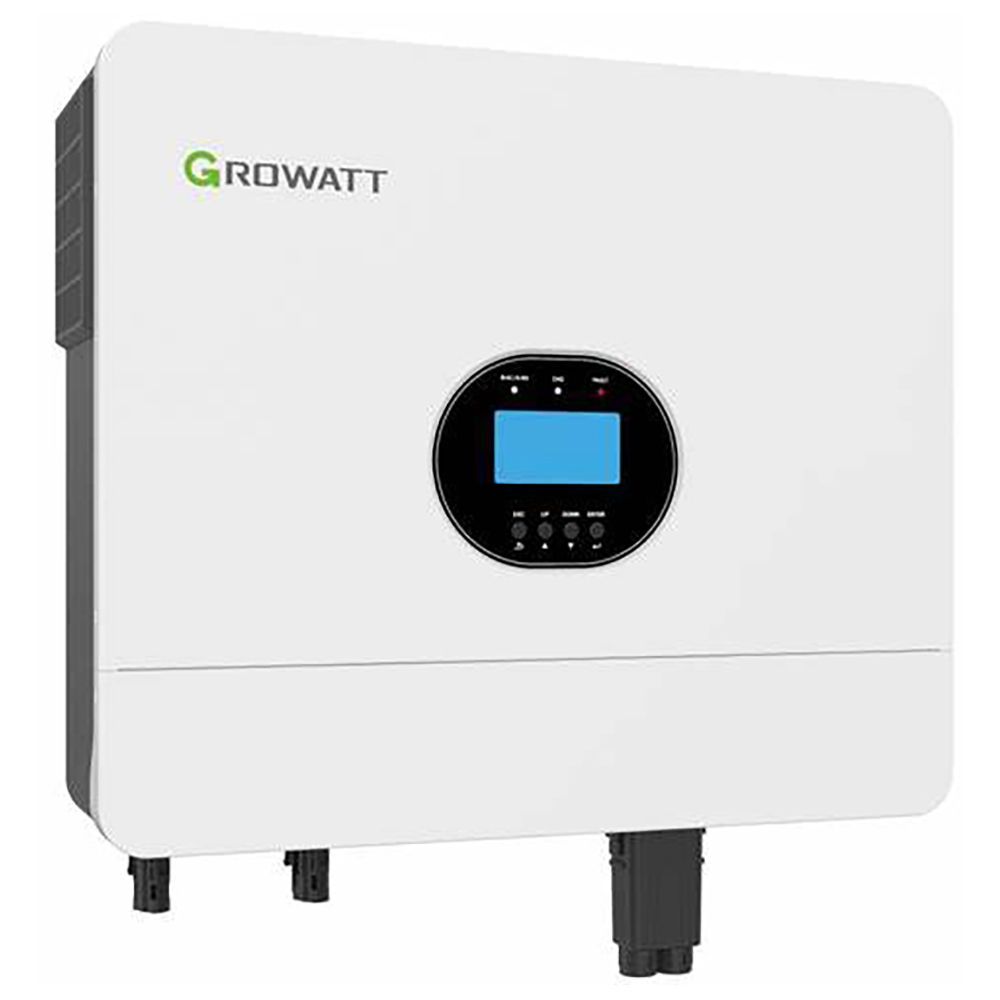

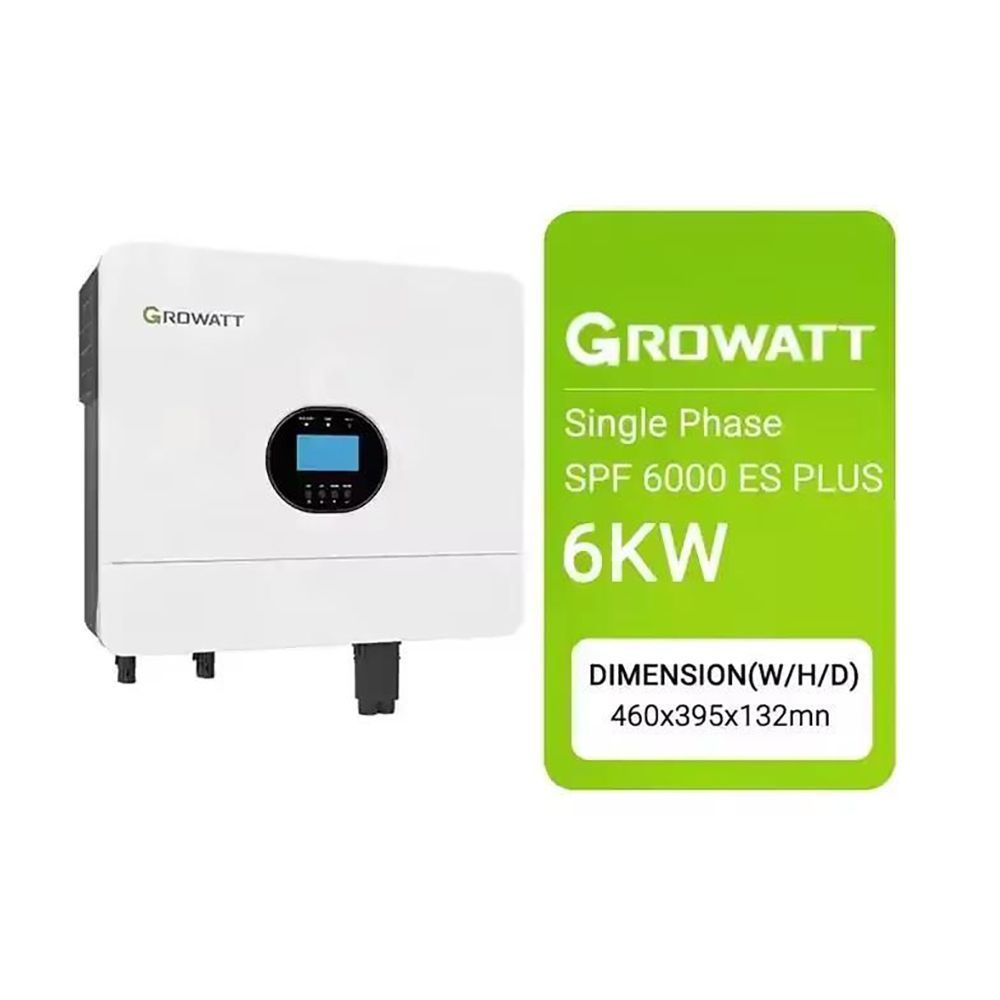

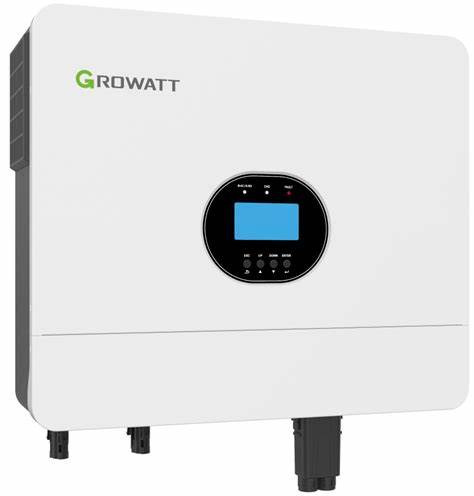

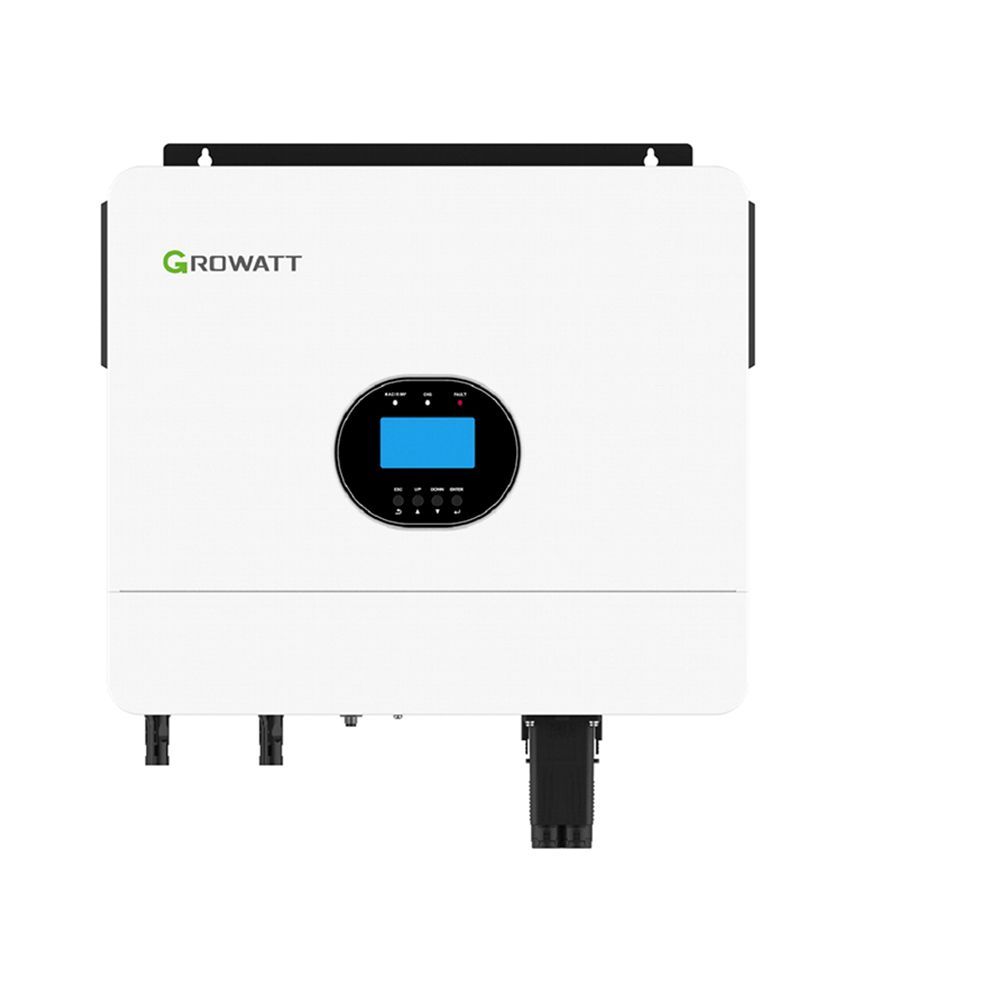

SPF 6000 ES Plus
|
|
|
Battery voltage
|
48VDC
|
|
|
Battery type
|
Lithium/Lead-acid
|
|
|
Inverter output
|
||
|
Rated power
|
6000VA/6000W
|
|
|
Parallel capability
|
Yes, 6 units maximum
|
|
|
AC voltage regulation
(battery mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge power
|
12000VA
|
|
|
Efficiency (peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer time
|
10ms typical, 20ms Max
|
|
|
Solar charger
|
||
|
Maximum PV array power
|
8000W
|
|
|
MPPT range @ operating voltage
|
120VDC ~ 450VDC
|
|
|
Number of independent MPP trackers/
strings per MPP tracker
|
2/1
|
|
|
Max. input current per MPP tracker
|
16A
|
|
|
Maximum PV array open circuit voltage
|
500VDC
|
|
|
Maximum solar charge current
|
100A
|
|
|
AC charger
|
||
|
Charge current
|
80A
|
|
|
AC input voltage
|
230VAC
|
|
|
Selectable voltage range
|
170-280 VAC (For personal computers) ; 90-280 VAC (For home appliances)
|
|
|
Frequency range
|
50Hz/60Hz (Auto sensing)
|
|
|
Physical
|
||
|
Protection degree
|
IP20
|
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
|
Net weight
|
13.5kg
|
|
|
Operating environment
|
||
|
Humidity
|
5% to 95% Relative humidity(Non-condensing）
|
|
|
Altitude
|
<2000m
|
|
|
Operating temperature
|
0°C - 55°C
|
|
|
Storage temperature
|
-15°C - 60°C
|
|
