item
|
value
|
|
Brand Name
|
HONGFA
|
|
Certification
|
UL CUL VDE TUV CQC
|
|
Material
|
ceramic copper silver
|
|
Model Number
|

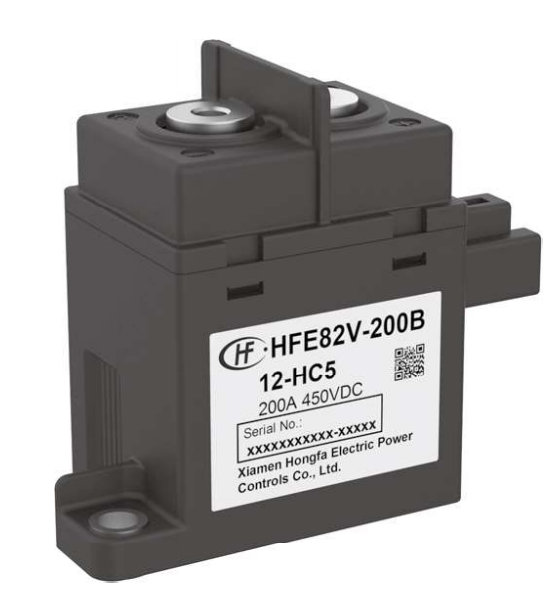

HFE82V-200B
|
|
Place of Origin
|
China
|
|

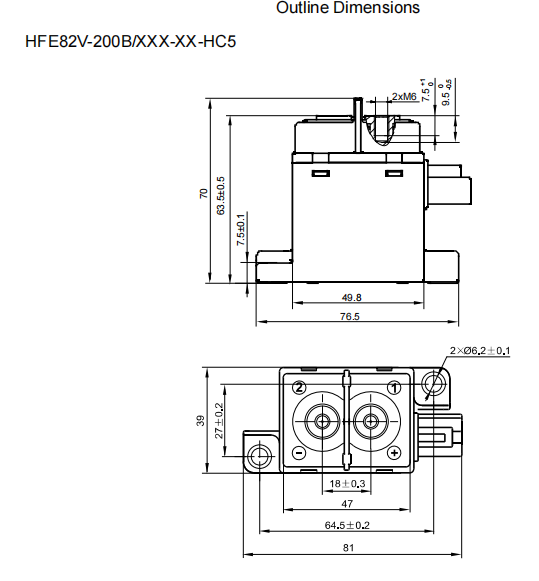

Dimensions
|
81.0x39.0x70.0
|
|
Resistance
|
0.5mohm
|
|

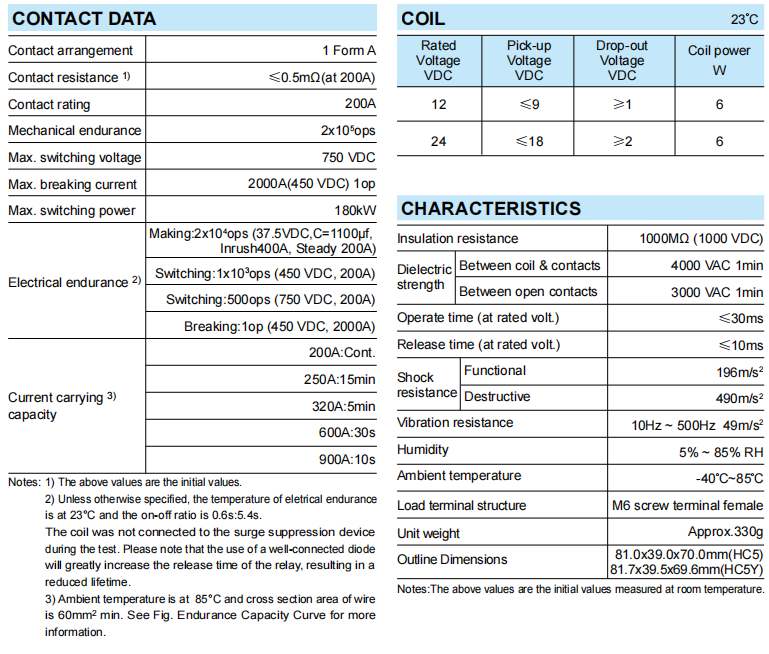

Contact rating
|
200A
|
|
Load voltage
|
750V
|
|
Max breaking current
|
2000A
|
|
Max switching power
|
180kW
|
|
Coil Voltage
|
12 24V
|
|
Coil power
|
6W
|
|
Main relay
|
Precharge relay
|
Fast charge relay
|
Normal change relay
|
Auxilliary relay
|
|
|
Passenger vehicle EV/PHEV
|
HFE82V-100D HFE82V-150D HFE82V-150F HFE82V-200B HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C
HFE82V-400M HFE85V-300M |
HFE82V-20 HFE80V-20B HFE80V-20C HFE80V-20D
|
HFE82V-150D HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C HFE85V-300M HFE82V-400M
|
HFE82V-40 HFE80V-40
|
HFE82V-40 HFE80V-20B HFE80V-20C HFE80V-40
|
|
Passenger vehicle HEV
|
HFE82V-60 HFE82V-100D HFE82V-150D
|
HFE80V-20B HFE80V-20C HFE80V-20D
|
HFE80V-20B HFE80V-20C HFE80V-40
|
||
|
Bus
|
HFE82V-250 HFE82V-250C HFE82V-300C HFE82V-600
|
HFE80V-20B HFE80V-20C HFE80V-20D
|
HFE82V-300C HFE82V-400M HFE82V-600
|
HFE82V-40 HFE80V-40
|
HFE82V-20 HFE82V-40 HFE82V-100D
|
|
Mild electric vehicle (Low speed EV)
|
HFE82V-60 HFE82V-60B HFE82V-150D HFE82V-200B HFE80V-200
|
HFE80V-20B HFE80V-20C HFE80V-20D
|
HFE80V-200
|
HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60
|
HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60
|
|
Logistics vehicle
|
HFE82V-150D HFE82V-200B HFE82V-250C
|
HFE80V-20B HFE80V-20C HFE80V-20D
|
HFE80V-20B HFE80V-20C HFE80V-40
|
HFE80V-20B HFE80V-20C HFE80V-20D
|
|
Relay type
|
HFE82P-20 HFE82P-60B HFE85P-150 HFE88P-150 HFE82P-200B HFE85P-250 HFE88P-250
HFE82P-250 HFE85P-300 HFE88P-350 HFE82P-250C |
|||
