HONGFA HFE82P-20 DC Contactor 20A

       Modle Paramenter name

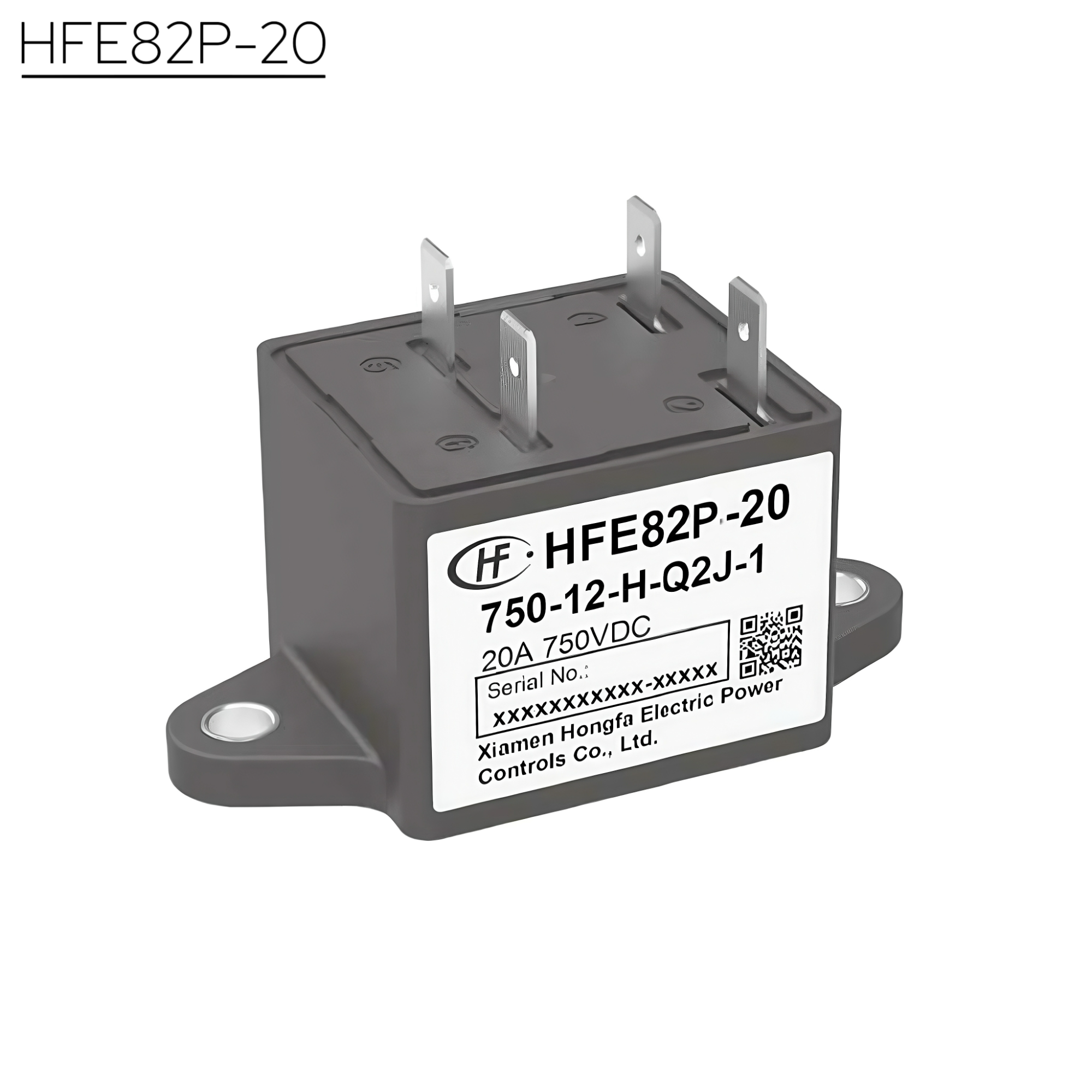

HFE82P-20

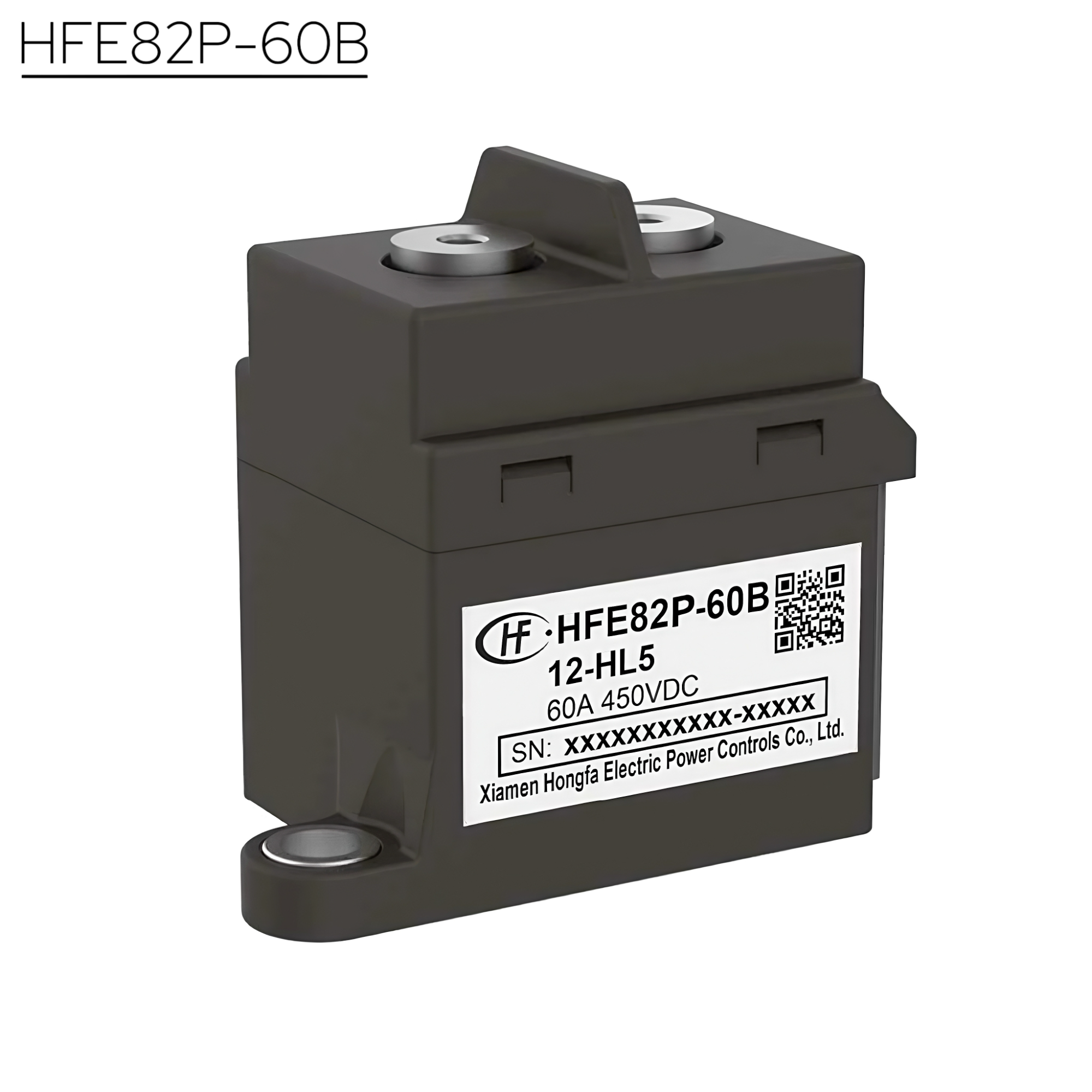

HFE82P-60B

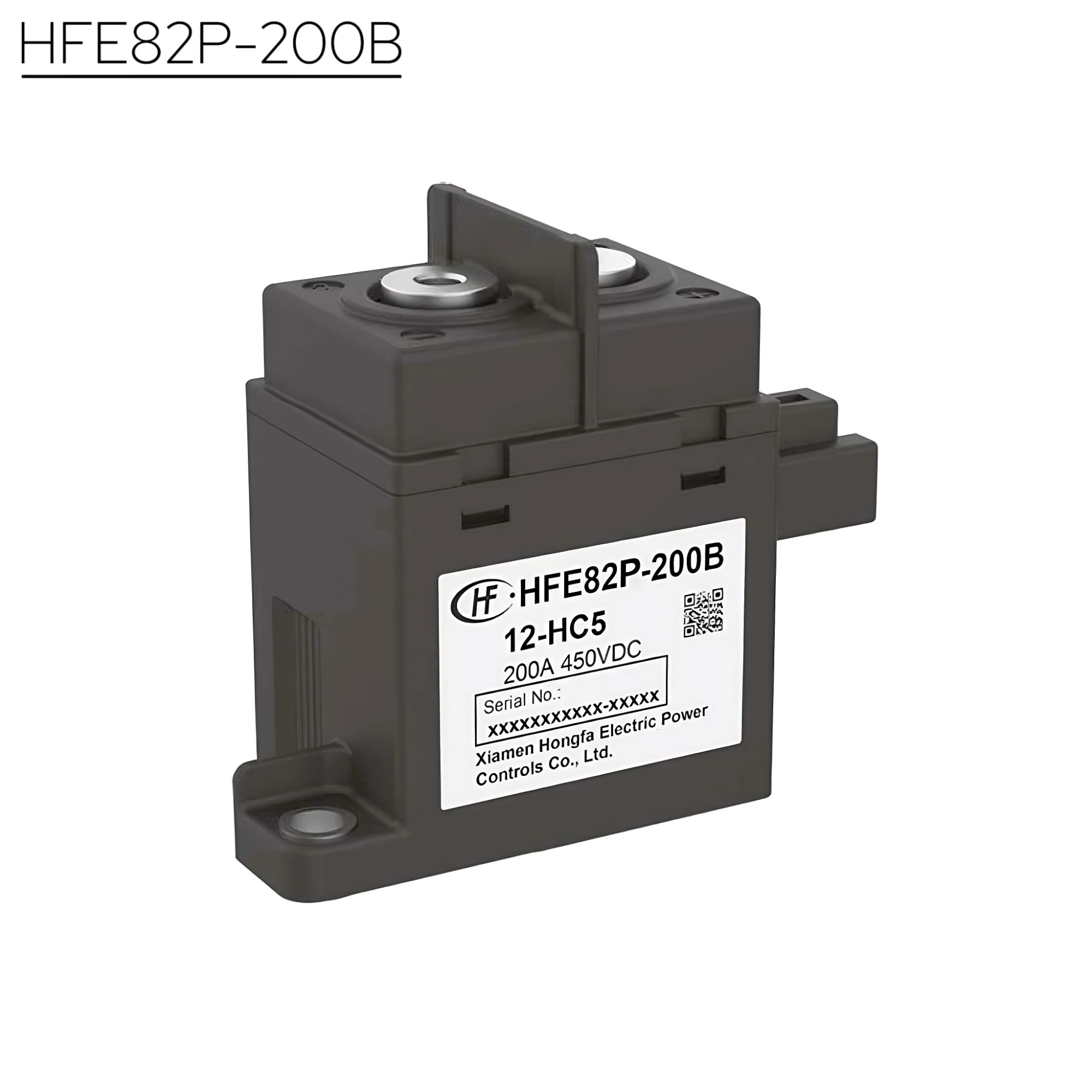

HFE82P-200B

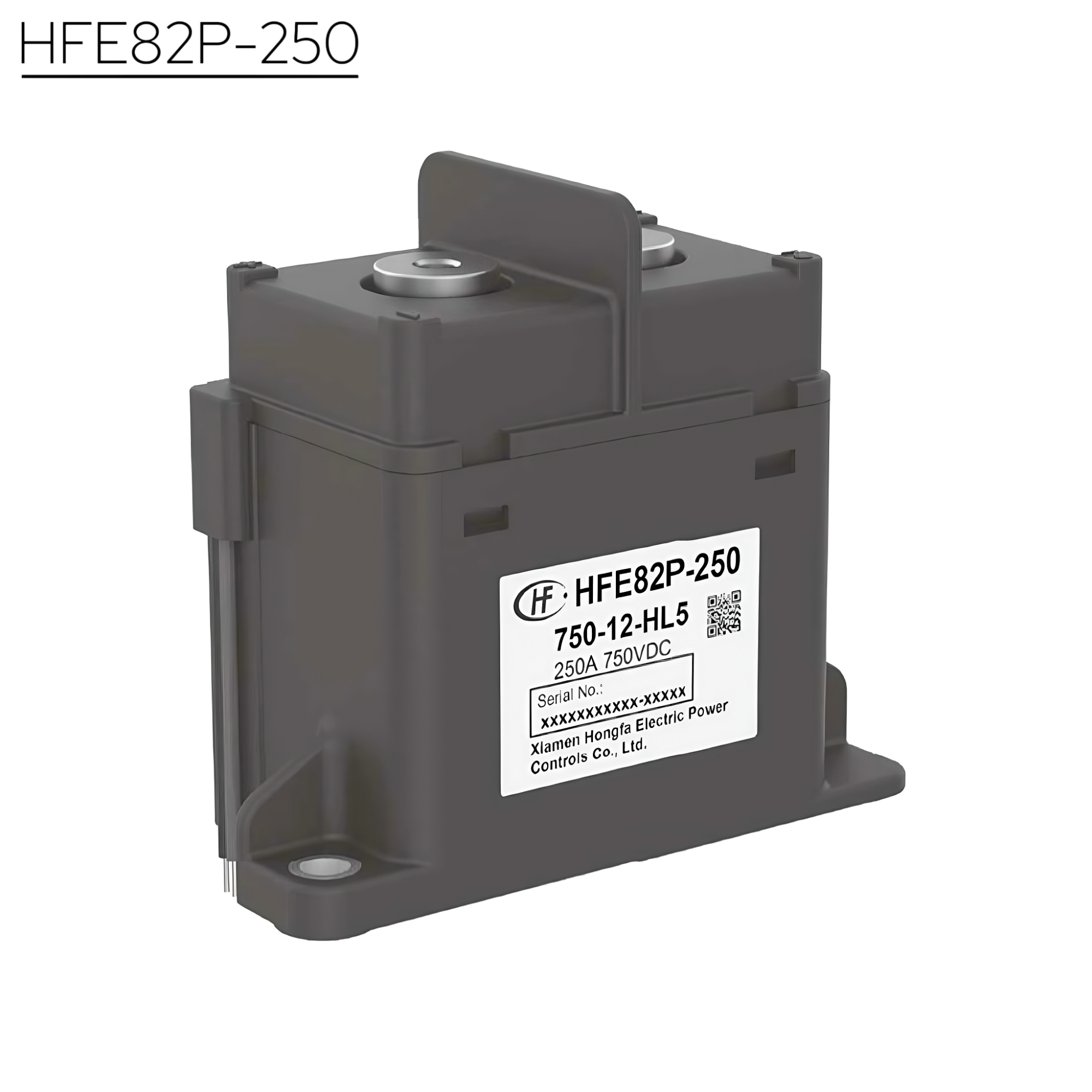

HFE82P-250

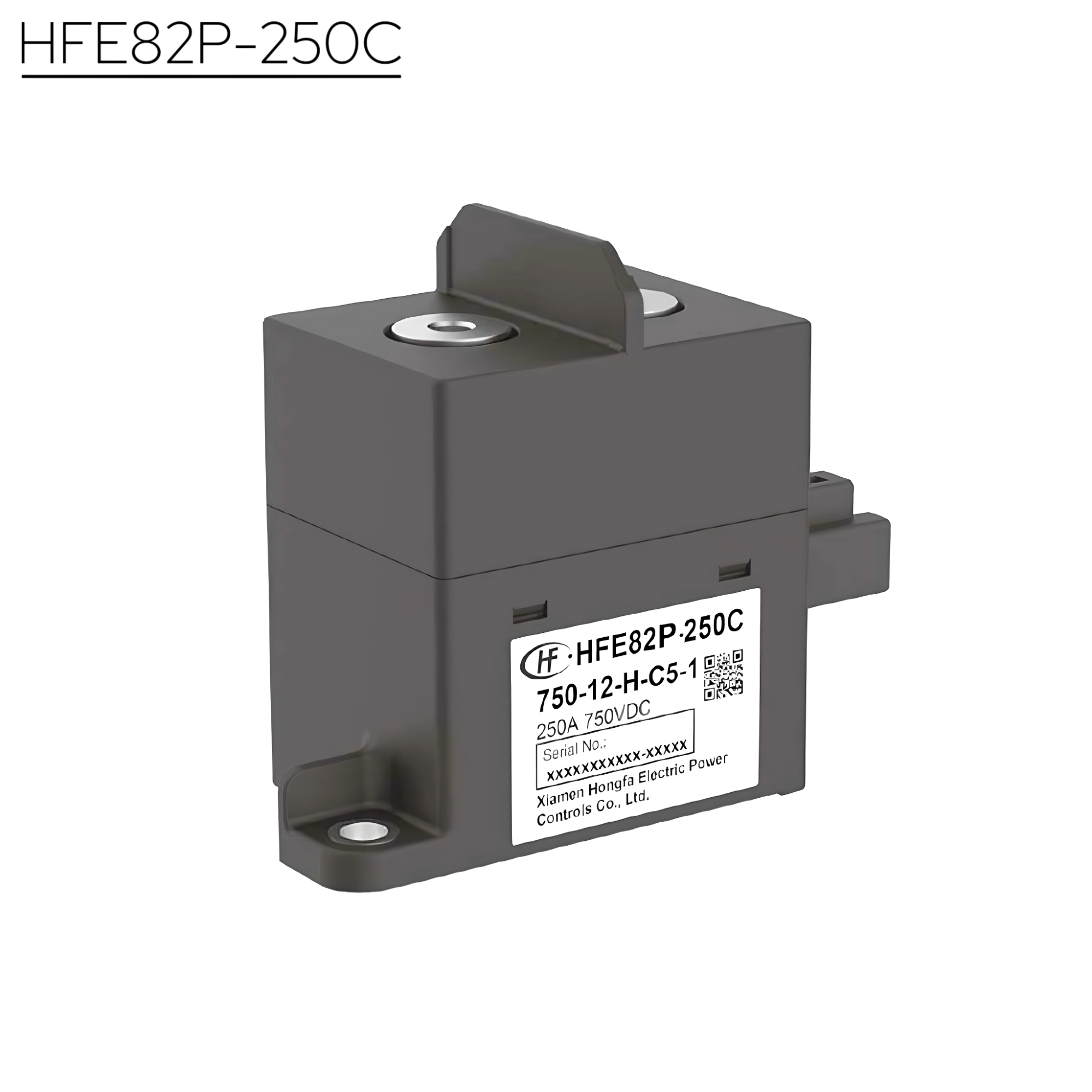

HFE82P-250C

Rated current

20A

60A

200A

250A

Rated voltage

DC12～1500V

Insulation voltage

≥100MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000 times

Electrical endurance

Making

15000ops
(1500VDC,40A)

Switching

10000ops
(1000VDC,15A)

6000ops
(600VDC,30A)

6000ops
(500VDC, 60A)

6000ops
(400VDC,150A)

15000ops
(1500VDC,40A)

6000ops
(1000VDC,60A)

Breaking

500ops
(500VDC, 250A)

Maximum breaking current

200A(1000VDC)1op

600A(450VDC)1op

2000A(450VDC)1op

1500A(750VDC)1op

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Withstand voltage

Between coil & contacts

4000VAC 1min

3600VAC 1min

4000VAC 1min

4000VAC 1min

2600VAC 1min

Between open contacts

4000VAC 1min

3000VAC 1min

3000VAC 1min

3000VAC 1min

2600VAC 1min

                            Rated control voltage Uc

Rated control voltage：DC12V/24V/48V
Pick-up voltage：≤75% Un

Max. switching power

1000V 20kW
 1500V 30kW

54Kw

180Kw

225Kw

250Kw

Max. switching voltage

1000VDC、1500VDC

1000VDC

750VDC

1000VDC

Workplace Temperature

（-40℃～+85℃）

Shock
resistance

Functional

196m/s2

Destructive

490m/s2
