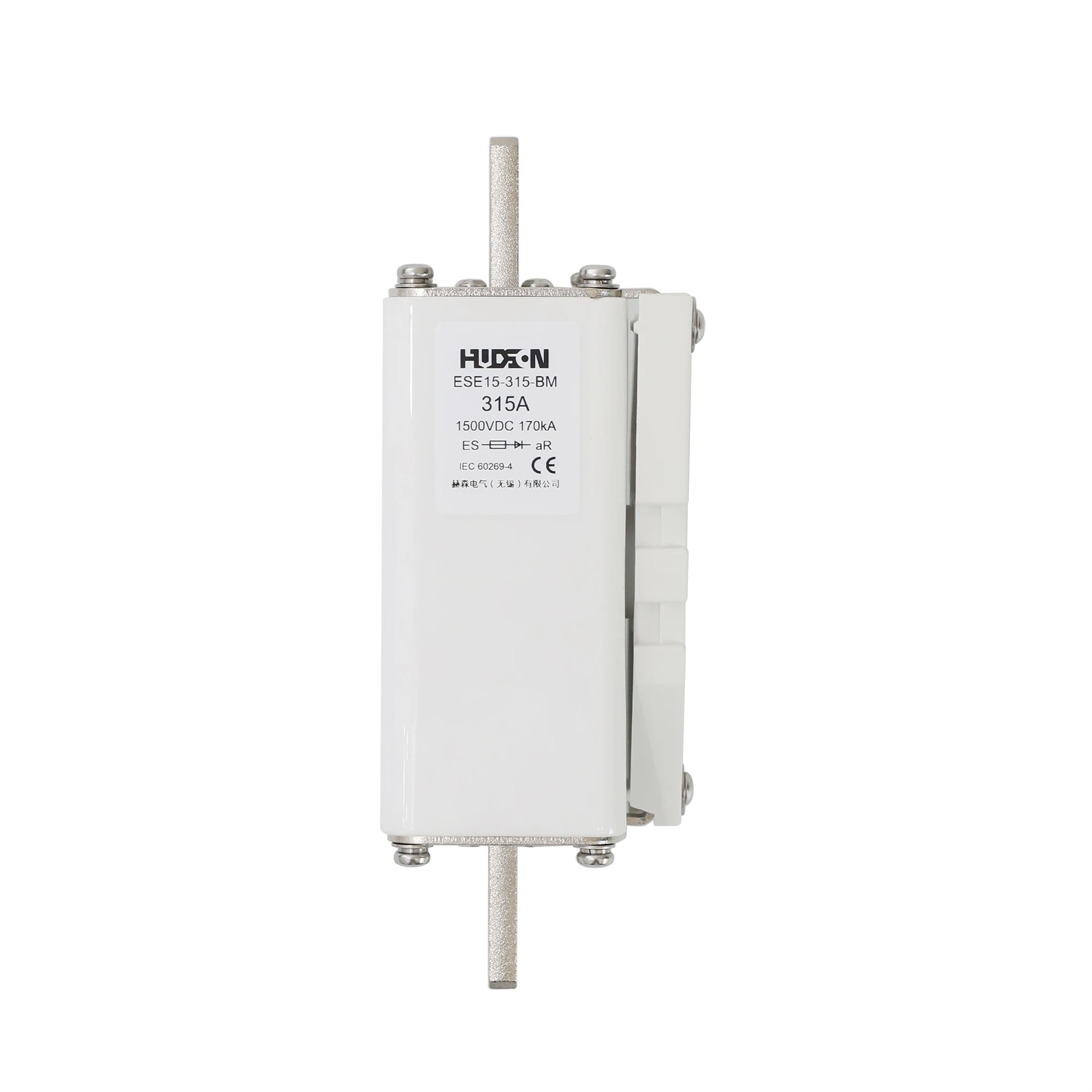

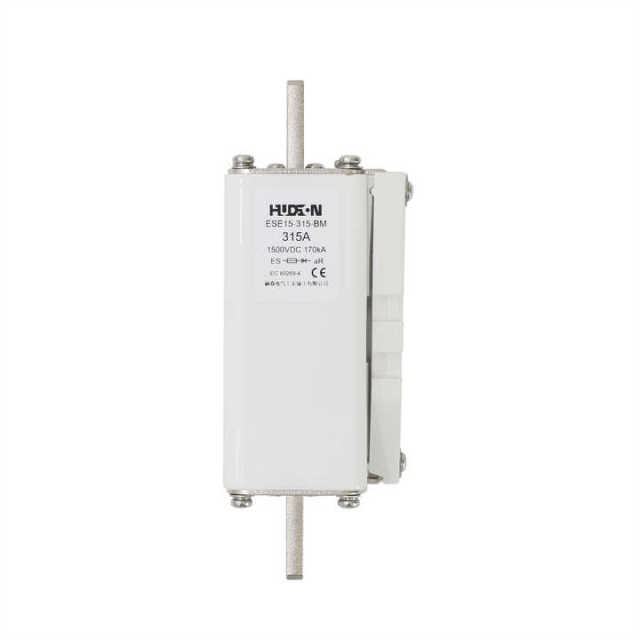

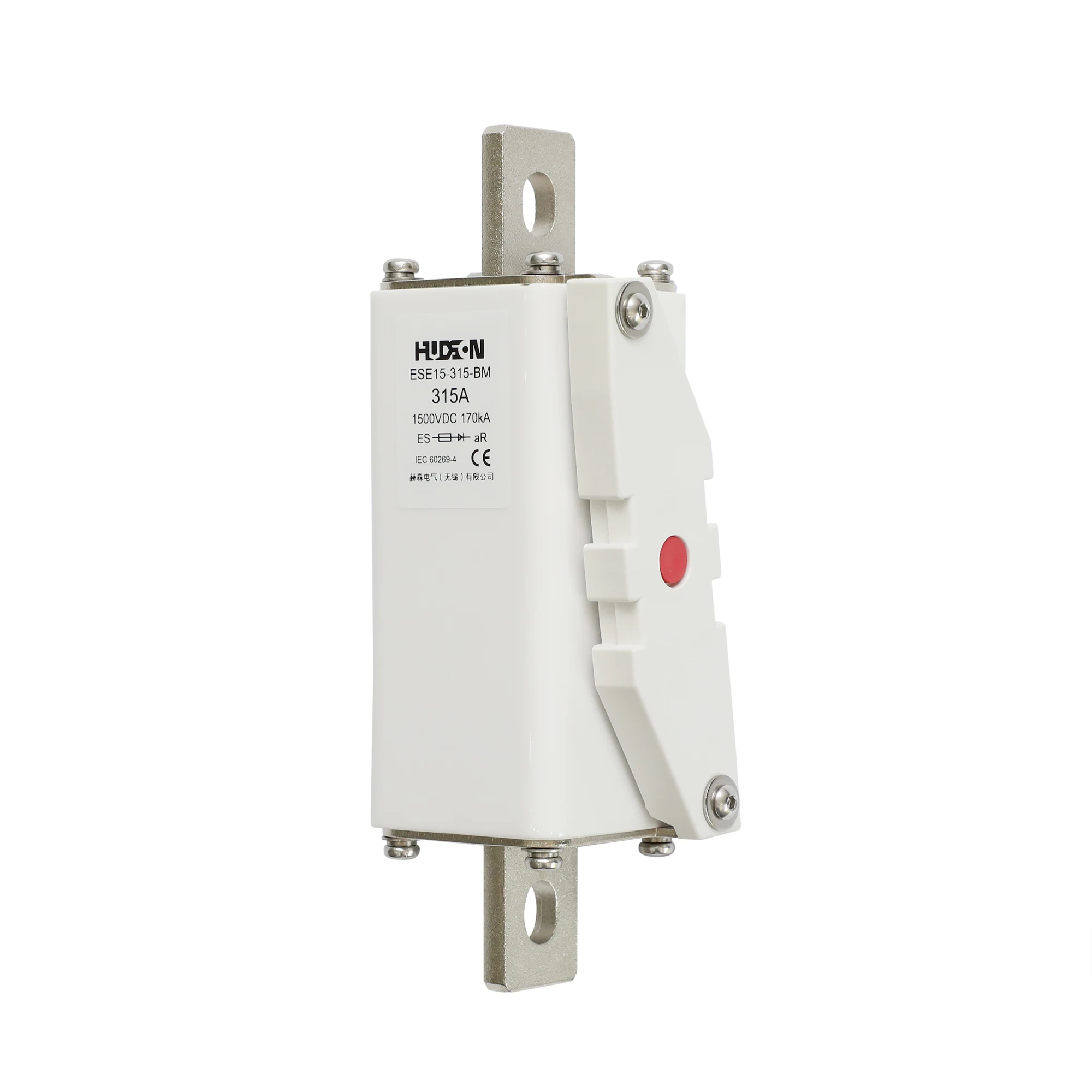

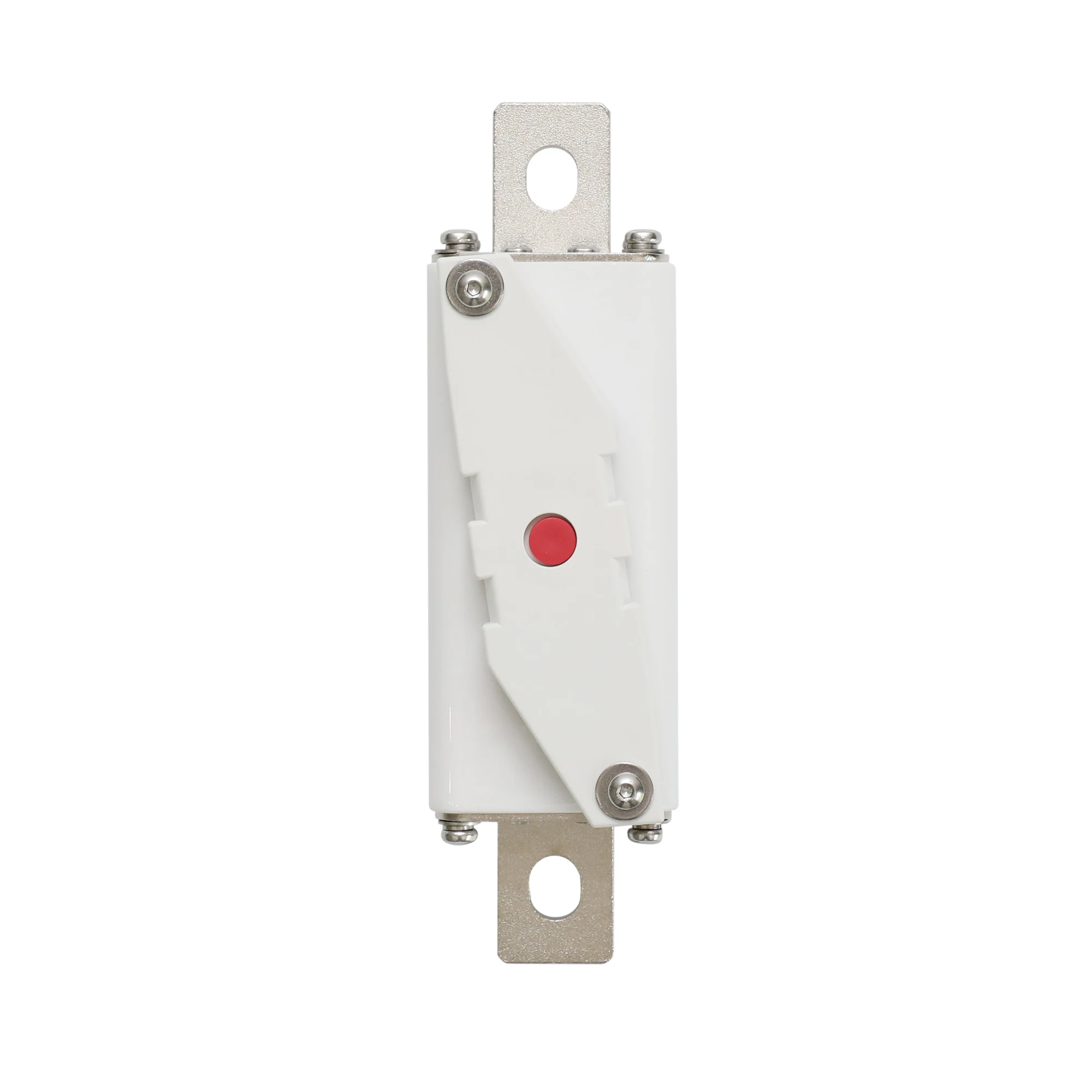

Name: Hudson Fuse ESE15-315-BM DC Fuses 1500V 100A High Voltage 150kA Breaking Capacity UL248-13 Certified Copper Ceramic for EV
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601615799293
Price: 15.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Breaking Capacity

High

Material

Brass With Nickel Plated, Copper, Ceramic, Metal, Plastic

Safety Standards

IEC

Type

DC Fuse

Place of Origin

Jiangsu, China

Model Number

ESE15-315-BM

Brand Name

Hudson FUSE

Fuse Indicator

Indicating

Lead Type

Radial, Axial, Surface Mount

Response Time

Fast Blow

Application

High Voltage

Rated voltage

DC1500V

Rated current A

100A 125A 500A

Size code

Power consumption W

Breaking capacity

150kA

Performance reference

UL248-13

certification

lEC60269-7/GB/T13539.4

Packaging and delivery

Selling Units

Single item

Single package size

10X5X6 cm

Single gross weight

0.900 kg

Product descriptions from the supplier

Product Description

Item	DC	Amp	Breaking capacity	W Powerloss
ESE15-100-BM	1500V	100A	150kA	20
ESE15-125-BM	1500V	125A	150kA	21.5
ESE15-160-BM	1500V	160A	150kA	26
ESE15-200-BM	1500V	200A	150kA	32
ESE15-250-BM	1500V	250A	150kA	39
ESE15-315-BM	1500V	315A	150kA	58
ESE15-350-BM	1500V	350A	150kA	68
ESE15-400-BM	1500V	400A	150kA	80
ESE15-450-BM	1500V	450A	150kA	96
ESE15-500-BM	1500V	500A	150kA	112

This series of DC fuses are small in size, light in weight, high-precision resistance value,ltican be flexibly used in parallel in the loop to form a wider curent level. With low powerconsumption, high breaking capacity,ultra-fast interruption of hazardous currents.ishort-circuit currents, etc. lt can be applied to the protection of power systems such as ship,propulsion, rail transit traction, heavy truck battery packs, energy storage power stations and,other fields and their rectification, frequency conversion, lGBT and other componentsComply with Standard lEC60269-7/GB/T13539.4/UL248-

13Protection category: aR.

Rated Volt: DC1500V

Rated Current: 100A-500A

Rated breaking capacity: See the below table
