Items
|
Value
|
|
Model
|

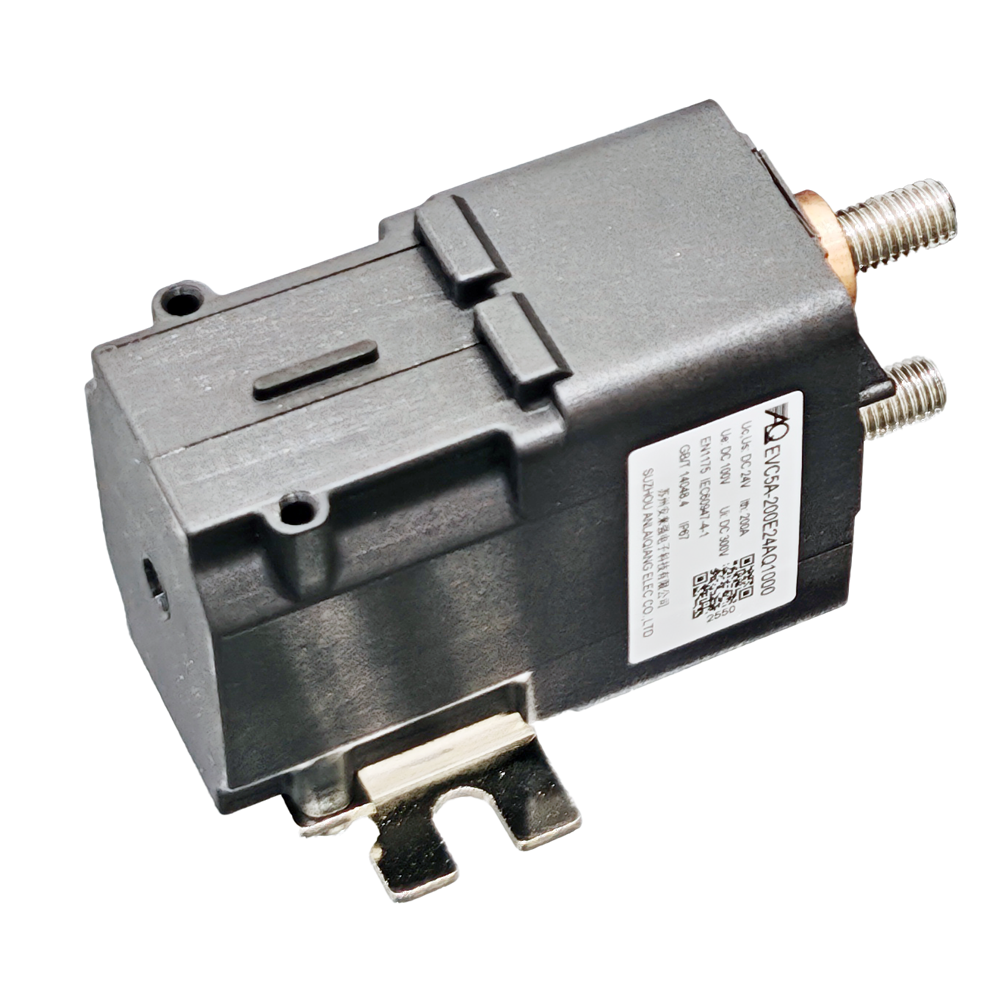

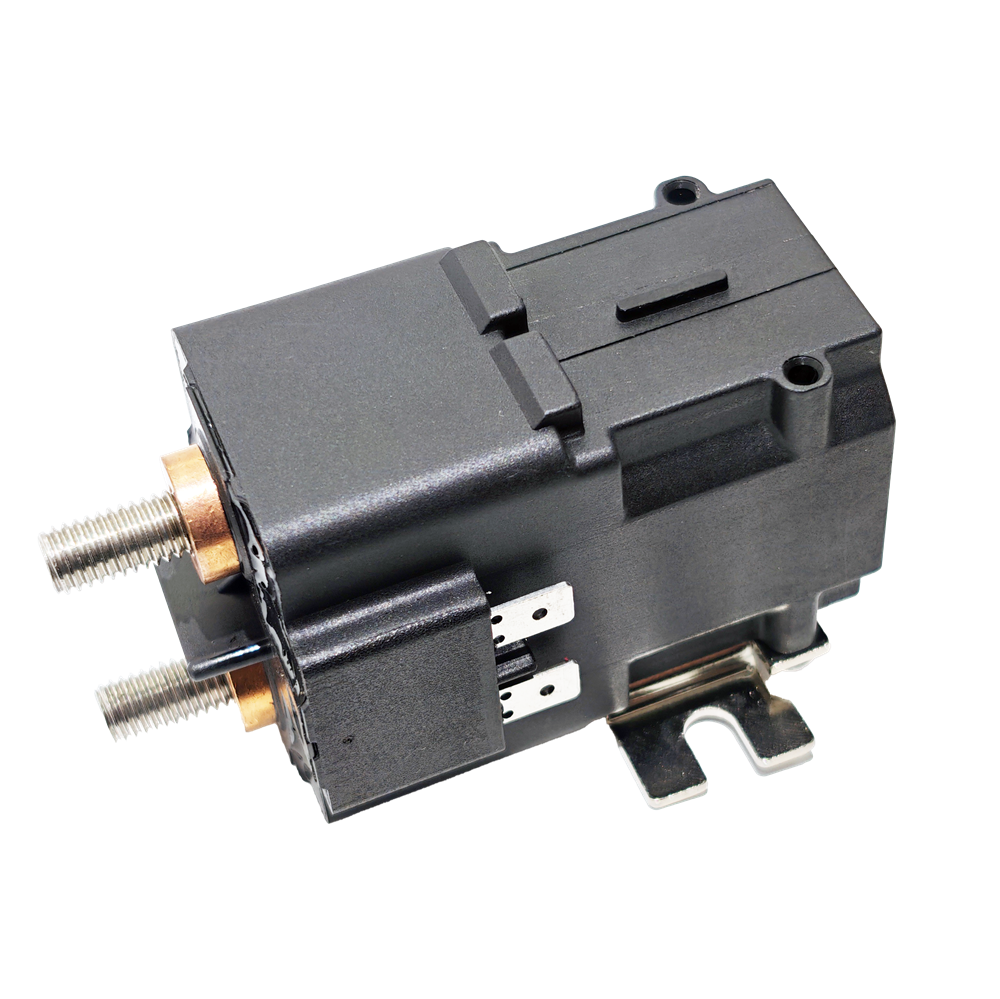

EVC5A
|
|
Contact Polar
|
Without polarity
|
|
Rated Operating Voltage
|
500VDC
|
|
Max. Continuous Current
|
200A
|
|
Max. Cut-off Current
|
2000A,1 Cycle@80VDC
|
|
Contact Arrangement
|
SPST-NO-DM
|
|
Auxiliary Contact
|
SPST-NO /
SPST-NC /
None
|
|
Coil Rated Voltage
|
12VDC
24VDC
48VDC
|
|
Initial Contact Resistance
|
Max: 30mΩ
Typical:1mΩ
|
|
Mechanical Life
|
200000
|
|
Electrical Life(Resistive load, Break)
|
DC80V 6000cycles@200A
DC100V 4000cycles@200A
DC200V 800cycles@100A
DC500V 200cycles@100A
|
|
Shock
|
10G Peak, 11ms 1/2 Sine wave
|
|
Vibration
|
10G Peak, 80~2000Hz, Sine wave
|
|
Operating Ambient Temperature Range
|
-40℃~+85℃
|
|
Ambient Humidity
|
5%~95%RH
|
|
Altitude
|
≤4000m
|
|

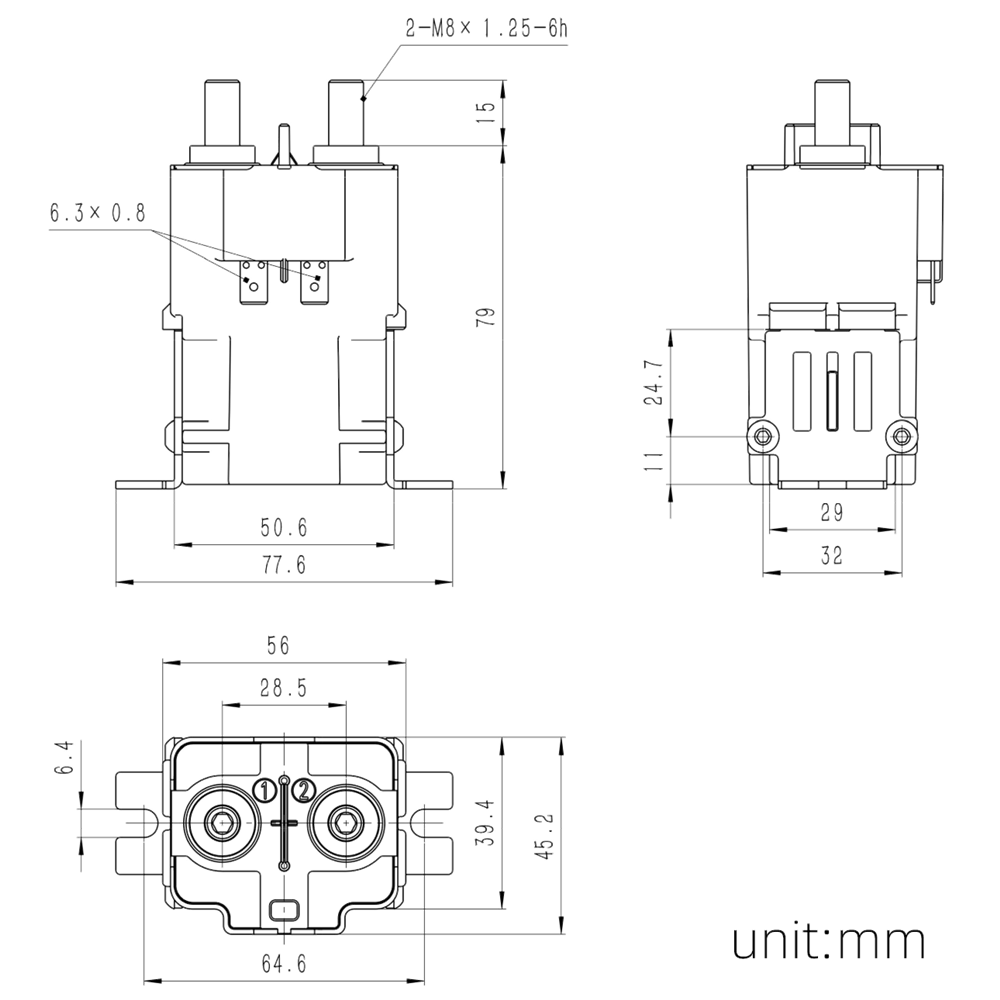

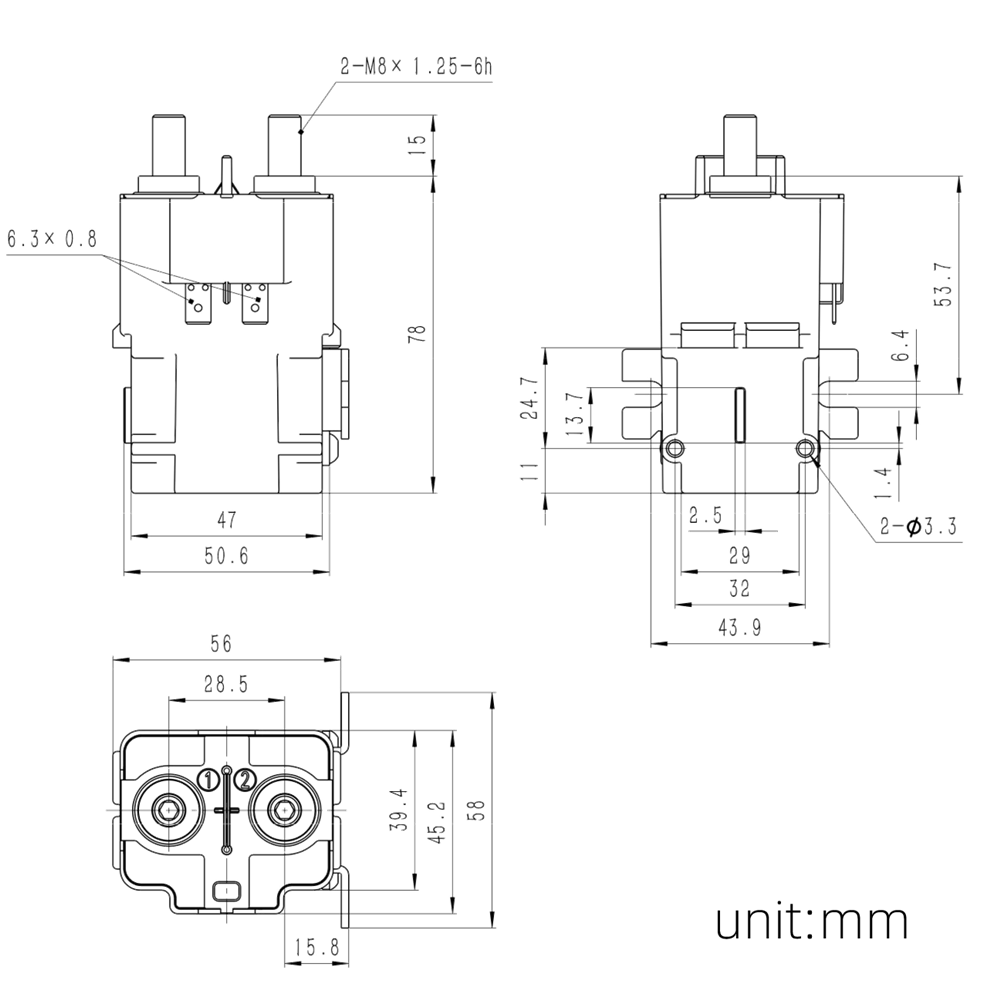

Size
|
56*45*93mm
|
|
Install Hole Distance
|
Side:43.9mm
Bottom:64.6mm
|
|
Weight
|
250g
|
