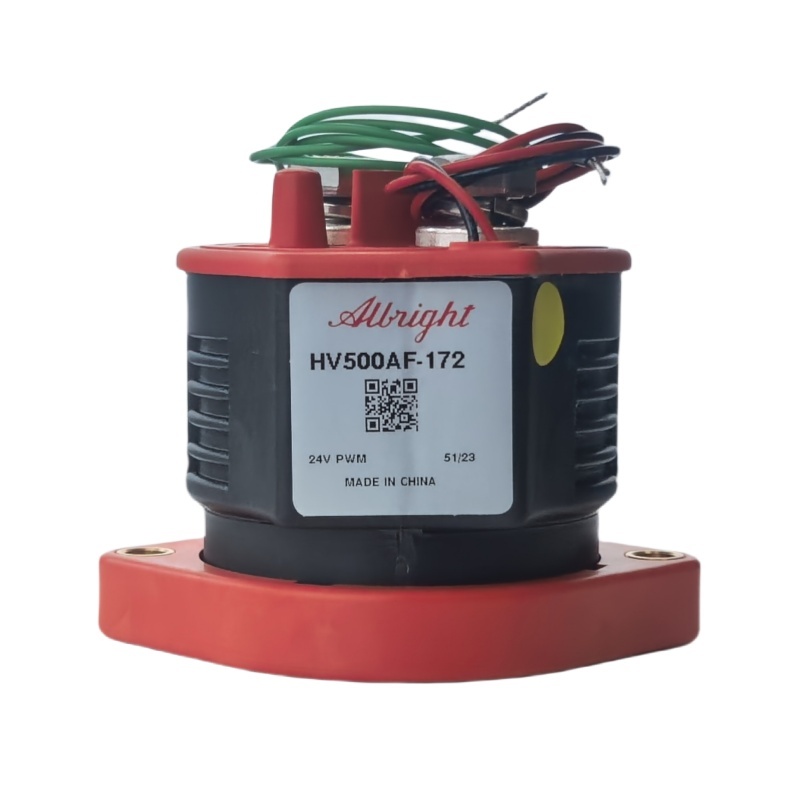

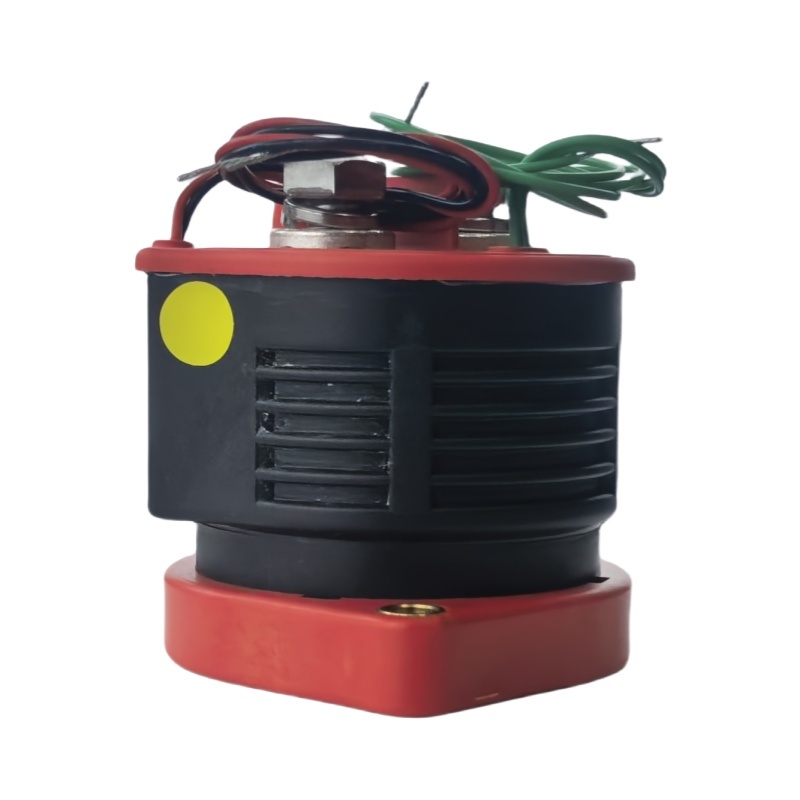

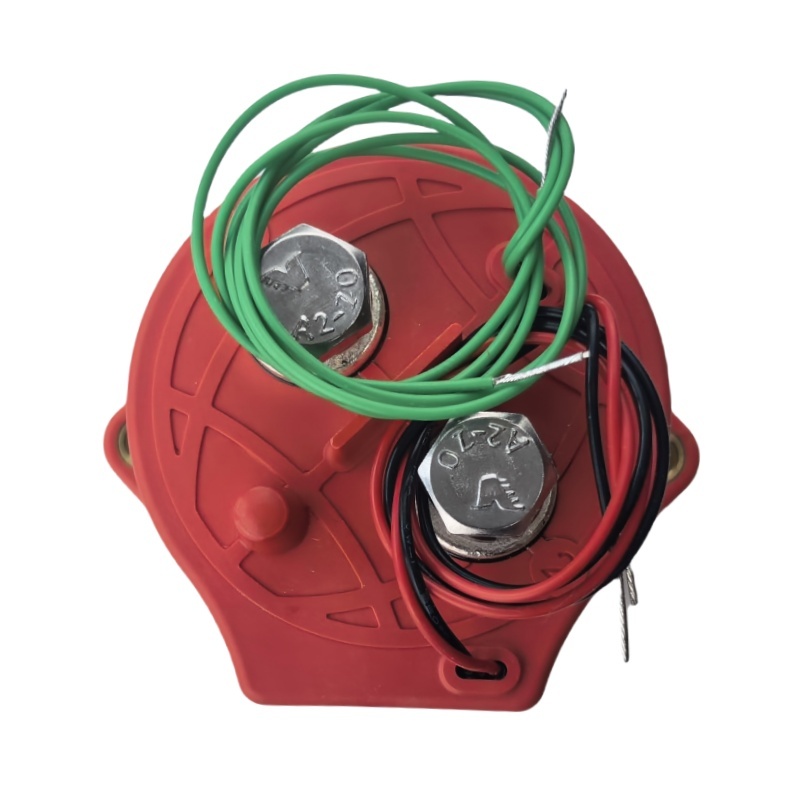

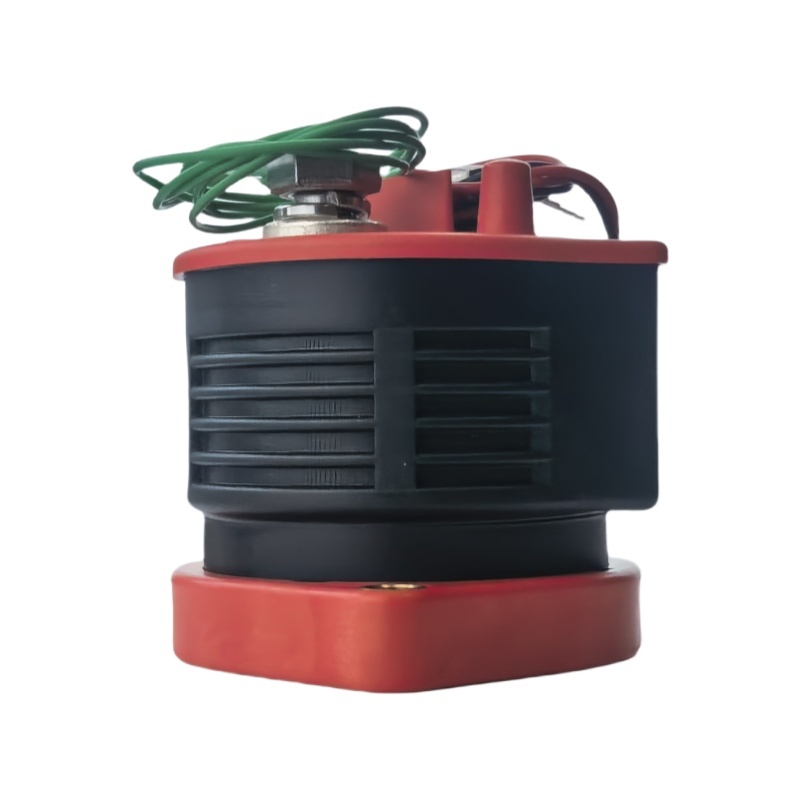

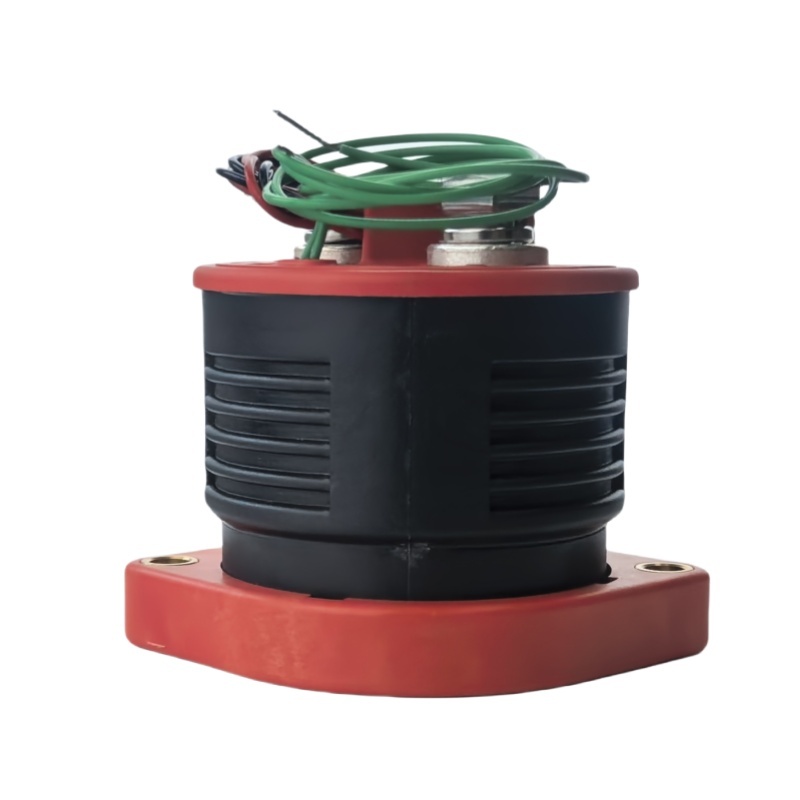

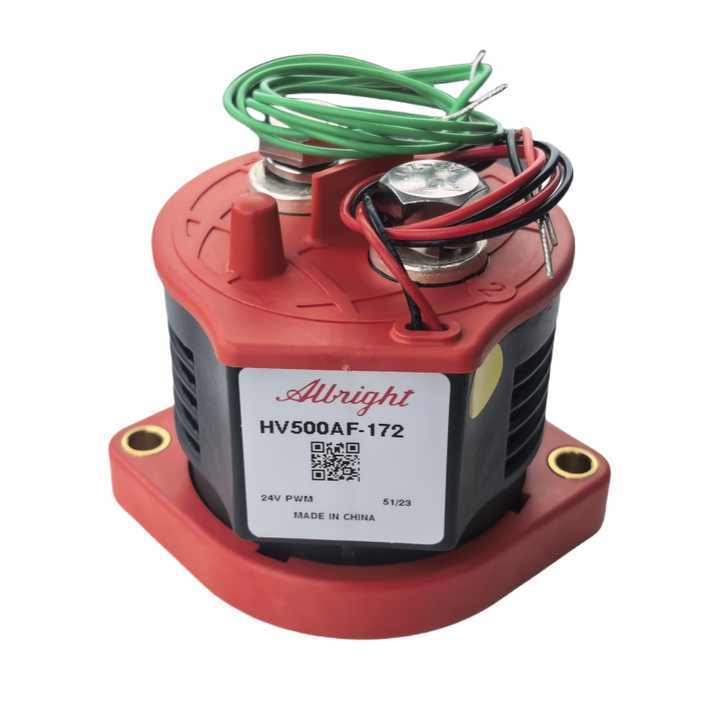

Product Name
|
HV500AF-23
|
|
Rated Contact Voltage
|
12V - 1000V D.C.
|
|
Continuous Operating Current
|
250A (50mm2 or 1-1/0 AWG cables)
|
|
Continuous Operating Current (Max)
|
500A (190mm2 or 350 MCM busbars)
|
|
Coil Voltage Range
|
12V D.C. - 96V D.C.
|
|
Contact Arrangement:
|
|
|
Main
|
SPST-NO
|
|
Auxiliary
|
SPST-NO
|
|
SPST-NC
|
|
|
SPST-NC Mirror
|
|
|
Mechanical Durability
|
>1000000 Cycles
|
|
Auxiliar
|
>1000000 Cycles
|
|
Voltage Drop
|
Typically <30mV at 100A
|
|
Insulation Resistance
|
>200M
|
|
Dielectric Withstand Test (at Sea
Level) |
4000V D.C./Leakage <1mA
|
|
Maximum Altitude
|
3000m
|
|
Environmental Seal
|
Contacts, Auxiliary and PWM Circuit
Hermetically Sealed - Exceeds IP67
|
