Name: Super Capacitor 5000F 2.7V backup power supply
Brand: Beian New Energy Co., Ltd.~Green Power Solution Provider

Super Capacitor 5000F 2.7V backup power supply
Product Description

Modle	BA-2R7-J508UMJ70
3000Rate discharge Cap.( ΔV＝2.4V-1.5V)	5000F
Cap. Tolerance(25℃)	0%~+20%
Rated Voltage(V)	2.7
Surge voltage(V)	2.85
Internal Resistance ESRDC (mΩ)	0.25
Max continuous current( △T=15℃）（A）	160
Max Current（1s,A) (25℃)	2900
Leakage Current at 72h (25℃)	8.5mA
Operating Temp.(Top)	-40~+65℃
Storage temperature range (at 0V)	-40~+70℃
Weight m	535
Energy Density (at U0)	9.46
Power Density (at U0)	13.6

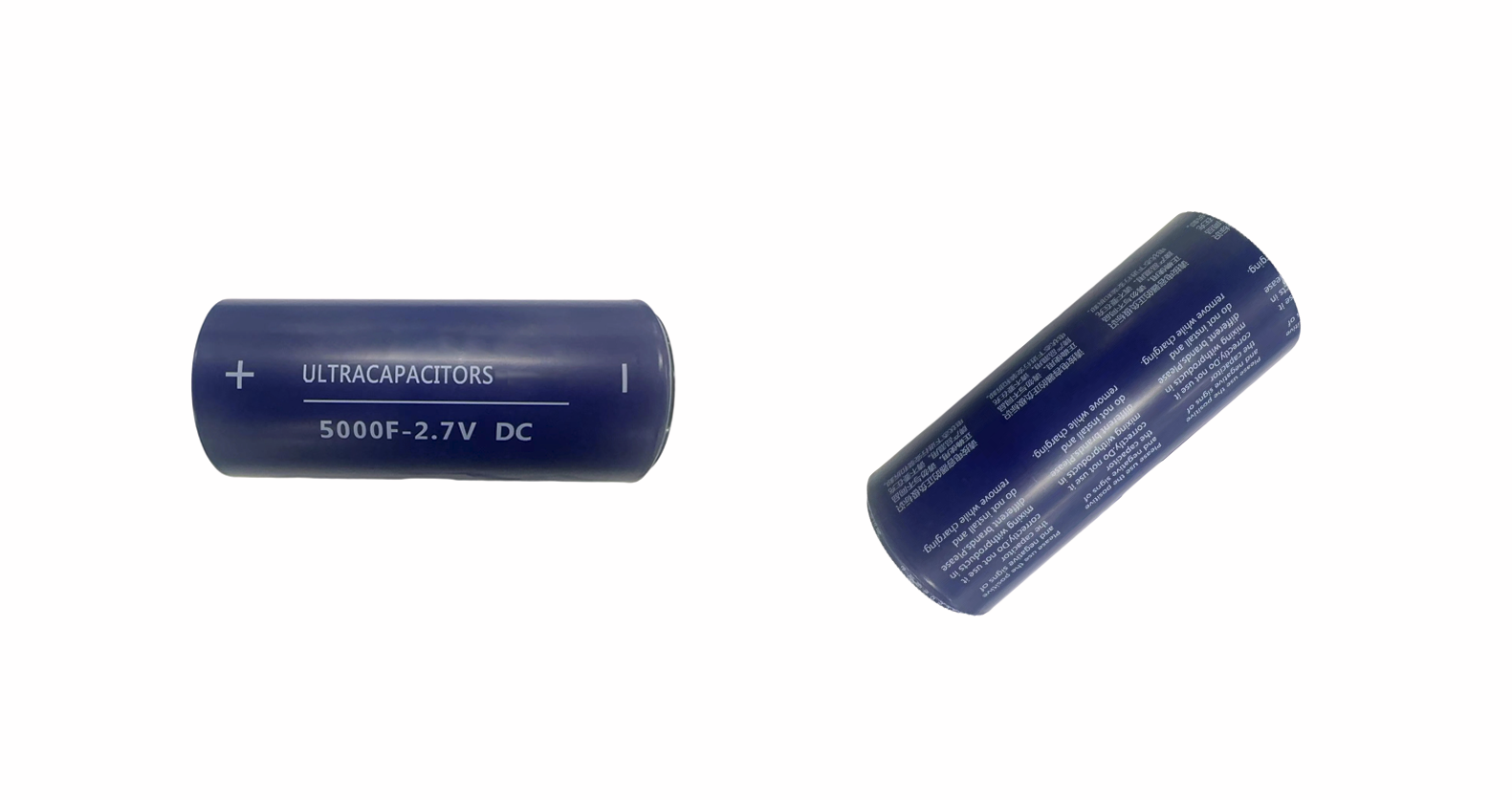

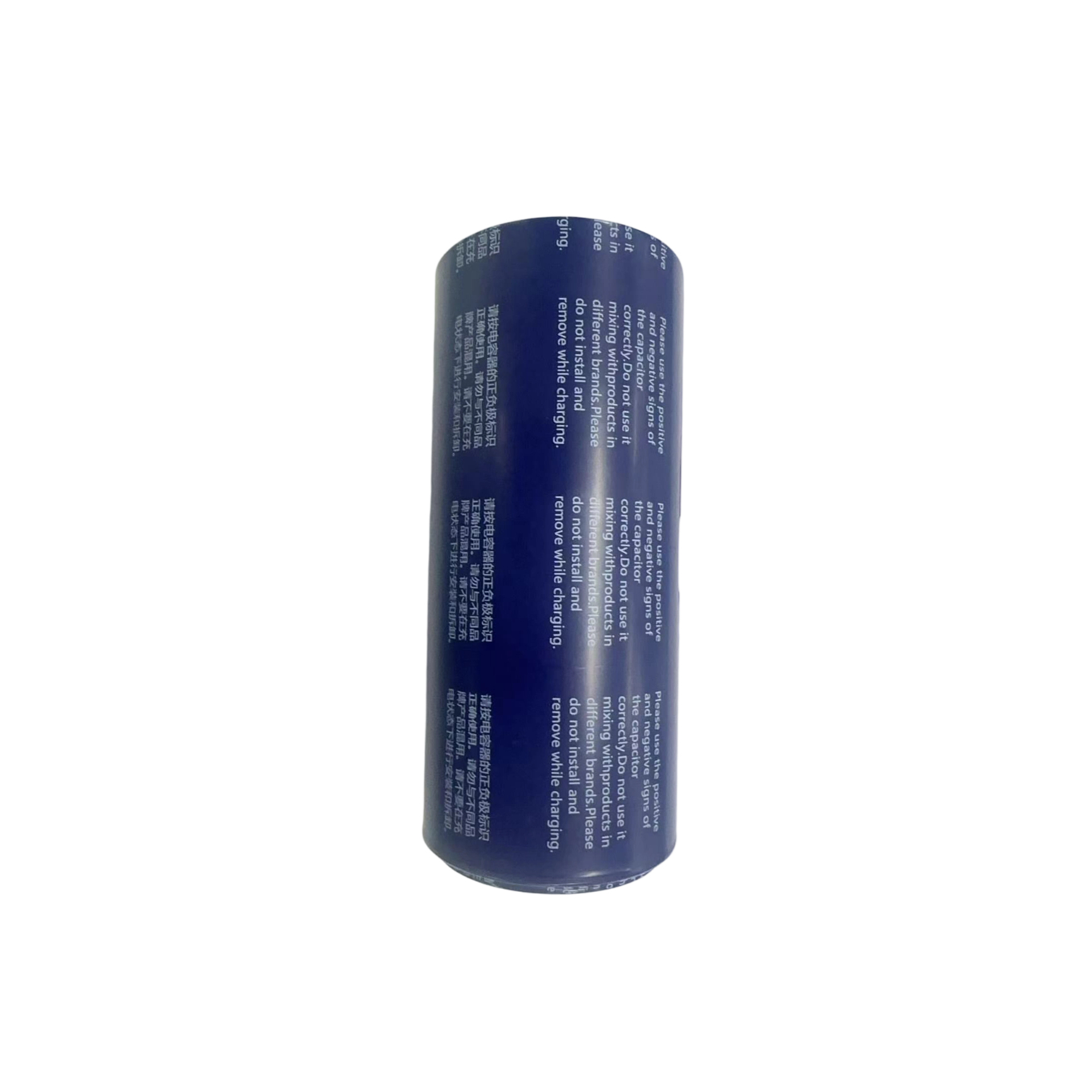

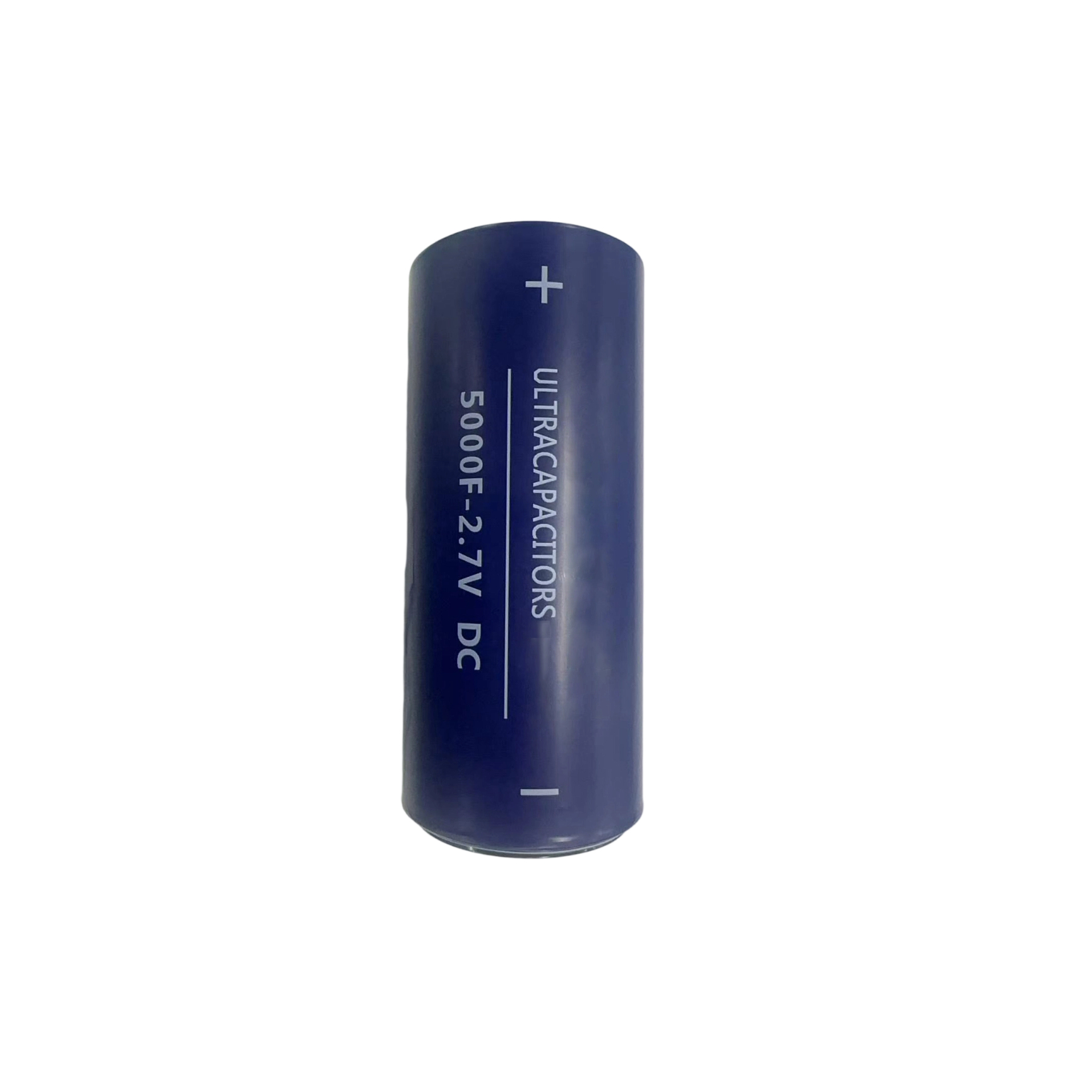

Product Picture

Products Advantages

Wide Operating Temperature Range
Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT)
series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments,
making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.

Long Cycle Life

Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional
supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge
cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.

Excellent Charge-Discharge Characteristics

They support instantaneous high-current charge and discharge, featuring fast charging speed and short
charge-discharge time. They have simple requirements for charging circuits and no memory effect.

Stable Electrical Performance

Certain series (e.g., HP series) feature low internal

resistance and can achieve instantaneous high-current output; the HE series has low leakage current,
suitable for long-term low-current discharge; the 3V series is adapted for long-term stable operation
under high-voltage conditions.

Product Applications

package
